STBVP6-RB1E02 Banner Sensor Accessories

Name: STBVP6-RB1E02
Brand: Banner
Price: 692 USD
Availability: BackOrder

Part#:STBVP6-RB1E02

Alt. Part#:77806

Manufacturer:Banner

Category:Sensor Accessories

Product Lifecycle:Active

Product description

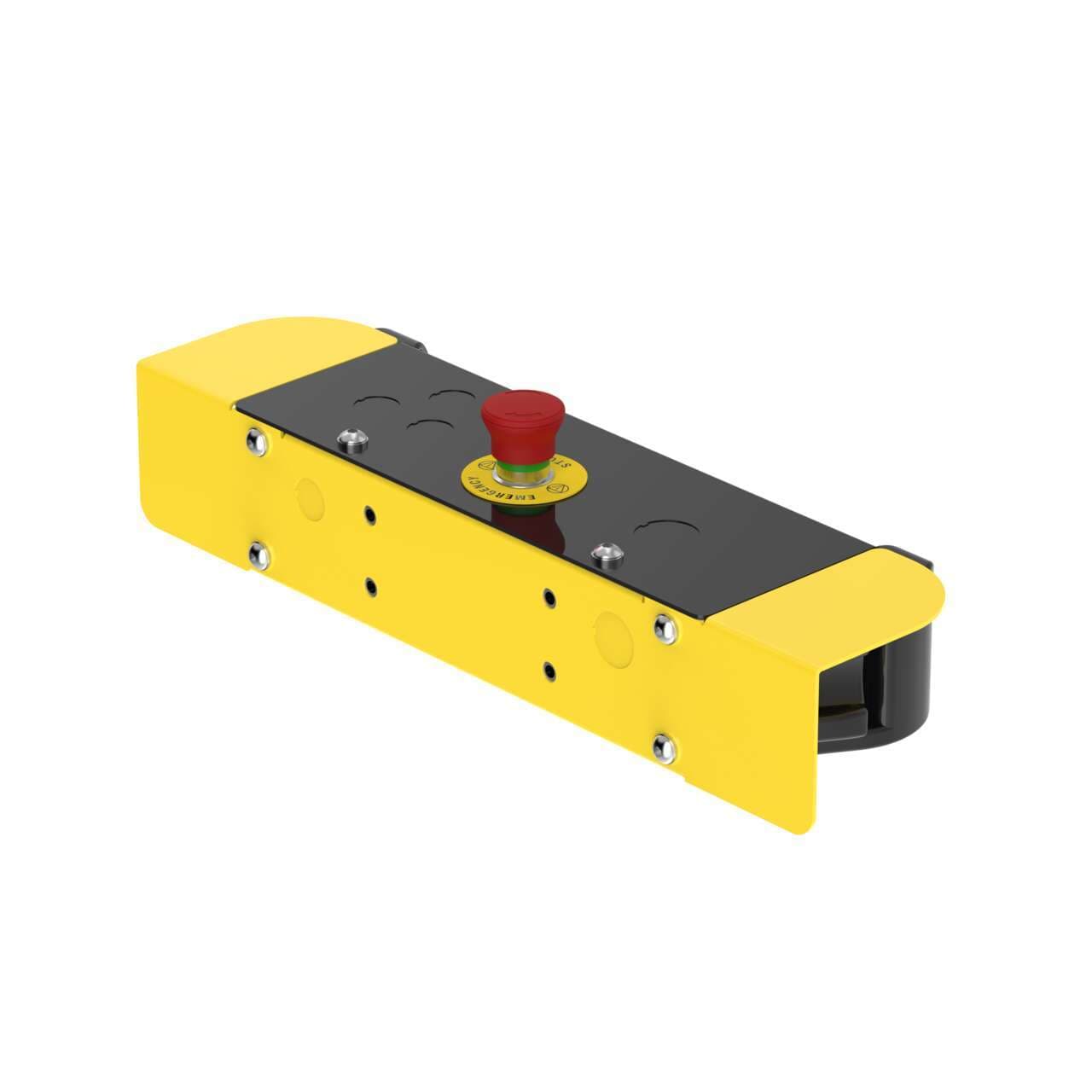

STBVP6 Self-Checking Touch Button with IP20 Run Bar and E-STOP

Product Details

Weight
4173.0464 g
Country Of Origin
IT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of STBVP6-RB1E02 on Powermatic Associates is $692.00. Order now.

About the product

Banner Engineering STBVP6-RB1E02 is a control station designed for two-hand operation, part of the DUO-TOUCH series. It features two safety touch buttons and an emergency stop push button, all housed in a durable metal construction. The control station is designed for screw-clamp terminal connections and comes in a black and yellow housing with a red mushroom button. It operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. The STBVP6-RB1E02 can be mounted on a pedestal or base and is suitable for operation in ambient air temperatures ranging from 0 to +50 degrees Celsius. It offers an IP20 degree of protection and includes two digital outputs (10-30Vdc; PNP; complementary; 150mA) for enhanced functionality. The buttons are saddle/yoke-shaped for ease of use.

STBVP6-RB1E02 Related Documents

131634.pdf
