SSA-EB1PLYR-12ECQ8-WC Banner Emergency Stop Push Buttons

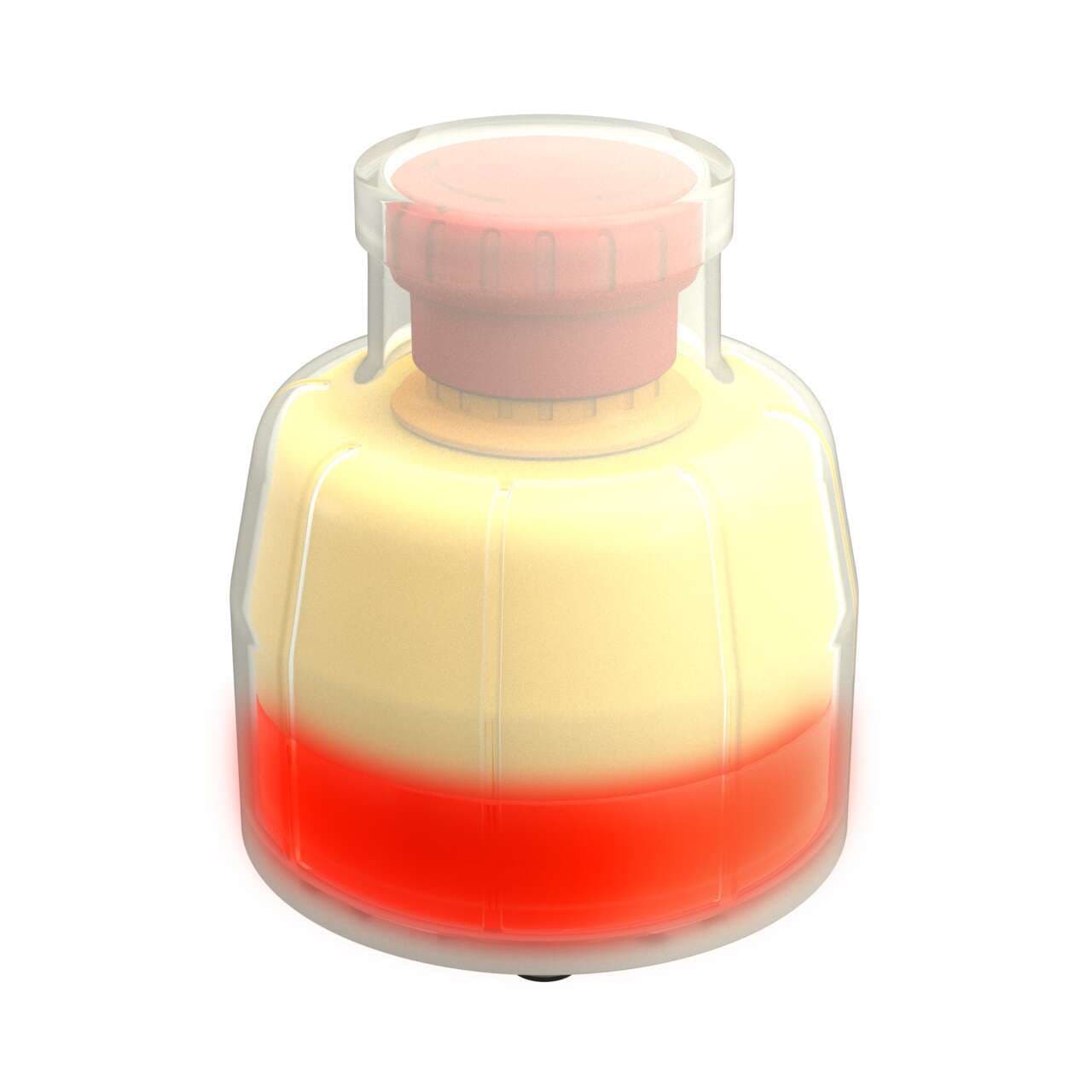

Banner SSA-EB1PLYR-12ECQ8-WC SSA-EB1 30 mm Mount Emergency Stop Push Button; Yellow and Red Solid/Flashing illuminated Base; 40 mm Actuator; IP69K; Contacts: 2NC/1NO-PNP; 8-pin M12 Integral QD; Includes SSA-EB1P-ECWC Washdown Cover
Banner

Part#:SSA-EB1PLYR-12ECQ8-WC

Manufacturer:Banner

Alt. Part#:800033

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 30 mm Mount Emergency Stop Push Button; Yellow and Red Solid/Flashing illuminated Base; 40 mm Actuator; IP69K; Contacts: 2NC/1NO-PNP; 8-pin M12 Integral QD; Includes SSA-EB1P-ECWC Washdown Cover

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLYR-12ECQ8-WC Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    362.8736 g
  • Country Of Origin
    JP
  • Max Operating Temperature ( °C)
    55
  • Button Diameter (mm)
    40
  • Actuator/Button Material
    Thermoplastic
  • Stop Signal Color ( Solid)
    Red
  • Min Operating Temperature ( °C)
    -25
  • Contact Rating
    2 A @ 24 V dc
  • Dimensions (HxWxD mm )
    120 x 80
  • Contact Quantity
    2 NC, 1 NO
  • Mounting Thread/Style
    30 mm
  • Feature: Lockable
    No
  • Actuation
    Twist/Pull-to-Release
  • In-Series Diagnostics
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Illuminated
    Yes
  • Button Shroud
    No
  • Device Type
    Push Button
  • Primary Housing Material
    Polycarbonate
  • IP Rating
    IP65, IP67, IP69
  • Housing Style
    Base
  • Illumination Type
    Base
  • Armed Color (Solid)
    Yellow
  • Actuated Color
    Red - Flash
  • Connection Type
    M12 (Euro)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLYR-12ECQ8-WC Description

Banner Engineering SSA-EB1PLYR-12ECQ8-WC is an enclosed illuminated emergency STOP (E-Stop) pushbutton featuring a solid yellow (ARMED) or flashing red (button pushed ON) illuminated base with a washdown cover and LED illumination. It is constructed with a polycarbonate housing and has a 40mm mushroom head. This push-button is pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. The housing is yellow, and the actuator is red. It includes 1NO+2NC contacts for circuit integration and operates with a 24Vdc supply voltage. Designed for surface or base mounting with an M30 thread, it can operate in ambient air temperatures ranging from -25°C to +55°C. The SSA-EB1PLYR-12ECQ8-WC offers a degree of protection rated at IP65, IP67, and IP69K. Its operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism. It also features 1 NO and 2 NC auxiliary contacts for additional circuit integration.

Related documents SSA-EB1PLYR-12ECQ8-WC Specs

SSA-EB1PLYR-12ECQ8-WC 162754.pdf
