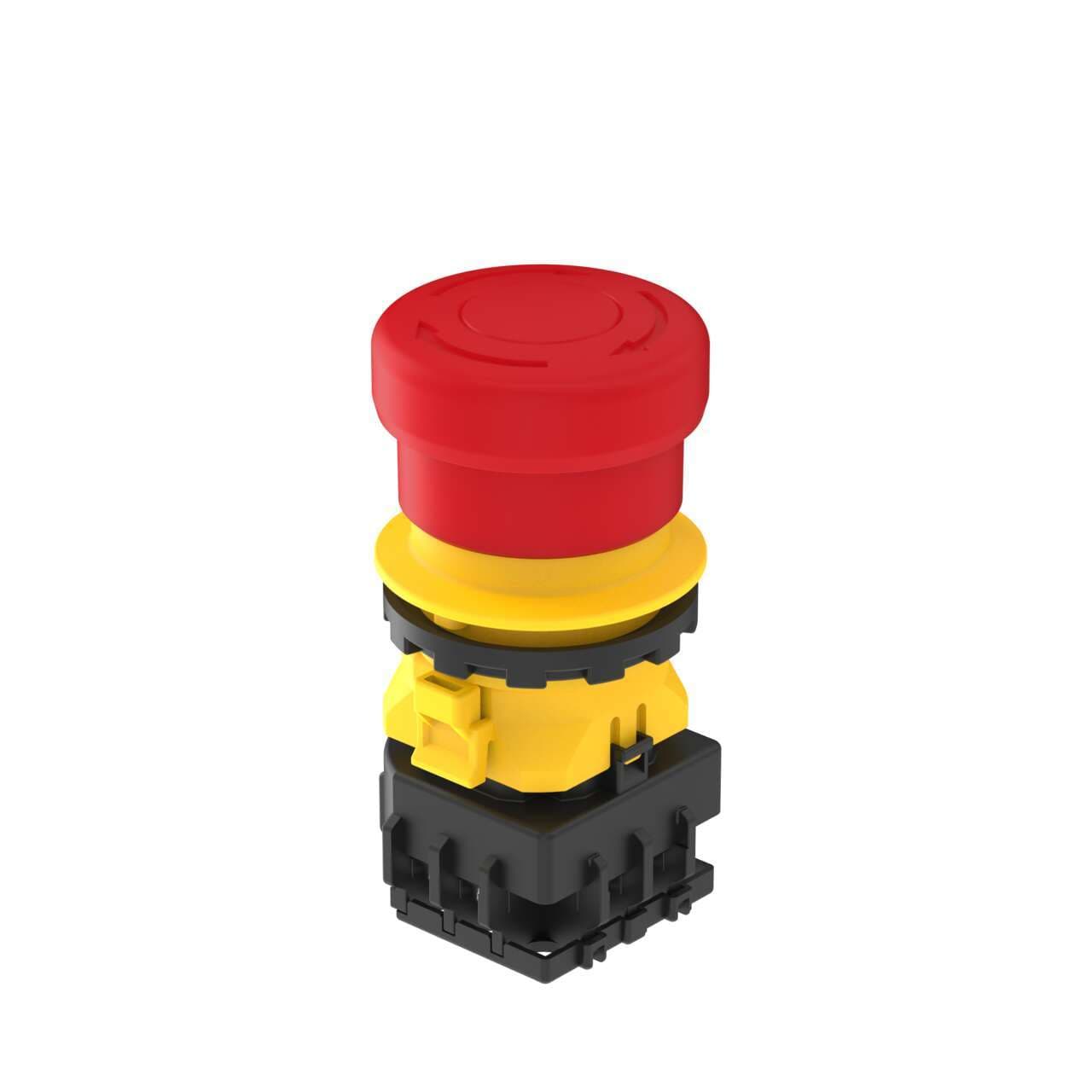

SSA-EB1PL1-11 Banner Emergency Stop Push Buttons

Name: SSA-EB1PL1-11
Brand: Banner
Price: 73 USD
Availability: BackOrder

Part#:SSA-EB1PL1-11

Manufacturer:Banner

Alt. Part#:42205

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 Panel-mount Emergency Stop Push Button; Illuminated 40 mm Actuator; Contacts: 1NC/1NO; Screw Terminals; 30 mm mounting hole

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PL1-11 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
84.0959568 g
Country Of Origin
JP
Dimensions (HxWxD mm )
81 x 37 x 40
Min Operating Temperature ( °C)
-25
Max Operating Temperature ( °C)
55
Actuator/Button Material
Thermoplastic
Button Diameter (mm)
40
Contact Rating
2 A @ 24 V dc
Mounting Thread/Style
Panel
Actuation
Twist/Pull-to-Release
Contact Quantity
1 NC, 1 NO
Feature: Lockable
No
Feature: Illuminated
Yes
Primary Housing Material
Polycarbonate
Device Type
Push Button
Illumination Type
Button
IP Rating
IP65
Housing Style
Base
Actuated Color
Red or OFF
Armed Color (Solid)
OFF or Red

Button Shroud

Connection Type

Screw Terminal

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PL1-11 Description

Banner Engineering SSA-EB1PL1-11 is a stand-alone illuminated emergency STOP (E-Stop) push-button featuring LED illumination for clear visibility. It is constructed with a polycarbonate (PC) base and has a 40mm mushroom head for easy activation. The connection is facilitated through a screw-clamp terminal connection. This push-button comes in red for the actuator to signify its emergency function. It includes 1NO+1NC contacts for integration into safety circuits, operates with a 24Vdc supply voltage, and is designed for flush mounting in a 30mm hole. The SSA-EB1PL1-11 operates in a push-to-stop stay-put (maintained / latched) and twist-to-release mode, ensuring secure operation. It has an ambient air temperature range for operation from -25°C to +55°C and offers a degree of protection rated at IP65, making it suitable for various industrial environments. The device also features 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts for enhanced functionality.
