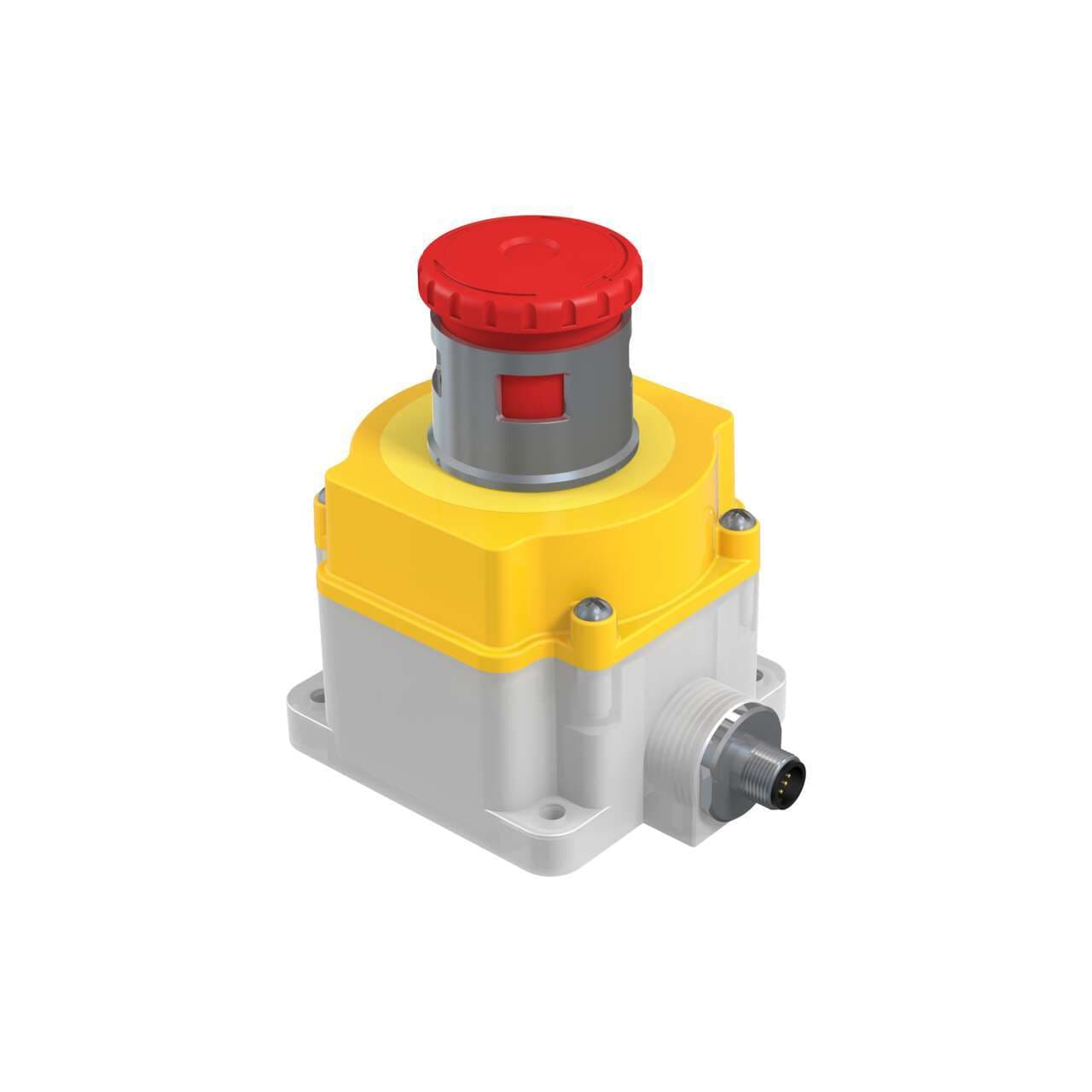

SSA-EB1MLYRP-12ED1Q8 Banner Emergency Stop Push Buttons

Name: SSA-EB1MLYRP-12ED1Q8
Brand: Banner
Price: 314 USD
Availability: BackOrder

SSA-EB1MLYRP-12ED1Q8 on Powermatic Associates

Part#:SSA-EB1MLYRP-12ED1Q8

Manufacturer:Banner

Alt. Part#:29995

Product Lifecycle:Active

Get a quick Quote!

Emergency Stop: Flush Mounting 44 mm Lockable Push Button; Environ. Rating: IP65; Lighted; Color: Yellow, Red Solid/Flashing; 2 N.C. Safety Contacts; 1 N.O. aux. Contacts; 8-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1MLYRP-12ED1Q8 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
453.592 g
Country Of Origin
JP
Feature: Quick Disconnect
Yes
Max Operating Temperature ( °C)
55
Button Diameter (mm)
44
Actuator/Button Material
Thermoplastic
Contact Rating
2 A @ 24 V dc
Stop Signal Color ( Solid)
Red
Mounting Thread/Style
Flat
Min Operating Temperature ( °C)
-25
Contact Quantity
2 NC, 1 NO
Dimensions (HxWxD mm )
113 x 110 x 81
Actuation
Twist-to-Release
Feature: Lockable
Yes
Feature: Illuminated
Yes
In-Series Diagnostics
No
Housing Style
Base
Primary Housing Material
Polycarbonate
Device Type
Push Button
Illumination Type
Base

IP Rating

IP65

Connection Type

M12 (Euro)

Button Shroud

Actuated Color

Red - Flash

Armed Color (Solid)

Yellow

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1MLYRP-12ED1Q8 Description

Banner Engineering SSA-EB1MLYRP-12ED1Q8 is an enclosed illuminated emergency STOP push-button featuring a solid yellow (ARMED) / flashing red (button pushed ON) illuminated base that is padlockable for enhanced security. This E-Stop push-button is designed with a polycarbonate housing and a 44mm mushroom head for easy activation. It comes pre-equipped with an 8-pin M12 Euro-style QD connector for straightforward installation. The yellow housing and red actuator are visually distinct, ensuring clear visibility. The device includes 1NO+2NC contacts for versatile connectivity and operates on a 24Vdc supply voltage. It is designed for square base mounting using 4 screws and can operate in ambient air temperatures ranging from -25°C to +60°C. With an IP65 degree of protection, it is well-suited for use in various environments. The operating mode is push-to-stop, stay-put (maintained / latched), and twist-to-release, with 1 NO and 2 NC auxiliary contacts for comprehensive control functionality.

$314.00

Request a quote, and we will send availability within minutes.

Select Qty:

$314.00

$314.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
