SI-MAGB3SMQD Banner Safety Switches

Name: SI-MAGB3SMQD
Brand: Banner
Price: 66 USD
Availability: BackOrder

Part#:SI-MAGB3SMQD

Alt. Part#:807135

Manufacturer:Banner

Category:Safety Switches

Product Lifecycle:Active

Product description

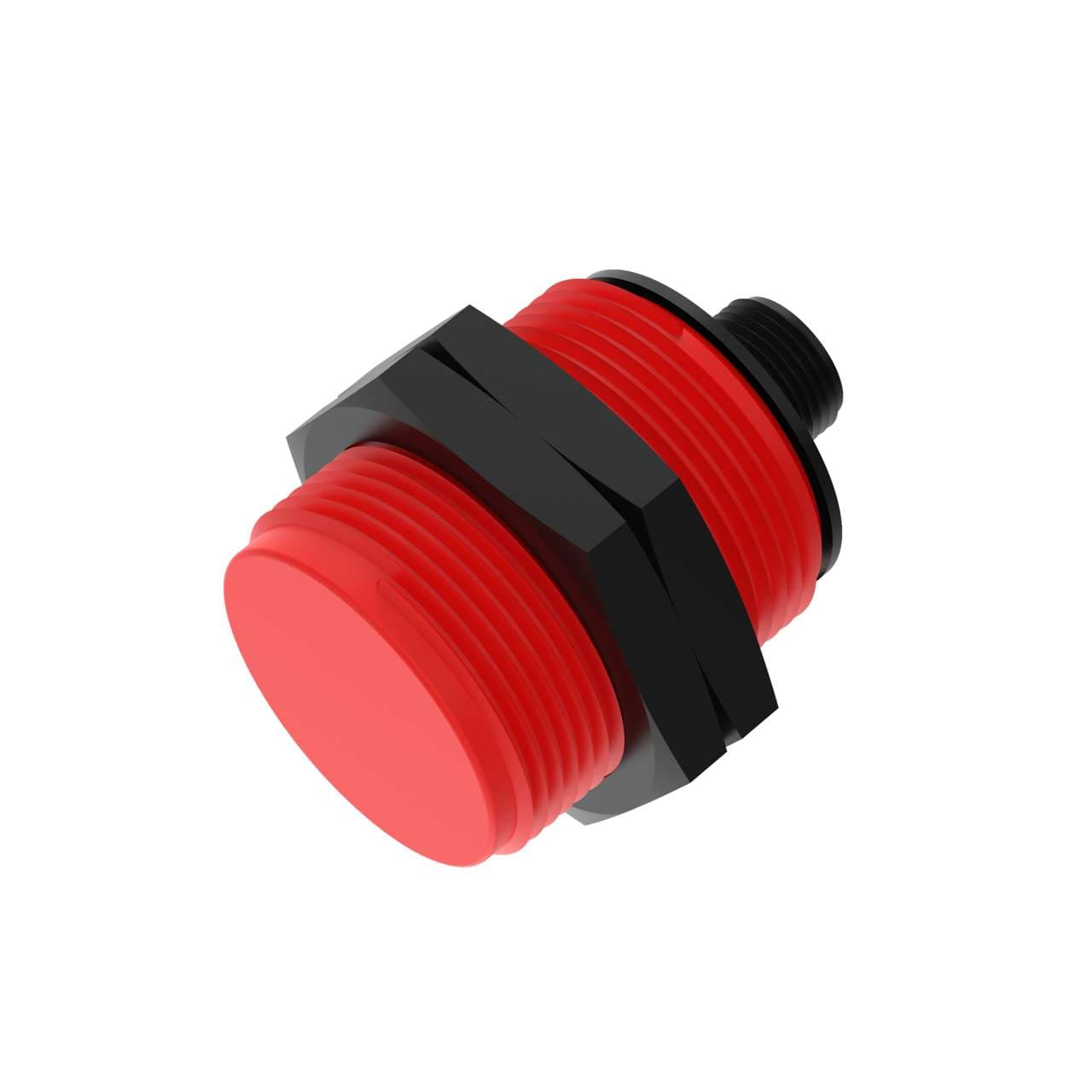

Magnetic Switch: 30 mm Barrel Sensor; Repeat Switching Accuracy: +/- 0.1 mm; Dimensions: 30 mm Barrel; 4-pin M12 Integral QD; Used With Model: SI-MAGB3MM

Product Details

Weight
244.93968 g
Country Of Origin
HU
Number of Pins
4
Coding Level/Tamper Resistance
Low
Sar Maximum (mm)
14
Auxilliary Output
No
Mechanical Life (operations in millions)
300
Sao Minimum (mm)
5
In-Series Diagnostics
No
Monitor (Locked) Contacts
N/A
Feature: Lockable
No
Safety Category
Cat 4
Connection Type
M12
Output Type
Reed Relay
SISTEMA
B10d = 20 million
SIL Rating
SIL CL 3
Actuator (Safety) Contacts
1 NC/1 NO
PL Rating
PL e
Primary Housing Material
Thermoplastic
Max Op. Temperature (°C)
70

Actuation

Standard

IP Rating

IP67

Device Shape

Circular

Device Size

30 x 35

Device Type

Magnetic - Sensor

Switch Style

Non-Contact

Min Op. Temperature (°C)

-25

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SI-MAGB3SMQD on Powermatic Associates is $66.00. Order now.

About the product

Banner Engineering SI-MAGB3SMQD is a non-contact magnetic safety door/hood/gate interlock switch from the SI-MAG series. This part features a thermoplastic housing designed to UL standards, ensuring compatibility with a variety of safety applications. It comes pre-equipped with a 4-pin Euro-style M12 connector for straightforward installation. The switch offers 1NO+1NC contacts, supporting both Normally Open and Normally Closed configurations for versatile integration into safety circuits. It operates within an ambient air temperature range of -25 to +70°C and boasts an IP67 degree of protection, making it suitable for challenging environments. The M30 cylindrical threaded/barrel shape facilitates easy mounting, and it has a sensing distance of 5mm to 14mm, allowing for flexible positioning relative to the target.
