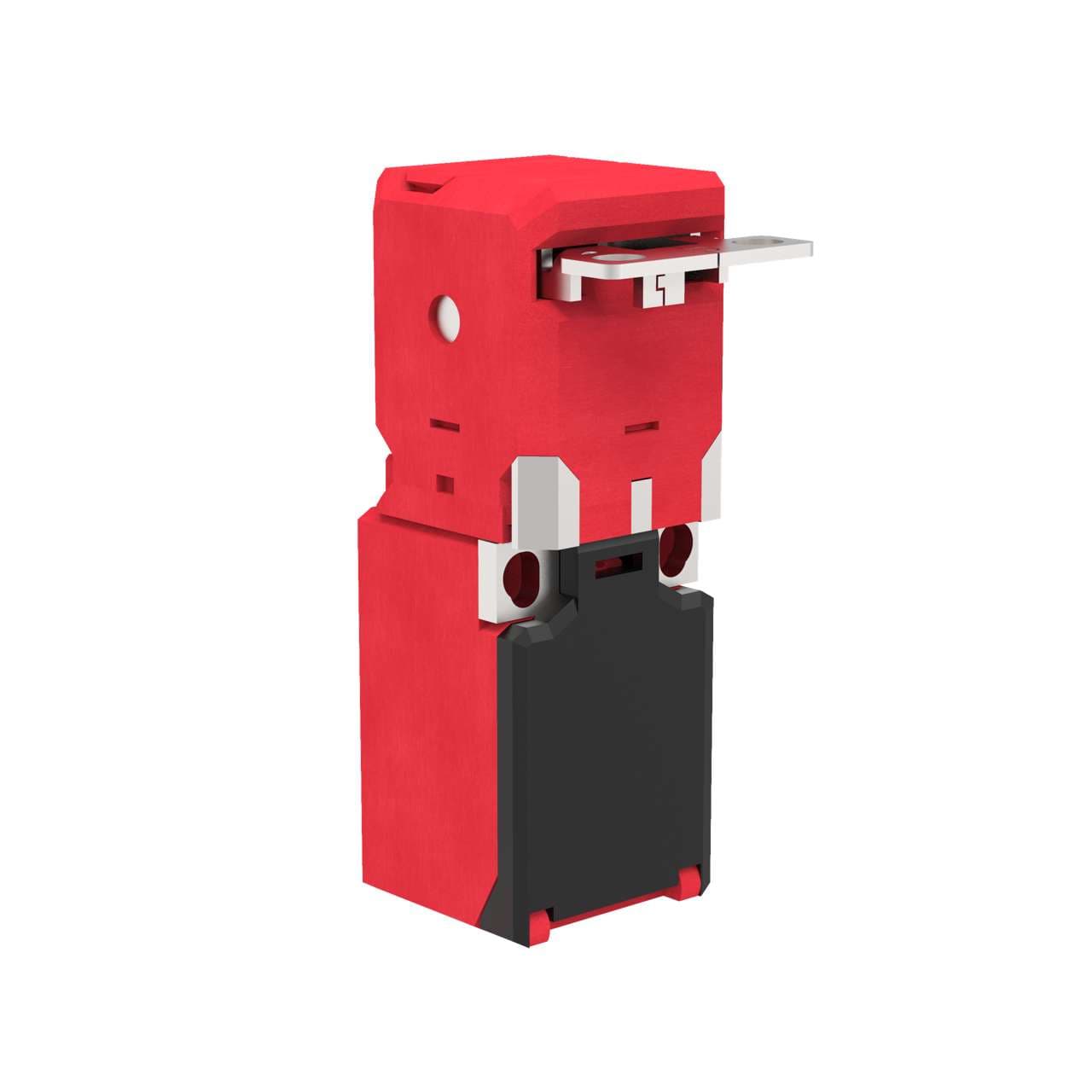

SI-LS83SRAE Banner Safety Switches

Name: SI-LS83SRAE
Brand: Banner
Price: 80 USD
Availability: BackOrder

Part#:SI-LS83SRAE

Manufacturer:Banner

Alt. Part#:58751

Product Lifecycle:Active

Get a quick Quote!

Limit Switch: Standard In-line Right-Angle; Actuator Position: Top Front Back Left or Right; Contact Configuration: 2 NC; Dimensions: 83 x 31 x 31 mm; Plastic Housing

About the manufacturer: Banner is one of the manufacturers that offers Safety Switches that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SI-LS83SRAE Banner price in the box on the right side or send a quick quote.

Product Details

Weight
145.14944 g
Country Of Origin
DE
Safety Category
Cat 4
Mechanical Life (operations in millions)
1
Coding Level/Tamper Resistance
Low
Feature: Lockable
No
SISTEMA
B10d = 2 million
Max Op. Temperature (°C)
80
Min Op. Temperature (°C)
-30
IP Rating
IP65
Device Shape
Rectangular
Minimum Hinged Door Size (mm)
150
Auxilliary Output
No
Connection Type
Wiring Chamber
Monitor (Locked) Contacts
N/A
Output Type
Contacts
In-Series Diagnostics
No
PL Rating
PL e
SIL Rating
SIL CL 3
Actuator (Safety) Contacts
2 NC

Primary Housing Material

Thermoplastic

Device Size

83 x 30 x 31

Switch Style

Contact

Actuation

In-Line

Device Type

Mechanical - Kit

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SI-LS83SRAE Description

Banner Engineering SI-LS83SRAE is a tongue-operated door switch from the SI-LS83 series, designed with a right-angle in-line actuation. This safety machine door/hood/gate switch kit features a thermoplastic housing and a wiring chamber with screw-clamp terminal connection plus an M16 entry. It is equipped with 2NC contacts and supports rated currents of 10A at 24Vac (AC-15), 6A at 24Vdc (DC-13), 10A at 110Vac (AC-15; 40-60Hz), 1A at 110Vdc (DC-13), 6A at 230Vac (AC-15; 40-60Hz), 6A at 24Vdc, and 0.4A at 230Vdc (DC-13). The SI-LS83SRAE operates within an ambient air temperature range of -30 to +80°C and offers a degree of protection rated at IP65. Its rectangular shape measures 30 mm in width, 83 mm in height, and 27 mm in depth. This part includes 0 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts.
