SI-LS83LE13D Banner Safety Switches
Part#:SI-LS83LE13D
Alt. Part#:93036
Manufacturer:Banner
Category:Safety Switches
Product Lifecycle:Active
Product description

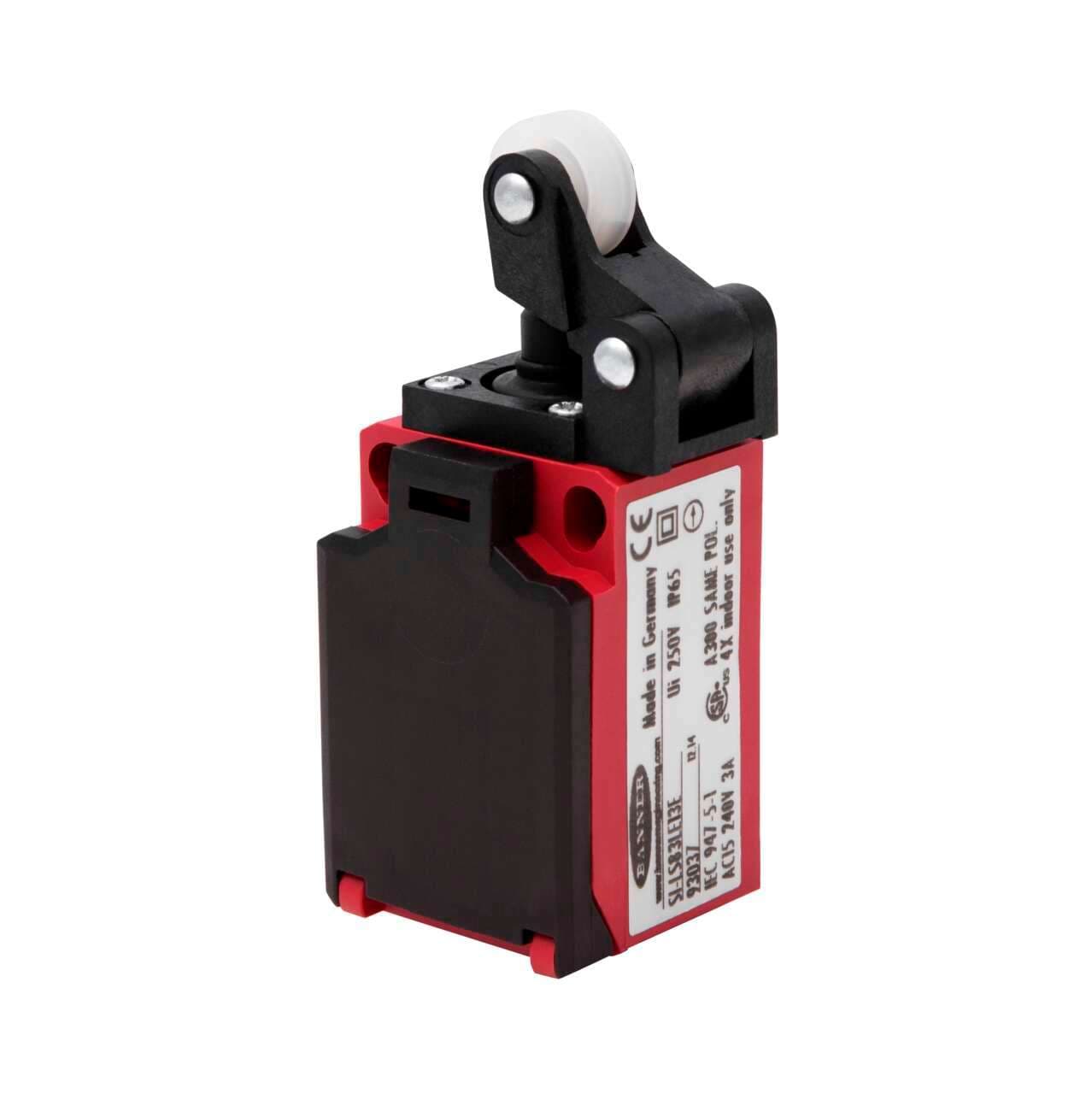

Limit Switch: Plastic Lever Actuator; Contact Configuration: 1 NC/1 NO; Dimensions: 67 x 30 x 31 mm; Plastic housing
Product Details
- Weight 45.3592 g
- Country Of Origin DE
- Coding Level/Tamper Resistance Uncoded
- Feature: Washdown Rated Yes
- IP Rating IP65
- Mechanical Life (operations in millions) 3
- In-Series Diagnostics No
- Max Op. Temperature (°C) 80
- Auxilliary Output No
- Feature: Lockable No
- Connection Type Wiring Chamber
- Output Type Contacts
- Device Shape Rectangular
- Monitor (Locked) Contacts N/A
- Actuator (Safety) Contacts 1 NC/1 NO
- Min Op. Temperature (°C) -30
- Device Size 67 x 30 x 31
- Actuation Lever
- Primary Housing Material Thermoplastic
- Device Type Limit Switch
- PL Rating PL e
- Safety Category Cat 4
- SIL Rating SIL CL 3
- SISTEMA B10d = 6 million
- Switch Style Contact
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SI-LS83LE13D on Powermatic Associates is $63.00. Order now.
About the product
Banner Engineering SI-LS83LE13D is a safety limit switch within the SI-LS83xxx series, featuring a lever with a 13mm roller design. This switch is constructed with a thermoplastic housing and utilizes a wiring chamber with screw-clamp terminal connection plus an M16 entry for connectivity. It is equipped with 1NO+1NC (slow-action / make-and-break) contacts, supporting rated currents of 3A at 240Vac (A300), 6A at 120Vac (A300), 0.27A at 240Vdc (Q300), and 0.55A at 120Vdc (Q300). The device operates within an ambient air temperature range of -30 to +80°C and offers a degree of protection rated at IP65. Its rectangular shape measures 30 mm in width, 45 mm in height, and 27 mm in depth, with one Normally Open (NO) and one Normally Closed (NC) circuit.
