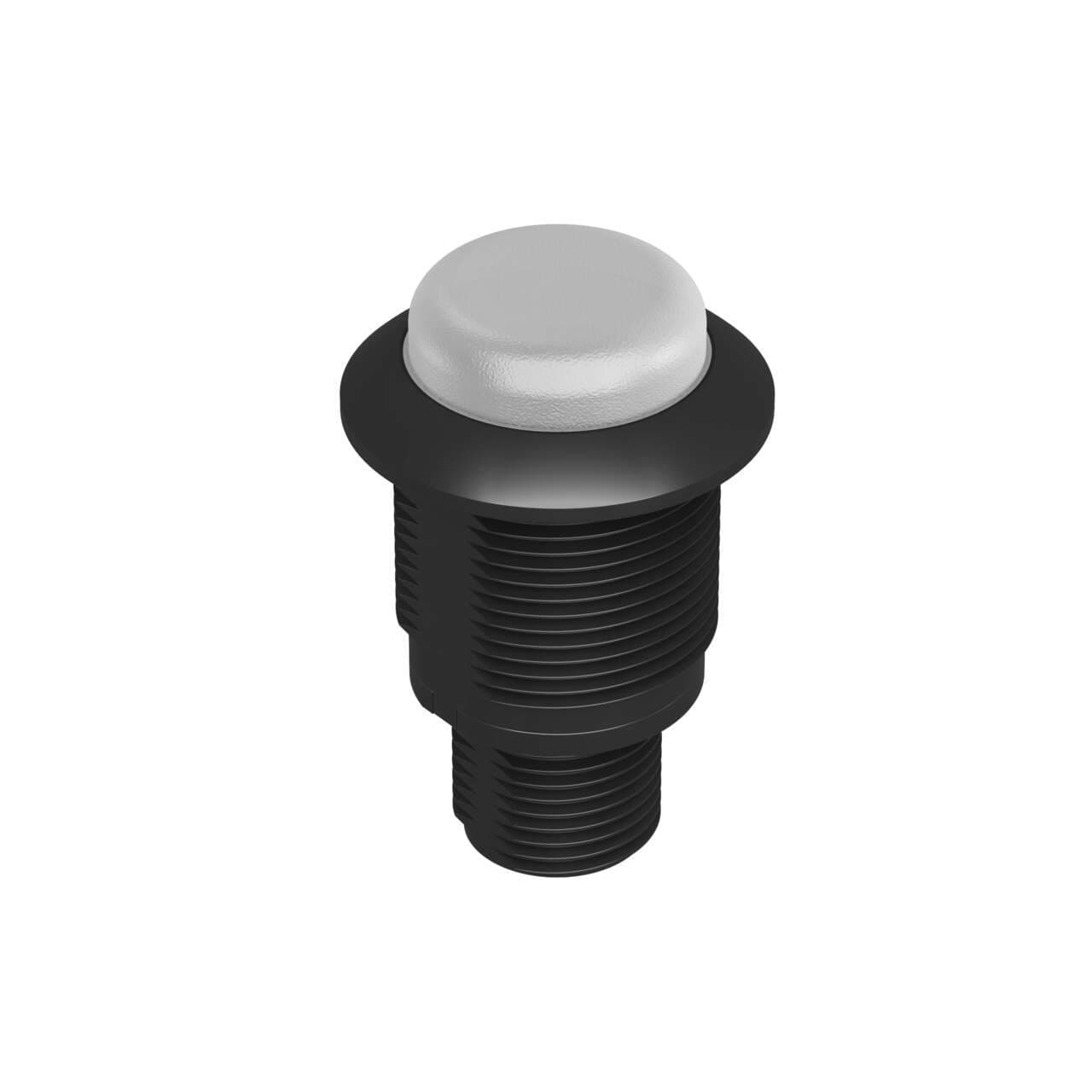

S18DLHYQ Banner Signal Beacons
Part#:S18DLHYQ
Alt. Part#:87904
Manufacturer:Banner
Category:Signal Beacons
Product Lifecycle:Active
Product description
S18 EZ-LIGHT Daylight Visible High Intensity 18 mm 1-Color; Voltage: 9-30 V dc; Environmental Rating: IP67; Color: Yellow; Input: PNP; 4-pin M12 Integral QD
Product Details
- Weight 54.43104 g
- Country Of Origin CN
- Wireless No
- Pro-Editor Compatible (Discrete) No
- Modbus RTU No
- Feature: Quick Disconnect Yes
- IO Link No
- Multi-Color Device Single Color On
- Feature: Chemical Resistant No
- Indication Intensity High Brightness & Daylight Visible
- Feature: Hazardous Area No
- Primary Housing Color Black
- Primary Window Material Polycarbonate Clear
- Max Op. Temperature (°C) 60
- Feature: Audible No
- Feature: Washdown Rated Yes
- Min Op. Temperature (°C) -40
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Environmental Rating IP67; IP69
- Physical Dimensions (LxWxH or DxH mm) 23.5 x 35.7
- Input Type Bimodal (PNP/NPN)
- Supply Voltage 9-30 V dc
- Color 1 - Wavelength/Color Temp/Coordinates 596 nm
- Number of Input Pins/Conductors 4
- Max Input Response Time (ms) 1
- Lumens Color 1 7.5
- Max Current Color (mA) 60
- Connection Integral QD
- Quick Disconnect Type M12 (Euro)
- Animation Option 1 Solid On
- Color Option 1 Yellow
- Color Technology Standard LED
- Product Size (mm) 18
- Indication Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Primary Housing Material Polycarbonate
- Mounting Thread M18 x 1.0
- Number of Colors / Segments 1
- Housing Style Barrel Mount - Flat Window
- Power Source DC
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18DLHYQ on Powermatic Associates is $54.00. Order now.
About the product
Banner Engineering S18DLHYQ is a pilot light from the EZ-LIGHT series featuring daylight-visible 1-color yellow LED illumination. This high-intensity LED pilot light indicator is designed with a clear Polycarbonate (PC) window and a Polycarbonate (PC) base. It has an 18mm indicator diameter and is pre-equipped with a 4-pin M12 Euro-style QD connector. The housing is black, and it operates on a supply voltage of 9Vdc-30Vdc (12Vdc-24Vdc nom.). The S18DLHYQ offers flush mounting in an 18mm hole with an M18 thread. It is capable of operating in ambient air temperatures ranging from -40°C to +60°C. This part boasts a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. It features a round protruding window and a threaded cylindrical barrel shape. The current consumption is 60mA, and it includes 1 x digital input (9-30Vdc; PNP) for color control.
