S18DLGYXP Banner Signal Beacons
Part#:S18DLGYXP
Alt. Part#:25818
Manufacturer:Banner
Category:Signal Beacons
Product Lifecycle:Active
Product description
S18 Daylight Visible EZ-LIGHT - 18 mm - IP67; Two Color: Green Yellow; 10-30 V dc PNP Input; 4-Wire 2 m Cable
Product Details
- Weight 70.5789152 g
- Country Of Origin CN
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Modbus RTU No
- IO Link No
- Feature: Audible No
- Multi-Color Device Single Color On
- Indication Intensity High Brightness & Daylight Visible
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Feature: Washdown Rated Yes
- Primary Window Material Polycarbonate Clear
- Primary Housing Color Black
- Max Op. Temperature (°C) 50
- Min Op. Temperature (°C) -40
- Max Input Response Time (ms) 1
- Supply Voltage 10-30 V dc
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Environmental Rating IP67; IP69
- Physical Dimensions (LxWxH or DxH mm) 23.5 x 35.7
- Input Type PNP
- Color Option 2 Yellow
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Lumens Color 1 2.3
- Number of Input Pins/Conductors 4
- Max Current Color (mA) 25
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Connection Cable
- Animation Option 1 Solid On
- Lumens Color 2 1.2
- Color Option 1 Green
- Product Size (mm) 18
- Color Technology Standard LED
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Colors / Segments 2
- Housing Style Barrel Mount - Flat Window
- Mounting Thread M18 x 1.0
- Indication Yes
- Power Source DC
- Primary Housing Material Polycarbonate
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18DLGYXP on Powermatic Associates is $47.00. Order now.
About the product

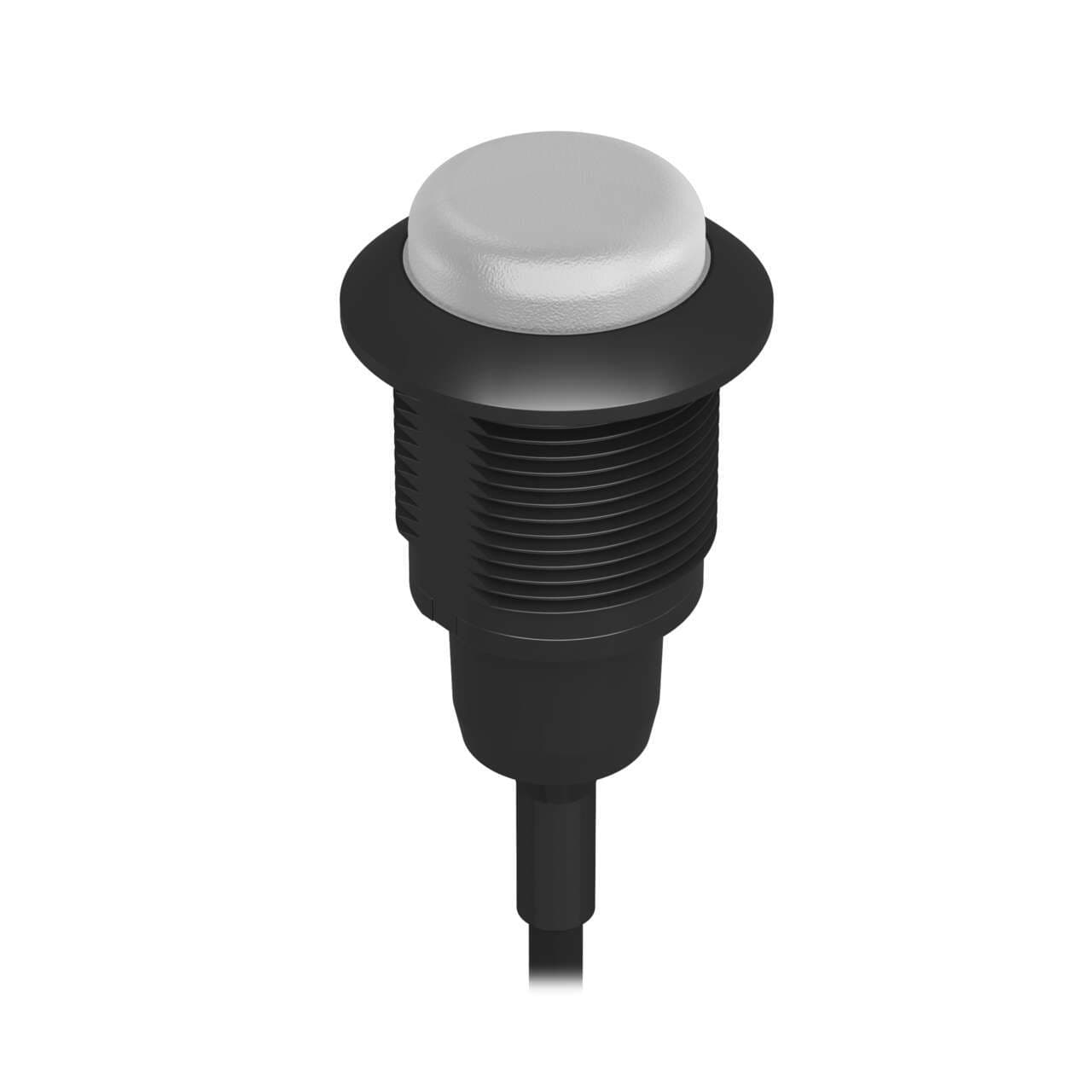

Banner Engineering S18DLGYXP, part of the EZ-LIGHT series, is a pilot light designed with daylight-visible 2-color G/Y color pattern LED illumination. This LED pilot light indicator features a clear Polycarbonate (PC) window and base, with a diameter of 18mm. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). It is designed for flush mounting in an 18mm hole with an M18 thread. The S18DLGYXP can operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. Its shape is characterized by a round protruding window and a threaded cylindrical barrel. The current consumption is 25mA, and it features 2 x digital inputs (10-30Vdc; PNP) for color control.
