S18DLGRXNT Banner Signal Beacons

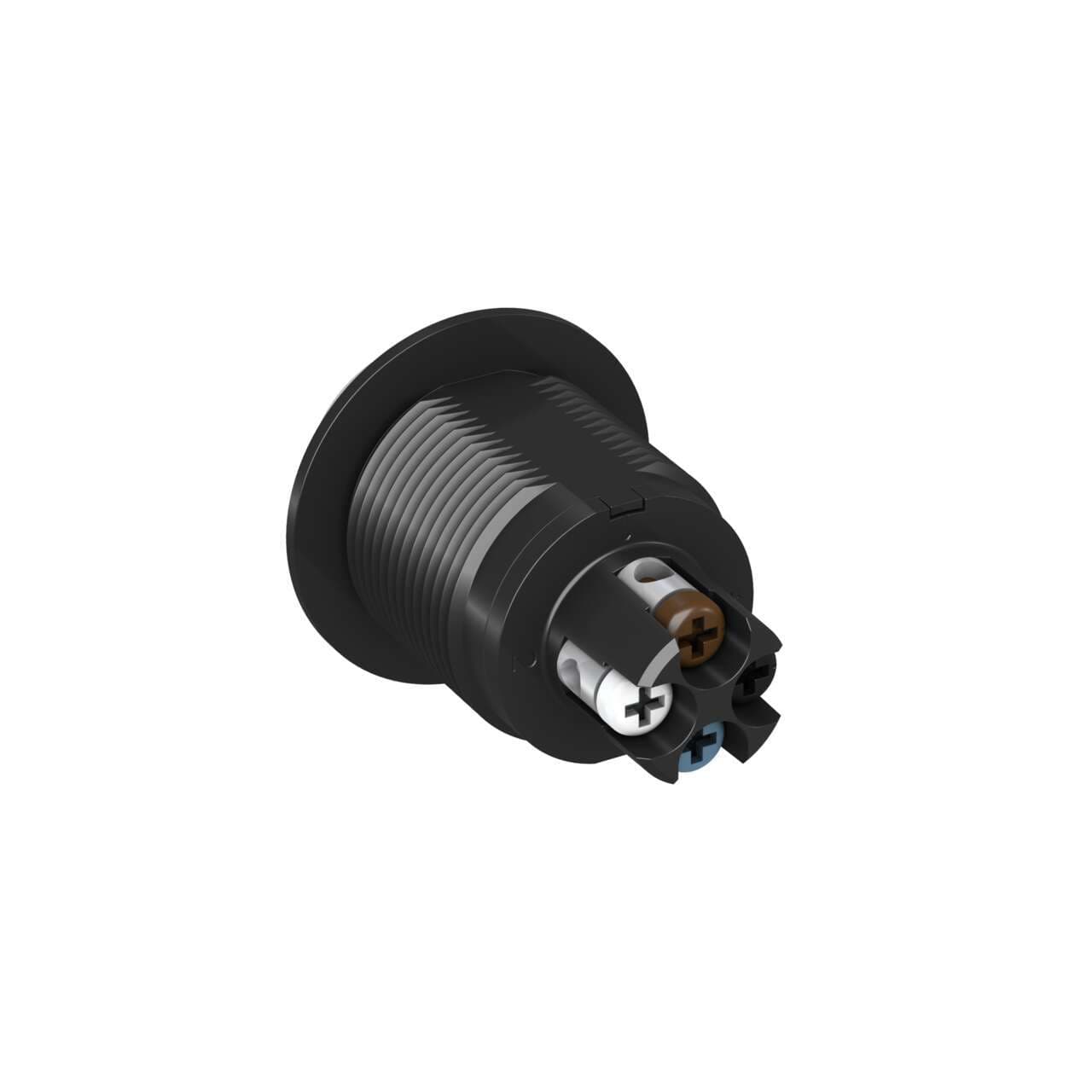

Banner S18DLGRXNT S18 DAYLIGHT VISIBLE EZ Light - 18 mm - IP67; Two Color: Green Red; 10-30 V dc NPN Input; 4-screw Terminal Wiring
Banner

Part#:S18DLGRXNT

Manufacturer:Banner

Alt. Part#:31684

Product Lifecycle:Active

Get a quick Quote!

S18 DAYLIGHT VISIBLE EZ Light - 18 mm - IP67; Two Color: Green Red; 10-30 V dc NPN Input; 4-screw Terminal Wiring

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18DLGRXNT Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    CN
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Feature: Hazardous Area
    No
  • Wireless
    No
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Chemical Resistant
    No
  • Indication Intensity
    High Brightness & Daylight Visible
  • Min Op. Temperature (°C)
    -40
  • Primary Window Material
    Polycarbonate Clear
  • Primary Housing Color
    Black
  • Physical Dimensions (LxWxH or DxH mm)
    23.5 x 34.6
  • Input Type
    NPN
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Max Current Color (mA)
    25
  • Max Input Response Time (ms)
    1
  • Max Op. Temperature (°C)
    50
  • Environmental Rating
    IP67; IP69
  • Supply Voltage
    10-30 V dc
  • Number of Input Pins/Conductors
    4
  • Color Option 2
    Red
  • Color Option 1
    Green
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Lumens Color 1
    2.3
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Lumens Color 2
    1.4
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Connection
    Terminal
  • Number of Colors / Segments
    2
  • Product Size (mm)
    18
  • Mounting Thread
    M18 x 1.0
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Power Source
    DC
  • Housing Style
    Barrel Mount - Flat Window
  • Indication
    Yes
  • Power
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


S18DLGRXNT Description

Banner Engineering S18DLGRXNT is a pilot light from the EZ-LIGHT series featuring daylight-visible 2-color G/R color pattern LED illumination. This LED pilot light indicator is designed with a clear Polycarbonate (PC) window and base, and it has an 18mm indicator diameter. The connection type is a screw-clamp terminal connection, housed in a black casing. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nominal) and is designed for flush mounting in an 18mm hole with an M18 thread. The ambient air temperature for operation ranges from -40°C to +50°C. It boasts a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring durability in various environments. The shape is characterized by a round protruding window and a threaded cylindrical barrel. It has a current consumption of 25mA and includes 2 x digital inputs (10-30Vdc; NPN) for color control.
