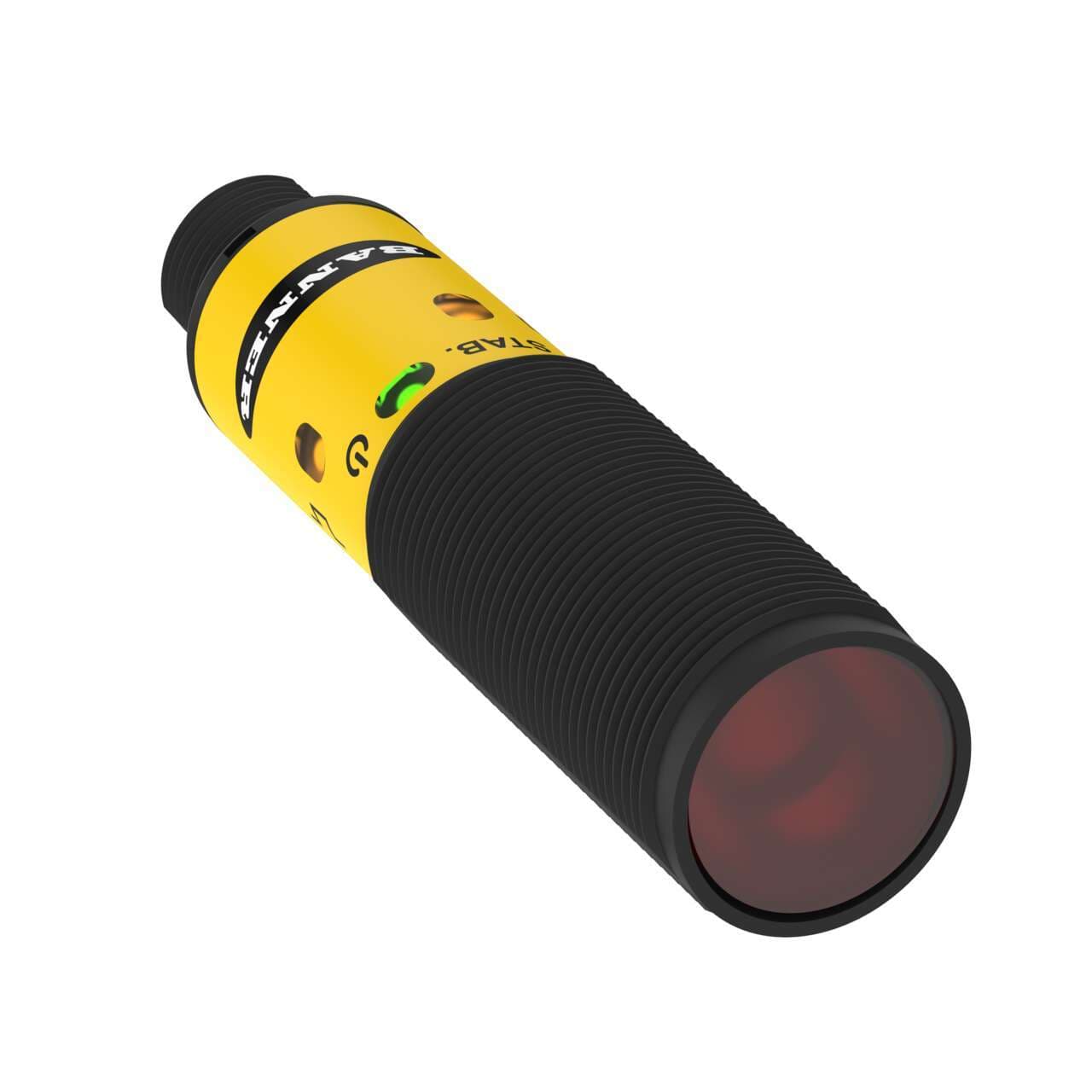

S18-2VNFF50-Q8 Banner Optical Sensors

Name: S18-2VNFF50-Q8
Brand: Banner
Price: 96 USD
Availability: BackOrder

Part#:S18-2VNFF50-Q8

Alt. Part#:91073

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

S18-2 Series: Fixed Field; Range: 50 mm; Input: 10-30 V dc; Outputs: Complementary NPN; 4-pin M12 Integral QD

Product Details

Weight
22.6796 g
Country Of Origin
CN
IO Link
No
DeviceNet
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Encapsulated
No
Feature: Ecolab Certified
Yes
Feature: Timing (Hold/Delay)
No
Opposed Mode Emitter/Receiver
N/A
Barrel Diameter (mm)
18
Indicator
LEDs
Adjustments
N/A
Lens Material
Acrylic
Max Op. Relative Humidity [%]
95% @ 50°C
NEMA Rating
N/A
IP Rating
IP67
Number of Pins
4
Sensing Beam Wavelength
624

Repeatability (µs)

100

Delay at Power-up (ms)

100

Special Feature: Water Detection

Operation

Light/Dark Operate

Special Feature: Remote Teach

Output response time (ms)

1.5

Max Op. Temp. (°C)

Special Feature: Intrinsically Safe

Connection

Integral QD

Quick Disconnect Type

M12 (Euro)

Outputs

NPN

Min Op. Temp. (°C)

-40

Power Supply/Supply Voltage

10-30 V dc

Primary Housing Material

Thermoplastic

Power

Housing Style

Barrel

Input/Output

Discrete

Max Sensing Distance (mm)

Small Visible Spot

LED

Sensing Mode (Detailed)

Background Suppression (Fixed)

Sensing Mode (General)

Proximity

Sensing Beam

Visible Red LED

Sub-range name

S18-2 series

Light Color

Visible red

Shape

Cylindrical threaded/barrel

Degree of protection

IP67

Compliant with standard(s)

Main function

Sensor (Photo-electric)

Sensing distance

50mm

Digital outputs

1 x digital output (NPN transistor)

Ambient air temperature for operation

-40...+70 °C

Order code / Manufacturer SKU

91073

Product series / family name

M18 barrel series

Material

thermoplastic housing Acrylic lns.

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Operating mode

Light-ON Dark-ON

Response time

1.5ms / 0.0015 s

Connection type

Pre-equipped with 4-pin Euro-style M12 connector

Equivalent to

S182VNFF50Q8

Primary brand

Banner Engineering

Thread size

M18

Design

background suppression system

Wavelength

624 nm

Functions

Fixed-field photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18-2VNFF50-Q8 on Powermatic Associates is $96.00. Order now.

About the product

Banner Engineering S18-2VNFF50-Q8 is a fixed-field photo-electric sensor from the S18-2 series, designed with a background suppression system. This sensor features a thermoplastic housing and an acrylic lens, ensuring durability and clarity. It comes pre-equipped with a 4-pin Euro-style M12 connector for easy installation. The sensor operates within a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and can function in ambient air temperatures ranging from -40 to +70°C. It boasts an IP67 degree of protection, making it suitable for use in various environmental conditions. The S18-2VNFF50-Q8 has a cylindrical threaded/barrel shape with an M18 thread size, and it offers a single digital output (NPN transistor). It is capable of sensing objects within a 50mm distance and utilizes visible red light with a wavelength of 624 nm for detection. The sensor's response time is quick, at 1.5ms or 0.0015 s, and it supports both Light-ON and Dark-ON operating modes.
