R58BPCRGB1 Banner Sensor Accessories

R58BPCRGB1 on Powermatic Associates
Banner

Part#:R58BPCRGB1

Manufacturer:Banner

Category:Sensor Accessories

Alt. Part#:15646

Product Lifecycle:Active

Get a quick Quote!

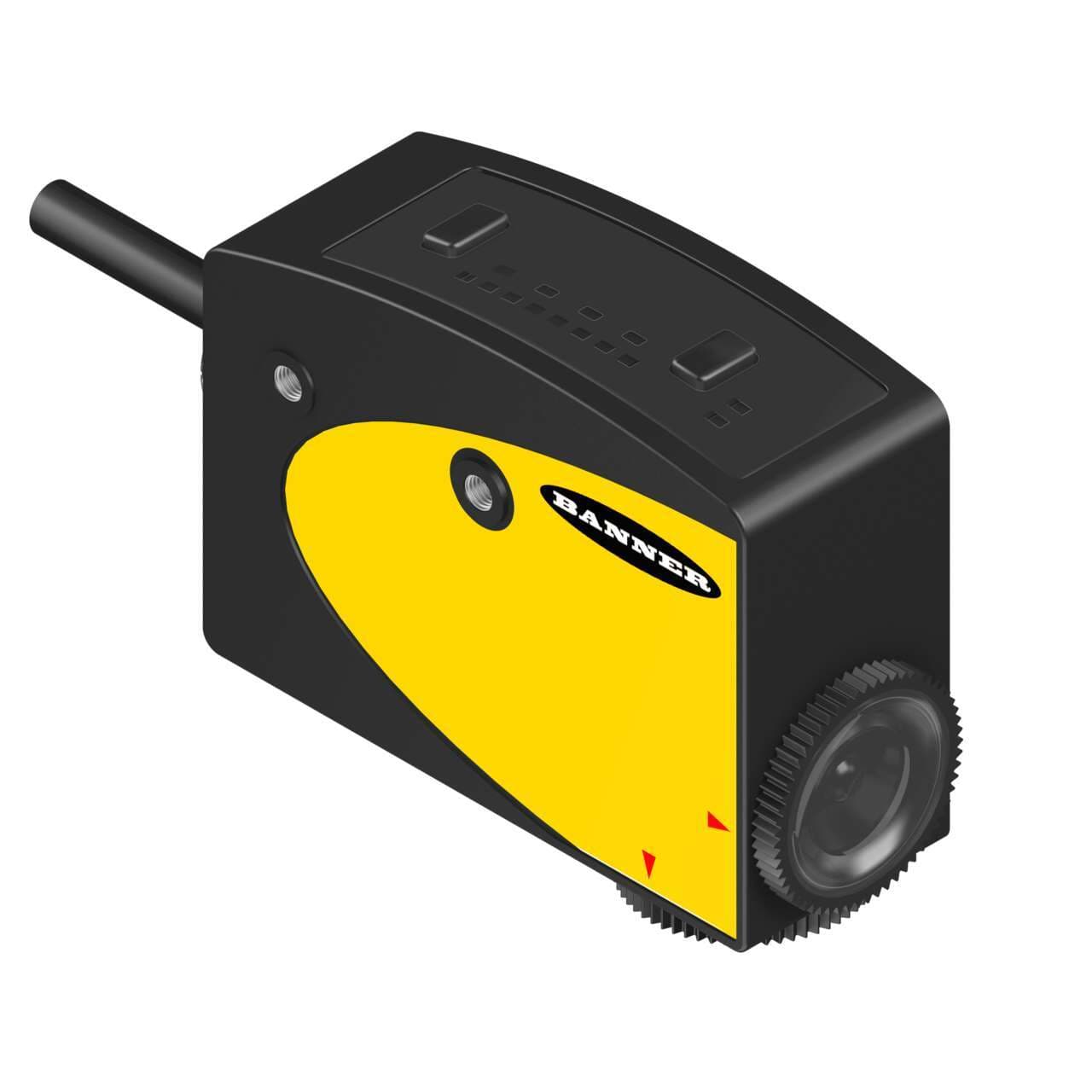

R58B EXPERT Register Mark Sensor; Input; 10-30 V dc; Output: 1 PNP (PIN 4); Parallel Sensing Beam; 2 m Cable

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the R58BPCRGB1 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    521.6308 g
  • Country Of Origin
    CN
  • Application: Registration Mark
    Yes
  • Feature: Timing (Hold/Delay)
    Yes
  • Application: Color
    No
  • IO Link
    No
  • Application: Luminescence
    No
  • Beam Spot Size
    1.2 x 3.8 mm at 10 mm
  • Delay at Power-up (ms)
    1000
  • Special Feature: Analog Output
    No
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Lens Material
    Acrylic
  • Max Op. Temperature (°C)
    55
  • Repeatability (µs)
    15
  • Min Op. Temperature (°C)
    -10
  • NEMA Rating
    N/A
  • IP Rating
    IP67
  • Operation
    Light/Dark Operate
  • Output response time (ms)
    0.05
  • Indicator
    LEDs
  • Max Sensing Range (mm)
    10
  • Power Supply/Supply Voltage
    10-30 V dc
  • LED Orientation
    Parallel to sensor length
  • Number of Pins
    4
  • Sensing Beam Wavelength
    Red: 636 nm; Green: 525 nm; Blue: 472 nm
  • Quick Disconnect Type
    No QD
  • Special Feature: Remote Teach
    Yes
  • Outputs
    PNP
  • Connection
    Cable
  • Power
    DC
  • Cable Length (m)
    2
  • Adjustments
    Teach Button
  • Sensing Beam
    Red/Green/Blue LED
  • Primary Housing Material
    Zinc Alloy Die-Cast
  • Main function
    Sensor (Registration)
  • Functions
    Registration mark sensor TEACH mode
  • Wavelength
    636 nm525 nm472 nm
  • Material
    Die-cast Zinc alloy housing Acrylic lns.
  • Order code / Manufacturer SKU
    15646
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Light Color
    RGB (Red/Green/Blue)
  • Digital outputs
    1 x digital output (PNP transistor)
  • Compliant with standard(s)
    CE
  • Product series / family name
    R series
  • Sensing distance
    10mm
  • Response time
    0.05ms / 0.00005 s
  • Sub-range name
    R58B series
  • Operating mode
    Light-ON Dark-ON
  • Degree of protection
    IP67
  • Primary brand
    Banner Engineering
  • Design
    convergent mode
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Ambient air temperature for operation
    -10...+55 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

R58BPCRGB1 Description

Banner Engineering R58BPCRGB1 is a registration mark sensor designed for precise detection tasks. It operates within an ambient air temperature range of -10 to +55°C and features a convergent mode parallel sensing image with TEACH mode for enhanced functionality. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, ensuring easy integration into various systems. Part of the R58B series, it boasts an IP67 degree of protection, making it suitable for demanding environments. The R58BPCRGB1 requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is housed in a rectangular, die-cast Zinc alloy with an Acrylic lens. It offers a sensing distance of 10mm and utilizes RGB (Red/Green/Blue; multicolor) light with wavelengths of 636 nm, 525 nm, and 472 nm for versatile sensing capabilities. This sensor supports both Light-ON and Dark-ON operating modes, includes 1 x digital output (PNP transistor), and features a rapid response time of 0.05ms / 0.00005 s.
