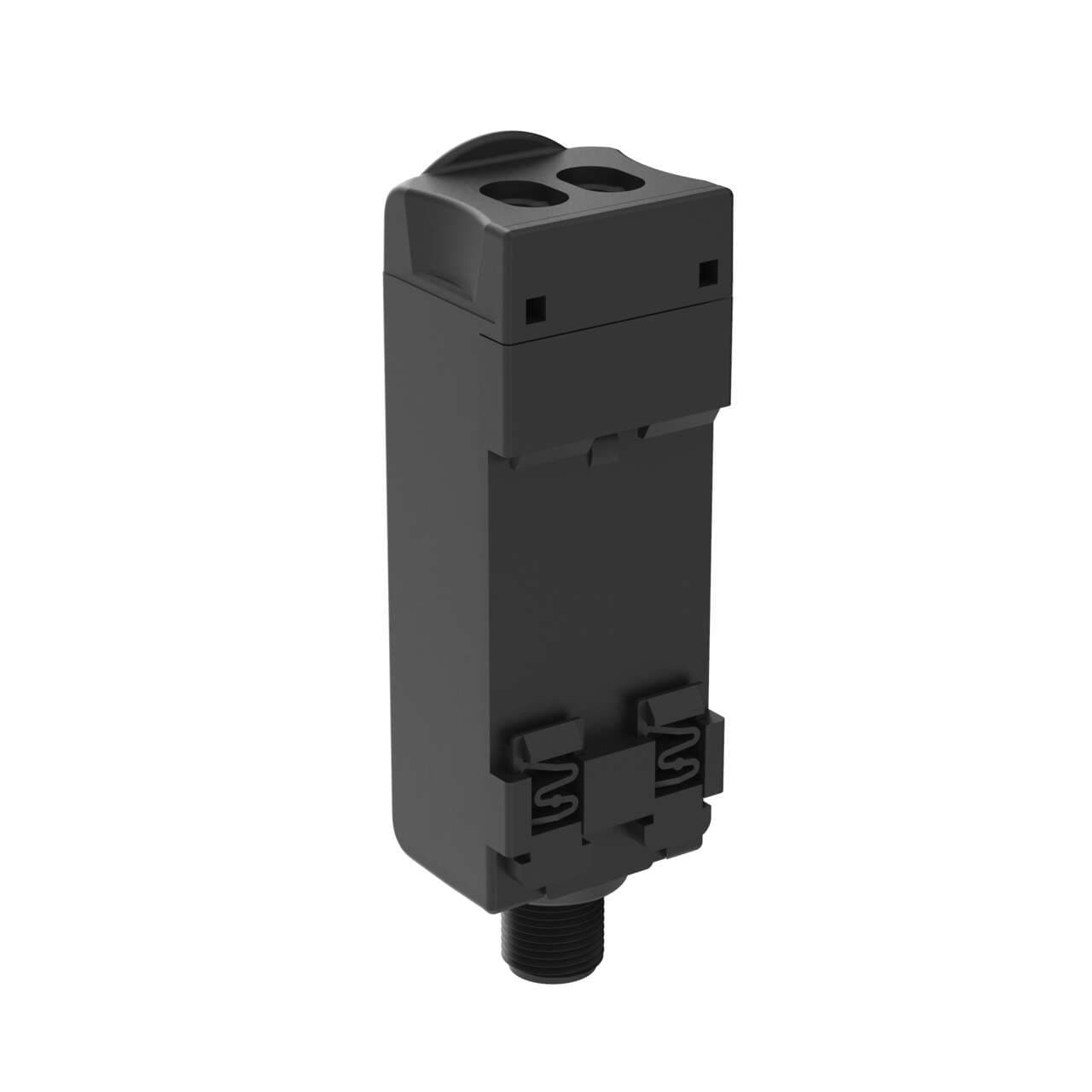

R55FVBQ Banner Sensor Accessories

Name: R55FVBQ
Brand: Banner
Price: 256 USD
Availability: BackOrder

Part#:R55FVBQ

Alt. Part#:58014

Manufacturer:Banner

Category:Sensor Accessories

Product Lifecycle:Active

Product description

R55 Color Mark: Glass Fiber w/ Blue LED; Range: Depends on Fiber; Input: 10-30 V dc; Outputs: Bipolar NPN/PNP; 5-pin M12 Integral QD

Product Details

Weight
122.46984 g
Country Of Origin
US
Application: Registration Mark
Yes
IO Link
No
Housing Material
Thermoplastic
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
Yes
Special Feature: Bussable Power
No
Indicator Display Type
Bargraph
Minimum response time (ms)
.05
Delay at Power-up (ms)
100
Power Supply/Supply Voltage
10-30 V dc
Adjustments
Teach Button
Intrinsically Safe
No
Number of Pins
5
Special Feature: Remote Teach
Yes
Max Op. Temperature (°C)
55
Max Op. Relative Humidity (%)
90% @ 50°C
Min Op. Temperature (°C)
-10

NEMA Rating

NEMA 6

IP Rating

IP67

Output Type (Specific)

Single Discrete

Repeatability (µs)

Fiber Type

Glass Only

Output

Bipolar (NPN & PNP)

Quick Disconnect Type

M12 (Euro)

Color LED - Amplifiers

Blue

Connection

Integral QD

Input/Output

Discrete

Primary Housing Material

Thermoplastic

Power

Housing Style

DIN Rail

Sub-range name

R55F series

Light Color

Visible blue

Degree of protection

IP67 NEMA 6

Main function

Amplifier for sensor

Sensing distance

50mm

Mounting mode

DIN rail mounting

Digital outputs

1 x digital output (PNP/NPN transistor)

Product series / family name

R series

Connection type

Pre-equipped with 5-pin Euro-style M12 connector

Material

thermoplastic housing Glass fiber

Primary brand

Banner Engineering

Functions

Color contrast fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode

Ambient air temperature for operation

-10...+55 °C

Display

LED bargraph

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Shape

Rectangular

Order code / Manufacturer SKU

58014

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of R55FVBQ on Powermatic Associates is $256.00. Order now.

About the product

Banner Engineering R55FVBQ is an amplifier for sensor applications, specifically designed for color contrast with a fiberoptic sensor amplifier function. It features a DIN rail mount for easy installation and operates within an ambient air temperature range of -10 to +55°C. This part is distinguished by its TEACH mode tailored for plastic fiber, ensuring precise operation. It comes pre-equipped with a 5-pin Euro-style M12 connector, aligning with the R55F series. The R55FVBQ offers a degree of protection rated at IP67 NEMA 6, suitable for demanding environments. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. The design is rectangular, constructed from a thermoplastic housing with glass fiber, ensuring durability. It has a sensing distance of 50mm and utilizes visible blue light for detection. Additionally, it includes 1 x digital output (PNP/NPN transistor) for versatile connectivity options.

R55FVBQ Related Documents

57945.pdf

$256.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$256.00

$256.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare R55FVBQ with other Sensor Accessories products

Weight

Country Of Origin

Application: Registration...

IO Link

Housing Material

Feature: Audible

Feature: Hazardous Area

Feature: Timing (Hold/Del...

Special Feature: Bussable...

Indicator Display Type

Selected product

Backordered

R55FVBQ

Banner

R55 Color Mark: Glass Fiber w/ Blue LED; Range: Depends on Fiber; Input: 10-30 V dc; Outputs: Bipola...

Weight122.46984 g

Country Of OriginUS

Application: Registration MarkYes

IO LinkNo

Housing MaterialThermoplastic

Feature: AudibleNo

Feature: Hazardous AreaNo

Feature: Timing (Hold/Delay)Yes

Special Feature: Bussable PowerNo

Indicator Display TypeBargraph

8 in stock

SMB18A

Banner

Bracket: 18 mm Right-Angle-mount; Material: 11 Gauge Stainless Steel; Curved mounting slot for versa...

Weight45.3592 g

Country Of OriginCN

Application: Registration Mark-

IO Link-

Housing Material-

Feature: Audible-

Feature: Hazardous Area-

Feature: Timing (Hold/Delay)-

Special Feature: Bussable Power-

Indicator Display Type-

27 in stock

APQS18-020H

Banner

APQS18-020H APERTURE QS18 SERIES - QTY 6

Weight4.53592 g

Country Of OriginUS

Application: Registration Mark-

IO Link-

Housing Material-

Feature: Audible-

Feature: Hazardous Area-

Feature: Timing (Hold/Delay)-

Special Feature: Bussable Power-

Indicator Display Type-

About the manufacturer

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...

Relevant products

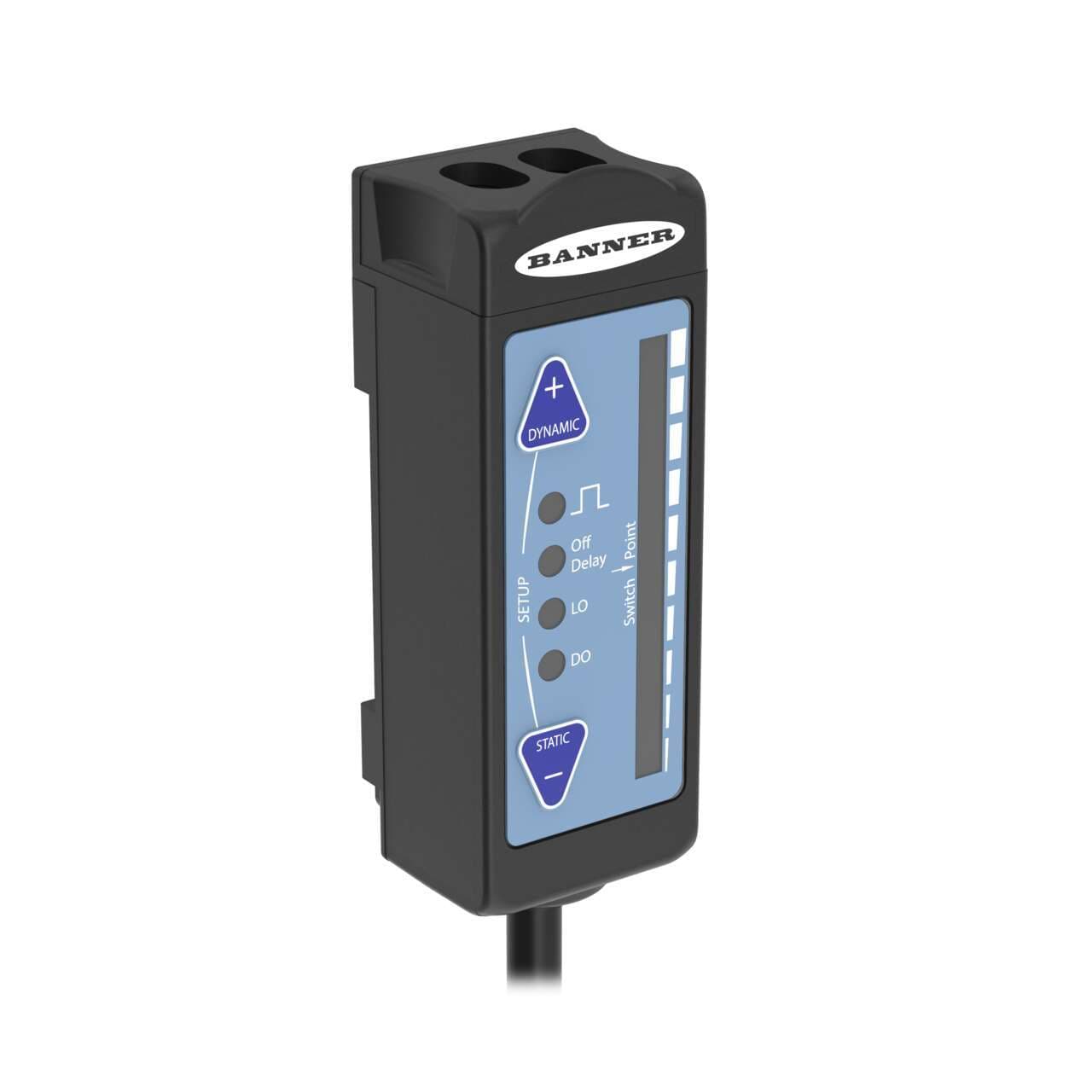

R55F

Verified stock: 0

R55 Color Mark: Glass Fiber w/ Infrared LED; Range: Depends on Fiber; Input: 10-30 V dc; Outputs: Bipolar NPN/PNP; 2 m (6.5 ft) Cable

Banner

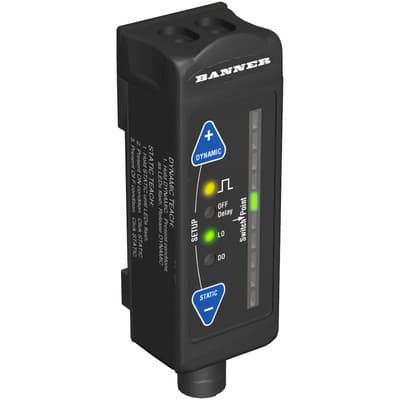

R55FPB W-30
