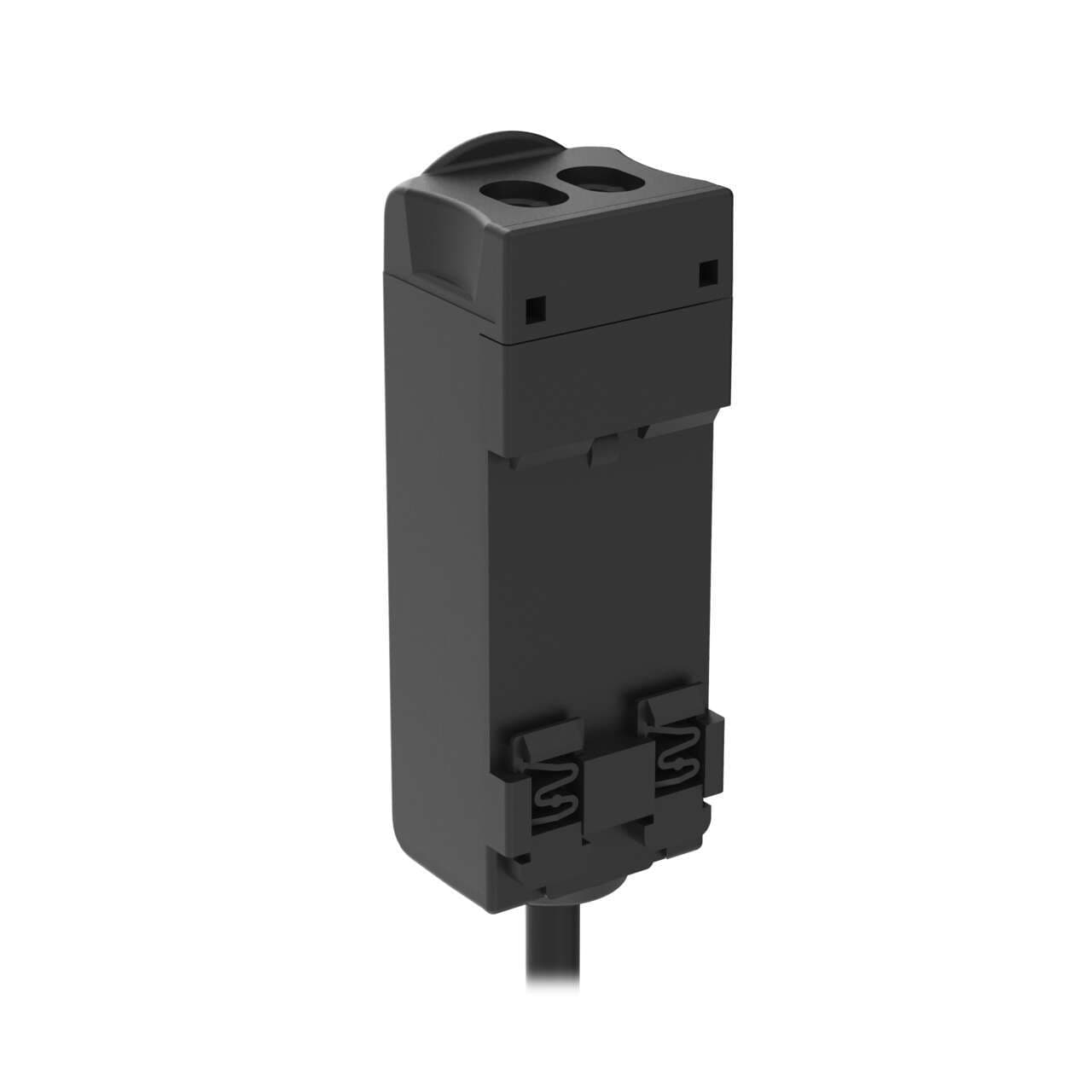

R55F Banner Sensor Accessories
Part#:R55F
Alt. Part#:66379
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
R55 Color Mark: Glass Fiber w/ Infrared LED; Range: Depends on Fiber; Input: 10-30 V dc; Outputs: Bipolar NPN/PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 226.796 g
- Country Of Origin US
- Housing Material Thermoplastic
- IO Link No
- Application: Registration Mark Yes
- Feature: Audible No
- Feature: Hazardous Area No
- Feature: Timing (Hold/Delay) Yes
- Special Feature: Bussable Power No
- Minimum response time (ms) .05
- Indicator Display Type Bargraph
- Delay at Power-up (ms) 100
- Adjustments Teach Button
- Power Supply/Supply Voltage 10-30 V dc
- Intrinsically Safe No
- Max Op. Relative Humidity (%) 90% @ 50°C
- Special Feature: Remote Teach Yes
- Min Op. Temperature (°C) -10
- Max Op. Temperature (°C) 55
- NEMA Rating NEMA 6
- IP Rating IP67
- Repeatability (µs) 50
- Output Type (Specific) Single Discrete
- Number of Pins 5
- Quick Disconnect Type No QD
- Connection Cable
- Output Bipolar (NPN & PNP)
- Color LED - Amplifiers Infrared
- Power DC
- Input/Output Discrete
- Fiber Type Glass Only
- Primary Housing Material Thermoplastic
- Housing Style DIN Rail
- Cable Length (m) 2
- Main function Amplifier for sensor
- Product series / family name R series
- Functions Color contrast fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Order code / Manufacturer SKU 66379
- Primary brand Banner Engineering
- Display LED bargraph
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Degree of protection IP67 NEMA 6
- Sub-range name R55F series
- Sensing distance 40mm
- Material thermoplastic housing Glass fiber
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Mounting mode DIN rail mounting
- Ambient air temperature for operation -10...+55 °C
- Light Color Infrared (IR)
- Shape Rectangular
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of R55F on Powermatic Associates is $256.00. Order now.
About the product
Banner Engineering R55F is an amplifier for sensor applications, specifically designed for color contrast with a fiberoptic sensor amplifier function. It is suitable for DIN rail mounting and operates within an ambient air temperature range of -10 to +55°C. The R55F features a TEACH mode tailored for plastic fiber, ensuring precise functionality. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. As part of the R55F series, this product boasts an IP67 NEMA 6 degree of protection, indicating a high level of resistance to dust and water ingress. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and is housed in a thermoplastic casing with glass fiber, ensuring durability. The R55F has a sensing distance of 40mm and utilizes infrared (IR) light color for detection. It is equipped with one digital output (PNP/NPN transistor) and offers a rapid response time of 50μs / 0.00005 s, facilitating quick and efficient operation.
