QT50UDBQ-CRFV

Banner

Product Lifecycle: Active

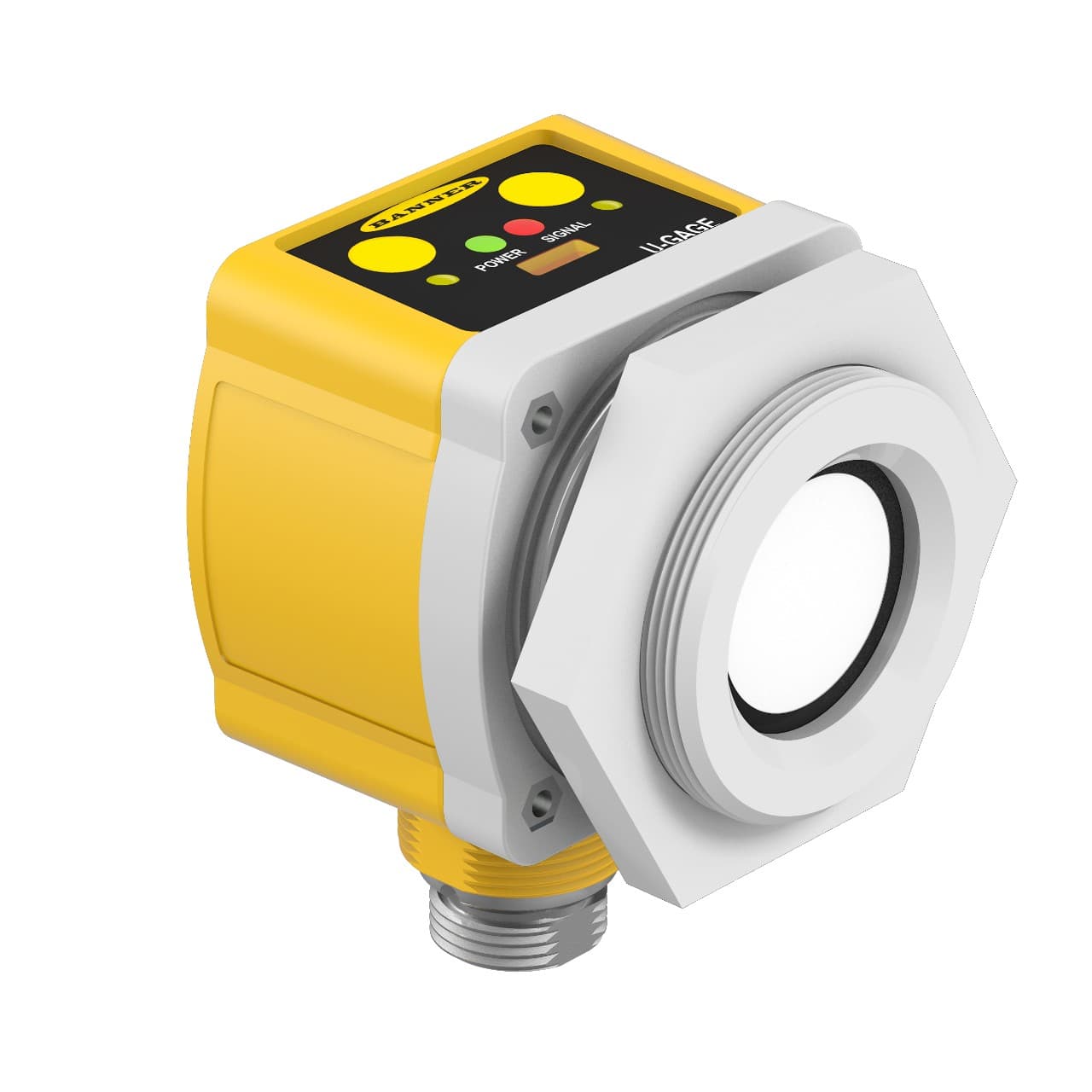

Banner Engineering QT50UDBQ-CRFV is an ultrasonic distance sensor featuring a time-of-flight system for precise measurement. It is designed with an M30 threaded mount for secure installation and is equipped with a 5-pin 7/8" mini connector for easy connection. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a chemical-resistant thermoplastic material, ensuring durability in various environments. With a protection degree of IP67 NEMA 6P, it is safeguarded against dust and water ingress. The QT50UDBQ-CRFV operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and features a 75kHz transmission frequency for reliable sensing. It offers a sensing distance range from 20cm to 6m and includes 2 x digital outputs (PNP/NPN transistor) for versatile connectivity. Additionally, it is equipped with protection functions against short-circuit, enhancing its operational security.

QT50UDBQ-CRFV

Banner Engineering QT50UDBQ-CRFV is an ultrasonic distance sensor featuring a time-of-flight system for precise measurement. It is designed with an M30 threaded mount for secure installation and is equipped with a 5-pin 7/8" mini connector for easy connection. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a chemical-resistant thermoplastic material, ensuring durability in various environments. With a protection degree of IP67 NEMA 6P, it is safeguarded against dust and water ingress. The QT50UDBQ-CRFV operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and features a 75kHz transmission frequency for reliable sensing. It offers a sensing distance range from 20cm to 6m and includes 2 x digital outputs (PNP/NPN transistor) for versatile connectivity. Additionally, it is equipped with protection functions against short-circuit, enhancing its operational security.

U-GAGE QT50U, T30U Series, PTFE Flange -- Datasheet.pdf

Product details

U-GAGE QT50U, T30U Series, PTFE Flange -- Datasheet.pdf

1-wire Serial InterfaceNo
WirelessNo
IO LinkNo
ProfibusNo
SSINo
RS-485No

Common Ethernet ProtocolNo

RS-422No

RS-232No

PROFINETNo

Application: UltrasonicYes

Feature: Pump-in/ Pump-outYes

Feature: Timing (Hold/Delay)No

Feature: Chemical ResistantYes

Feature: Clear Object DetectionYes

Feature: Remote TeachYes

Supply Protection CircuitryProtected against reverse polarity and transient overvoltages

Power/Current Consumption (exclusive of load)100 mA max @ 10 V dc; 40 mA max @ 30 V dc

Max Off-state Leakage Current (µA)5

Ultrasonic Frequency (kHz)75

Discrete Output Hysteresis (mm)5

Minimum Window Size (mm)20

Barrel Diameter (mm)56

Warm-up Time (minutes)15

Rep Rate (ms)96

Minimum Response Time (ms)100

Max Op. Relative Humidity Non-Condensing (%)100

Min Operating Temperature (°C)-20

Max Operating Temperature (°C)70

IP RatingIP67

Storage Temperature (°C)-40 to 90

NEMA RatingNEMA 6P

Output ProtectionProtected against short circuit conditions

Max Discrete (Switched) Output (mA)150

Discrete (Switched) Outputs2 NPN/PNP Configurable

Output Saturation Voltage PNP Outputs< 1.2 V at 10 mA; < 1.65 V at 100 mA

Output Saturation Voltage NPN Outputs< 0.2 V at 10 mA; < 0.65 V at 150 mA

AdjustmentsPush Button (s)

VibrationMIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).

Mechanical ShockIEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave

Number of Pins5

Temperature Effect (mm/°C)Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C

Max Sensing Distance (mm)6000

Delay at Power-up (ms)1500

Power Supply10-30 V dc

Minimum Sensing Distance (mm)200

Quick Disconnect TypeM12 (Euro)

Analog Resolution/Discrete Repeatability1

ConnectionIntegral QD

IndicatorLED(s)

Input/OutputDiscrete

Max Measurement Range>1 m - <=20 m

Housing StyleRectangular

PC ConfigurableNo

Primary Housing MaterialPBT

Device TypeSensor

Sensing Mode (Detailed)Time of Flight

PowerDC

Sensing Mode (General)Proximity

Sensing BeamUltrasonic

Product series / family nameU-GAGE series

Mounting modeThreaded mount

Ambient air temperature for operation-20...+70 °C

Sub-range nameQT50UDB series

Sensing distance20cm...6m

ShapeRectangular

Protection functionsShort-circuit

Compliant with standard(s)CE

Main functionSensor (Distance)

Designtime-of-flight system

Digital outputs2 x digital outputs (PNP/NPN transistors)

Order code / Manufacturer SKU76784

Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Thread sizeM30

Degree of protectionIP67 NEMA 6P

Equivalent toQT50UDBQCRFV

Primary brandBanner Engineering

FunctionsUltrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal)

Connection typePre-equipped with 5-pin Euro-style M12 connector

Materialthermoplastic housing

Emission frequency75kHz

Chemical resistancechemical-resistant
