Powermatic Associates Logo

QT50R-KR-RH Banner Electronic Components

QT50R-KR-RH on Powermatic Associates
Banner

Part#:QT50R-KR-RH

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

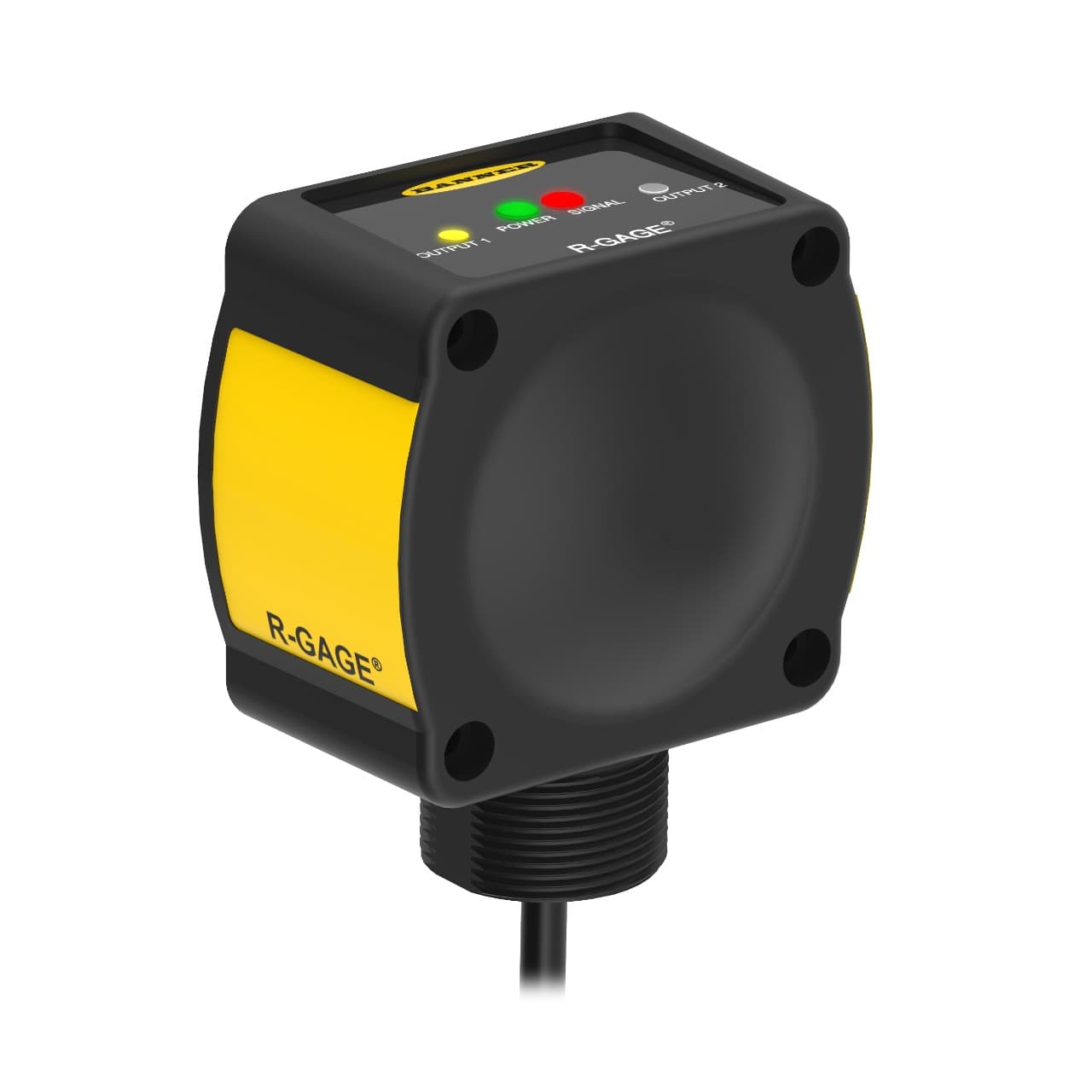

Banner Engineering QT50R-KR-RH is a collision-avoidance retro-reflective radar sensor designed with a time-of-flight system and approved by Korea Telecom. It operates within an ambient air temperature range of -40 to +65°C and is equipped with a pre-wired 6.5ft / 2m cable terminated with bare end flying leads. This sensor falls under the QT50R-RH series and offers a degree of protection rated at IP67, making it suitable for various environmental conditions. It requires a supply voltage of 12Vdc-24Vdc and features a rectangular shape with an ABS / Polycarbonate (PC) housing. The QT50R-KR-RH can sense distances from 0 to 12m and supports both Normally Open (NO) and Normally Closed (NC) operating modes. It includes 1 x digital output (PNP/NPN transistor) and is equipped with protection functions against reverse polarity and short-circuit.

Product Details

  • PC Configurable
    No
  • Quick Disconnect Type
    No QD
  • Output Protection
    Protected against short circuit
  • Feature: Timing (Hold/Delay)
    No
  • RS-422
    No
  • Primary Housing Material
    ABS/Polycarbonate
  • Delay at Power-up (ms)
    2000
  • Feature: Remote Teach
    Yes
  • Cert: Korea
    Yes
  • Housing Style
    Rectangular
  • Power Supply
    12-24 V dc
  • Max Discrete (Switched) Output (mA)
    150
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • RS-485
    No
  • Max Measurement Range
    >5 m - <=20 m
  • Max Sensing Distance (mm)
    12000
  • Min Operating Temperature (°C)
    -40
  • PROFINET
    No
  • Operating Frequency
    24 GHz
  • Device Type
    Sensor
  • Adjustments
    Dip Switch
  • Common Ethernet Protocol
    No
  • Wireless
    No
  • Sensing Mode (Detailed)
    Time of Flight
  • Indicator
    LED(s)
  • IP Rating
    IP67
  • Feature: Chemical Resistant
    No
  • 1-wire Serial Interface
    No
  • Sensing Mode (General)
    Retroreflective
  • Input/Output
    Discrete
  • Max Operating Temperature (°C)
    65
  • IO Link
    No
  • SSI
    No
  • Power
    DC
  • Radar Beam Pattern (H x V °)
    90 x 76
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Profibus
    No
  • Sensing Beam
    Radar
  • Cable Length (m)
    2
  • Connection
    Flying Leads
  • Number of Pins
    5
  • Minimum Response Time (ms)
    30
  • RS-232
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QT50R-KR-RH Related Documents

R-GAGE QT50R-RH Sensor-1630950995875.pdfQT50RAF CABLE-1630950995873.stpQT50RAF CABLE-1630950995897.pdf
