QM30VT1 Banner Vibration Sensors

QM30VT1 on Powermatic Associates
Banner

Part#:QM30VT1

Manufacturer:Banner

Alt. Part#:806275

Product Lifecycle:Active

Get a quick Quote!

Vibration and Temperature Sensor; 1-Wire Serial Interface; 2.09 m (6.9 ft) M12 Pigtail QD; Aluminum Housing

About the manufacturer: Banner is one of the manufacturers that offers Vibration Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QM30VT1 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    174.63292 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    Yes
  • RS-485
    No
  • Wireless
    Yes
  • Modbus RTU
    No
  • Modbus/TCP
    No
  • PROFINET
    No
  • EtherNet/IP
    No
  • RS-232
    No
  • Feature: Hazardous Area
    No
  • Application: Vibration Sensor Input
    Yes
  • Application: Temperature Input
    Yes
  • Min Temp Operating Conditions
    -40
  • Device Type
    Sensor
  • Environmental Rating (NEMA)
    NEMA 6P
  • Max Temp Operating Conditions
    105
  • Power Supply
    3.6-5.5 V dc
  • Environmental Rating (IP)
    IP67
  • Input/Output
    Serial
  • Input Details
    Vibration/Temperature
  • Housing Style
    Rectangular
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QM30VT1 Description

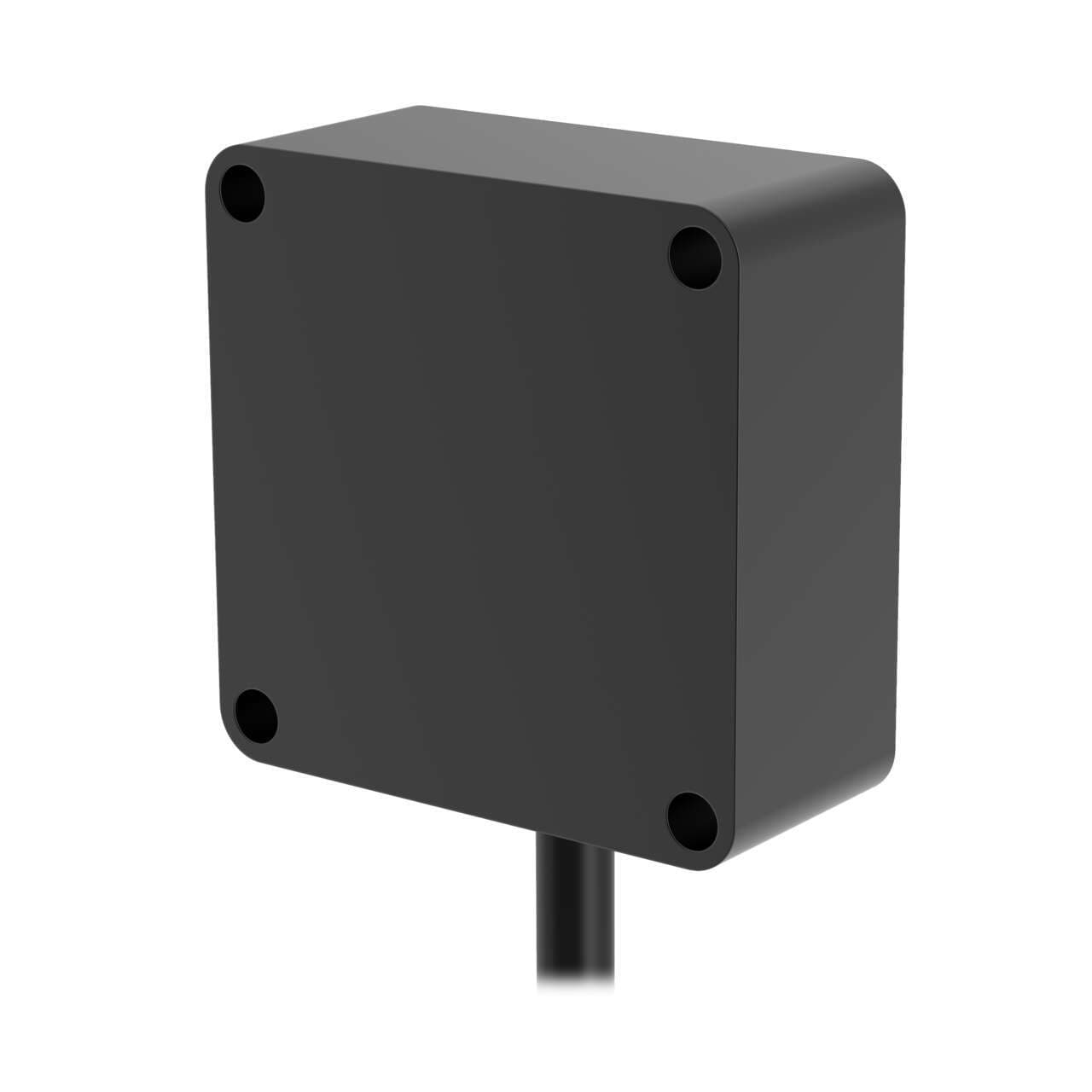

Banner Engineering QM30VT1 is a vibration and temperature sensor designed for monitoring industrial equipment. It operates within an ambient air temperature range of -40 to +105°C and measures vibration from 0 to 46mm/s (0 to 1.8in/s RMS) and temperature from -40 to +105°C. This sensor is part of the QM30VT series and features a pre-wired 2.09m pigtail that terminates with a 5-pin M12 male connector. It is encased in an aluminium housing and offers a degree of protection rated at IP67, making it suitable for use in environments where dust and water resistance are required.

Related documents QM30VT1 Specs

QM30VT1 212568.pdf
