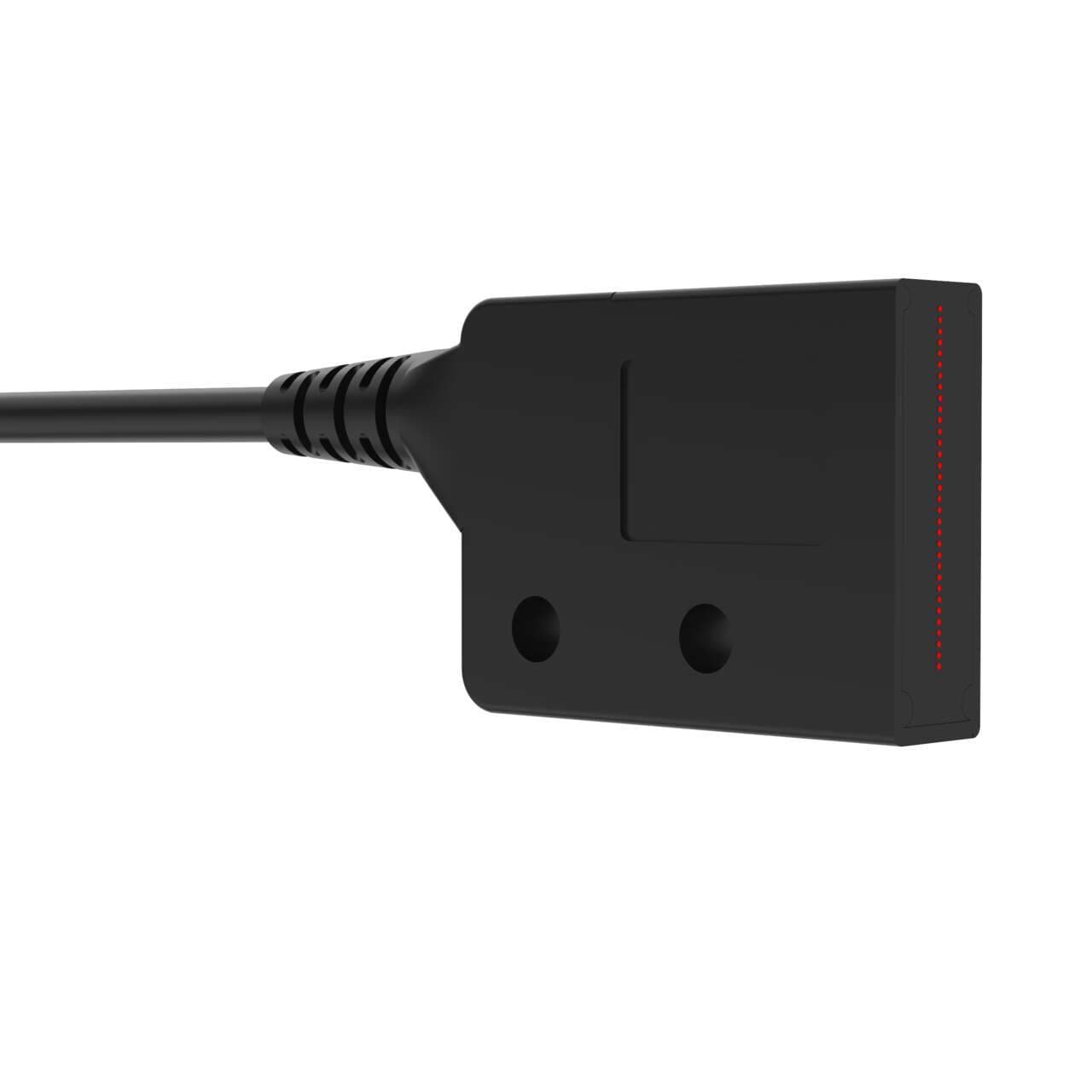

PIR1X326T-VL Banner Through Beam Sensors

PIR1X326T-VL on Powermatic Associates
Banner

Part#:PIR1X326T-VL

Manufacturer:Banner

Category:Through Beam Sensors

Alt. Part#:87530

Product Lifecycle:Active

Get a quick Quote!

Plastic Fiber, Opposed Mode; Core Dia.: 32 x 0.25 mm; Fiber Length 2 m; Rectangle W/Flex Relief; Vantage Line Terminated for use in Plastic Fiber Sensors

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PIR1X326T-VL Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    380.0193776 g
  • Country Of Origin
    TW
  • Max Distance: DF-G3 (mm)
    4418
  • Max Distance: DF-G1 (mm)
    569
  • Max Distance: DF-G2 (mm)
    921
  • Tariff Fiber Meters (fbm)
    128
  • Termination Type
    Plastic Fiber Sensors
  • Measured Max Distance (mm)
    569
  • Fiber Sensing End Size - Mounting Area
    19.0 x 25.0 mm
  • Application: Vacuum Feed Through
    None
  • Feature: Small Object Detection
    No
  • Application: Liquid Level
    No
  • Minimum Repeat Bending Endurance
    1000
  • Max Temp ( °C)
    70
  • Termination
    Terminated
  • Minimum Bend Radius (mm)
    60
  • Feature: Extended Range
    No
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Flex Relief
    Yes
  • Core Diameter (mm)
    32 x 0.3
  • Retractile
    No
  • Array Length (mm)
    14.5
  • Sensing End Segment 2
    Array
  • Fiber Length (m)
    2
  • Fiber Sensing End Size
    19.0 x 25.0 mm
  • Sensing End Segment 1
    Rectangle
  • Fiber Sensing End Tip
    Array
  • Housing Style
    Rectangular
  • Sensing End Material (Specific)
    Polyethylene
  • Quantity Included
    2
  • Max Range: DF-G3 (mm)
    >3m - <=5m
  • Beam Exit
    In-line
  • Sensing Mode (Detailed)
    Array
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Fiber Optic Type
    Plastic
  • Sensing Mode (General)
    Opposed
  • Primary brand
    Banner Engineering
  • Functions
    Fiber optic sensor
  • Shape
    Rectangular
  • Dimensions
    25x19mm sensing area
  • Main function
    Fiber sensor
  • Product series / family name
    Fiber sensors
  • Design
    through-beam system / opposed mode flex strain relief pair of individual fibers In-line sensing
  • Length
    6ft / 2m
  • Material
    Plastic sensing end Plastic fiber Polyethylene fiber sheath
  • Order code / Manufacturer SKU
    87530
  • Sub-range name
    Plastic fiber - Vantage Line
  • Diameter
    0.25mm fiber core
  • Equivalent to
    PIR1X326TVL
  • Ambient air temperature for operation
    +70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PIR1X326T-VL Description

Banner Engineering PIR1X326T-VL is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode flex strain relief pair of individual fibers for in-line sensing. This sensor falls under the Plastic fiber (Vantage Line) series, characterized by a 0.25mm fiber core diameter and a sensing area of 25x19mm with a rectangular shape. The sensing end and fiber are made of plastic, while the fiber sheath is constructed from Polyethylene (PE), ensuring compatibility with various applications. It has a length of 3ft / 1m and is designed to operate in ambient air temperatures up to +70°C.
