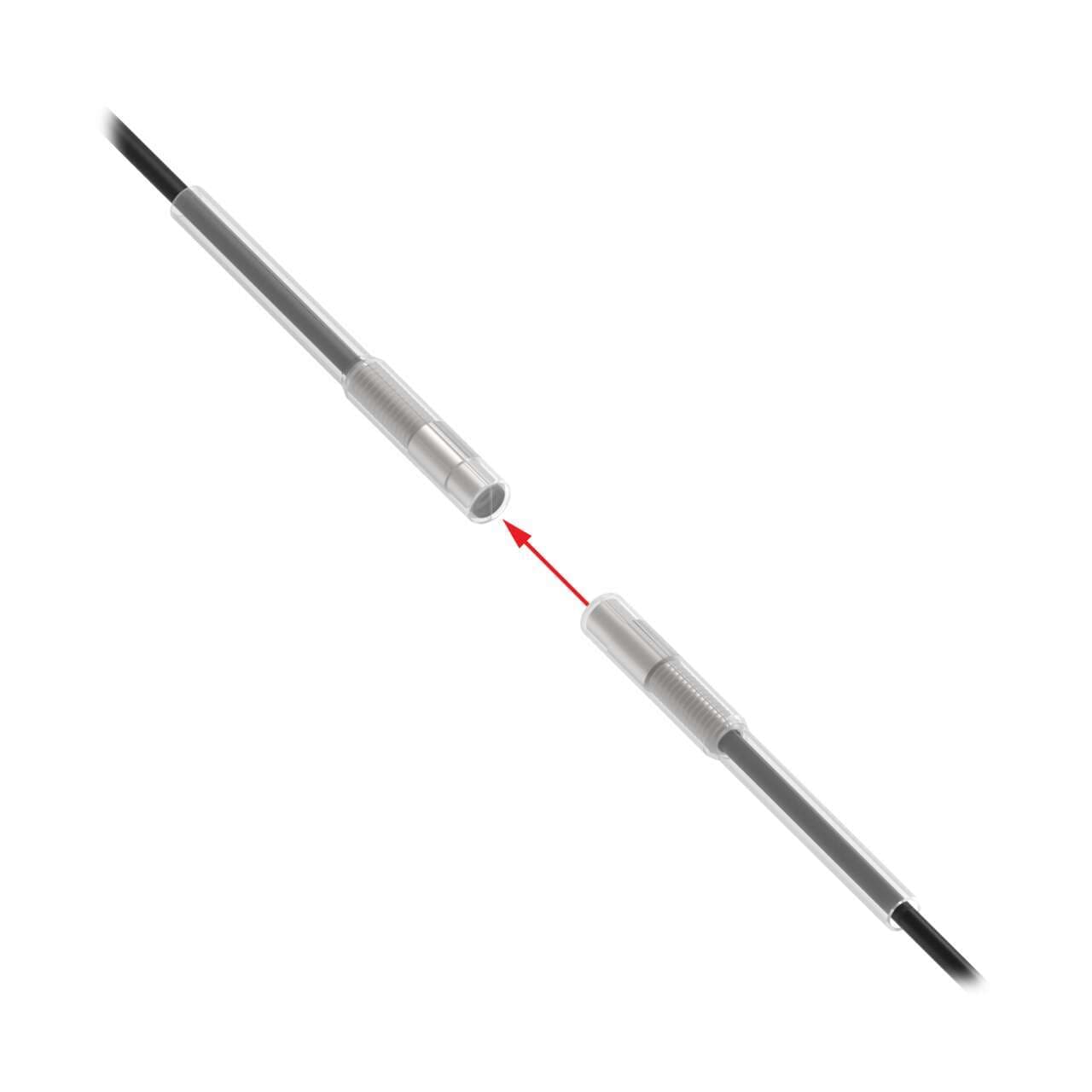

PIE46UT Banner Through Beam Sensors

Product Details

• Weight
  199.58048 g
• Country Of Origin
  JP
• Max Distance: DF-G3 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Measured Max Distance (mm)
  No Data
• Max Distance: DF-G1 (mm)
  No Data
• Fiber Sensing End Size - Mounting Area
  5.0 mm
• Tariff Fiber Meters (fbm)
  4
• Termination Type
  Plastic Fiber Sensors
• Application: Vacuum Feed Through
  None
• Feature: Extended Range
  No
• Feature: Chemical Resistant
  Yes
• Application: Liquid Level
  No
• Integrated Lens
  Yes
• Feature: Small Object Detection
  No
• Minimum Repeat Bending Endurance
  10000
• Termination
  Free Cut
• Max Temp ( °C)
  70
• Sensing End Segment 2
  Encapsulated
• Minimum Bend Radius (mm)
  25
Core Diameter (mm)
1
Retractile
No
Flex Relief
No
Sensing End Segment 1
Lens
Fiber Length (m)
2
Sensing End Material (Specific)
FEP
Beam Exit
In-line
Fiber Sheathing Material (Jacket)
FEP
Fiber Sensing End Tip
Encapsulated
Sensing Mode (General)
Opposed
Sensing Mode (Detailed)
Reflective
Fiber Sensing End Size
5.0 mm
Housing Style
Round
Fiber Optic Type
Plastic
Quantity Included
2
Primary brand
Banner Engineering
Design
through-beam system / opposed mode pair of individual fibers In-line sensing
Product series / family name
Fiber sensors
Order code / Manufacturer SKU
48040
Sub-range name
Plastic fiber series
Length
6ft / 2m
Functions
Fiber optic sensor
Diameter
5mm (end) 1mm fiber core
Main function
Fiber sensor
Ambient air temperature for operation
+70 °C
Material
FEP sensing end Plastic fiber FEP (fiber sheath)
