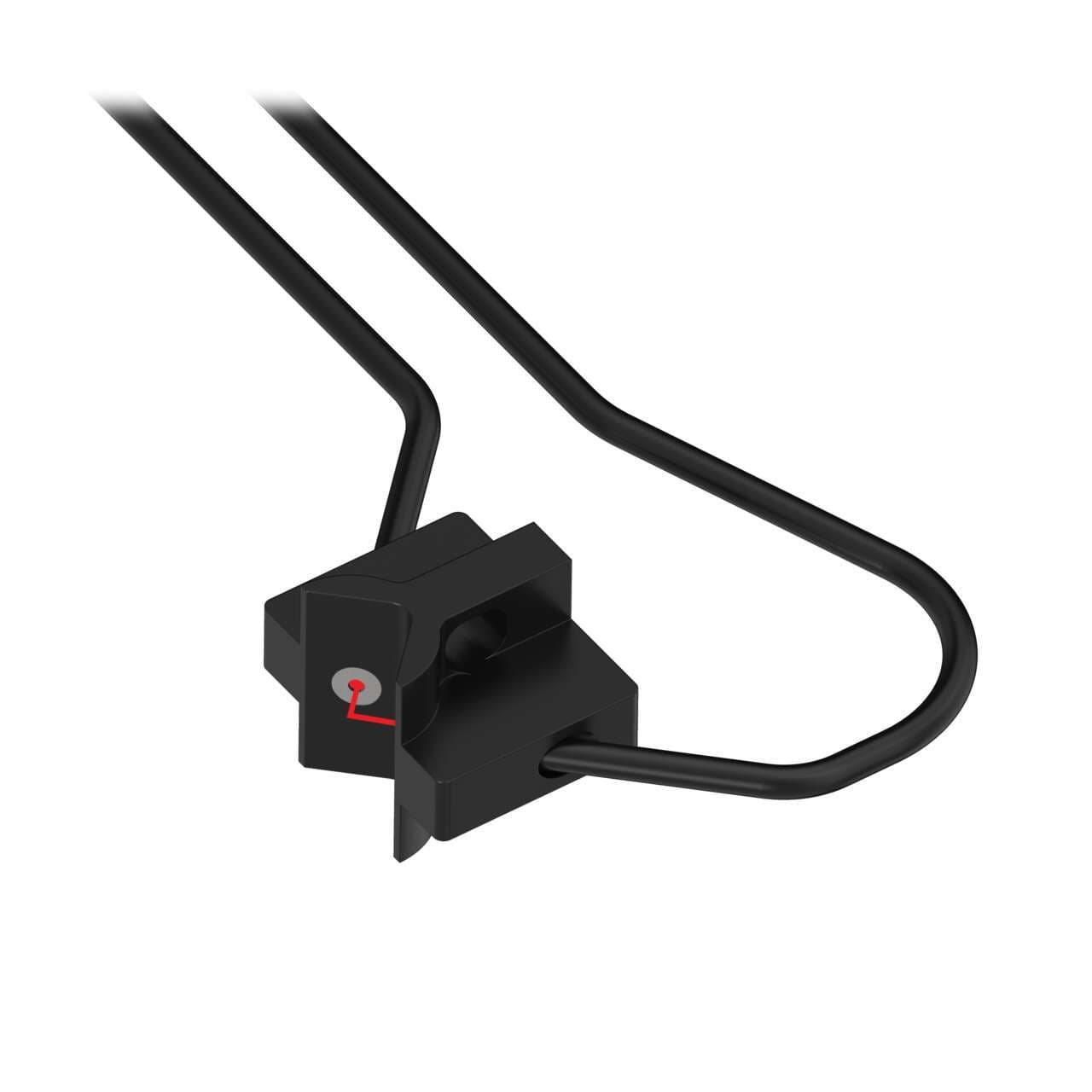

PDI46U-LLD Banner Through Beam Sensors

PDI46U-LLD on Powermatic Associates
Banner

Part#:PDI46U-LLD

Manufacturer:Banner

Category:Through Beam Sensors

Alt. Part#:61240

Product Lifecycle:Active

Get a quick Quote!

Plastic Fiber; Convergent; Core Dia.: 1 mm; Fiber Length 2 m; Liquid Level Sensing, Tube Mount; Free cut

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PDI46U-LLD Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    JP
  • Max Distance: DF-G1 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    15.2 x 20.0 mm
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    4
  • Measured Max Distance (mm)
    No Data
  • Feature: Small Object Detection
    No
  • Application: Liquid Level
    Yes
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Max Temp ( °C)
    70
  • Feature: Extended Range
    No
  • Integrated Lens
    No
  • Minimum Repeat Bending Endurance
    1000
  • Feature: Chemical Resistant
    No
  • Retractile
    No
  • Minimum Bend Radius (mm)
    2
  • Core Diameter (mm)
    1
  • Termination
    Free Cut
  • Housing Style
    Fixtured
  • Flex Relief
    No
  • Sensing End Segment 1
    Specialty
  • Fiber Sensing End Size
    15.2 x 20.0 mm
  • Fiber Length (m)
    2
  • Beam Exit
    In-line
  • Sensing End Material (Specific)
    Polyethylene
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Sensing Mode (General)
    Opposed
  • Fiber Sensing End Tip
    Specialty
  • Quantity Included
    1
  • Sensing Mode (Detailed)
    Slot
  • Fiber Optic Type
    Plastic
  • Functions
    Fiber optic sensor
  • Ambient air temperature for operation
    +70 °C
  • Primary brand
    Banner Engineering
  • Diameter
    1mm fiber core
  • Sub-range name
    Plastic fiber series
  • Design
    tube-mounting for liquid lev. sensing Dual individual fiber In-line sensing
  • Order code / Manufacturer SKU
    61240
  • Product series / family name
    Fiber sensors
  • Shape
    Rectangular
  • Main function
    Fiber sensor
  • Length
    6ft / 2m
  • Equivalent to
    PDI46ULLD
  • Material
    Plastic sensing end Plastic fiber Polyethylene fiber sheath

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PDI46U-LLD Description

Banner Engineering PDI46U-LLD is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers for in-line sensing. This sensor falls under the Plastic fiber series, with a 0.25mm fiber core diameter and a 6ft (approximately 2m) length. It is constructed with a plastic fiber and a polyethylene (PE) fiber sheath, ensuring compatibility with a variety of applications. The sensor operates effectively in ambient air temperatures up to +70°C and is designed with a slot shape for easy installation and alignment.

Related documents PDI46U-LLD Specs

PDI46U-LLD PDI4 SERIES LIQUID LEVEL DETECTION UNTERMINATED-1630954977617.stp
PDI46U-LLD PDI4 SERIES LIQUID LEVEL DETECTION UNTERMINATED-1630954977625.pdf

Manufacturer warranty
