PBT43U-VL Banner Through Beam Sensors

PBT43U-VL on Powermatic Associates
Banner
  • PBT43U-VL
  • PBT43U-VL

Part#:PBT43U-VL

Alt. Part#:87513

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

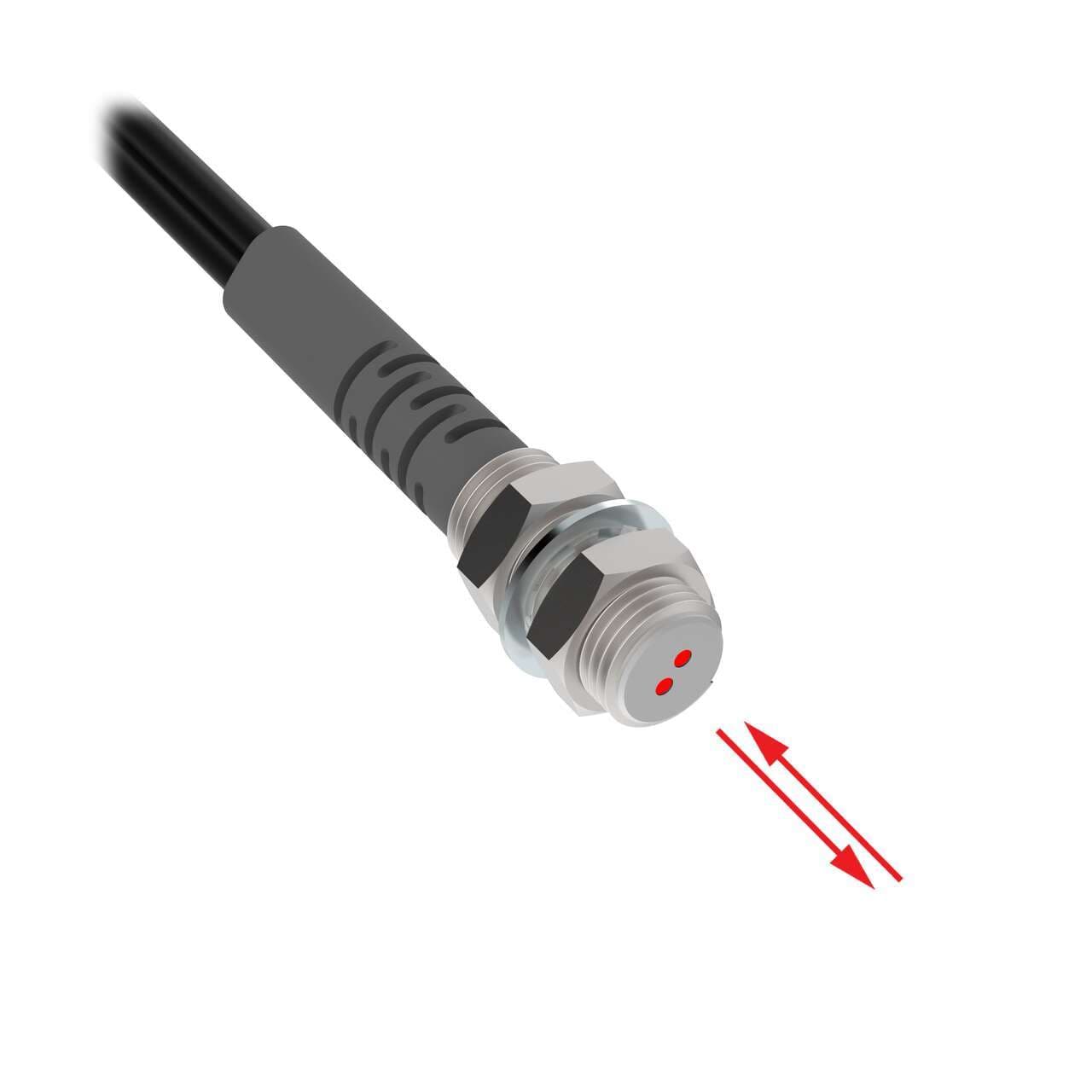

Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 1 m; Thread; Flex Relief; Free cut; Vantage Line

Product Details

  • Weight
    13.2448864 g
  • Country Of Origin
    TW
  • Max Distance: DF-G1 (mm)
    198
  • Max Distance: DF-G3 (mm)
    1540
  • Measured Max Distance (mm)
    198
  • Fiber Sensing End Size - Mounting Area
    M6
  • Termination Type
    Plastic Fiber Sensors
  • Max Distance: DF-G2 (mm)
    321
  • Tariff Fiber Meters (fbm)
    2
  • Feature: Small Object Detection
    No
  • Application: Liquid Level
    No
  • Application: Vacuum Feed Through
    None
  • Feature: Extended Range
    No
  • Integrated Lens
    No
  • Feature: Chemical Resistant
    No
  • Minimum Repeat Bending Endurance
    5000
  • Max Temp ( °C)
    70
  • Core Diameter (mm)
    1
  • Termination
    Free Cut
  • Minimum Bend Radius (mm)
    25
  • Fiber Sensing End Tip
    Thread
  • Flex Relief
    Yes
  • Retractile
    No
  • Fiber Sensing End Size
    M6
  • Fiber Length (m)
    1
  • Sensing End Segment 1
    Thread
  • Sensing Mode (General)
    Diffuse
  • Max Range: DF-G3 (mm)
    >1m - <=3m
  • Beam Exit
    In-line
  • Fiber Optic Type
    Plastic
  • Sensing End Material (Specific)
    Nickel-Plated Brass
  • Sensing Mode (Detailed)
    Reflective
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Housing Style
    Round
  • Quantity Included
    1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBT43U-VL on Powermatic Associates is $33.00. Order now.

About the product

Banner Engineering PBT43U-VL is a fiber optic sensor designed for diffuse-reflective system applications with a bifurcated fiber in-line sensing mechanism. It features a 1mm fiber core diameter and is part of the Plastic fiber series. The sensor has a cylindrical (threaded) end tip made of nickel-plated brass for the sensing end, while the fiber is constructed from plastic with a polyethylene (PE) fiber sheath. It is capable of operating in ambient air temperatures up to +85°C. The total length of the fiber is 60ft / 18m, accommodating a range of installation requirements.
