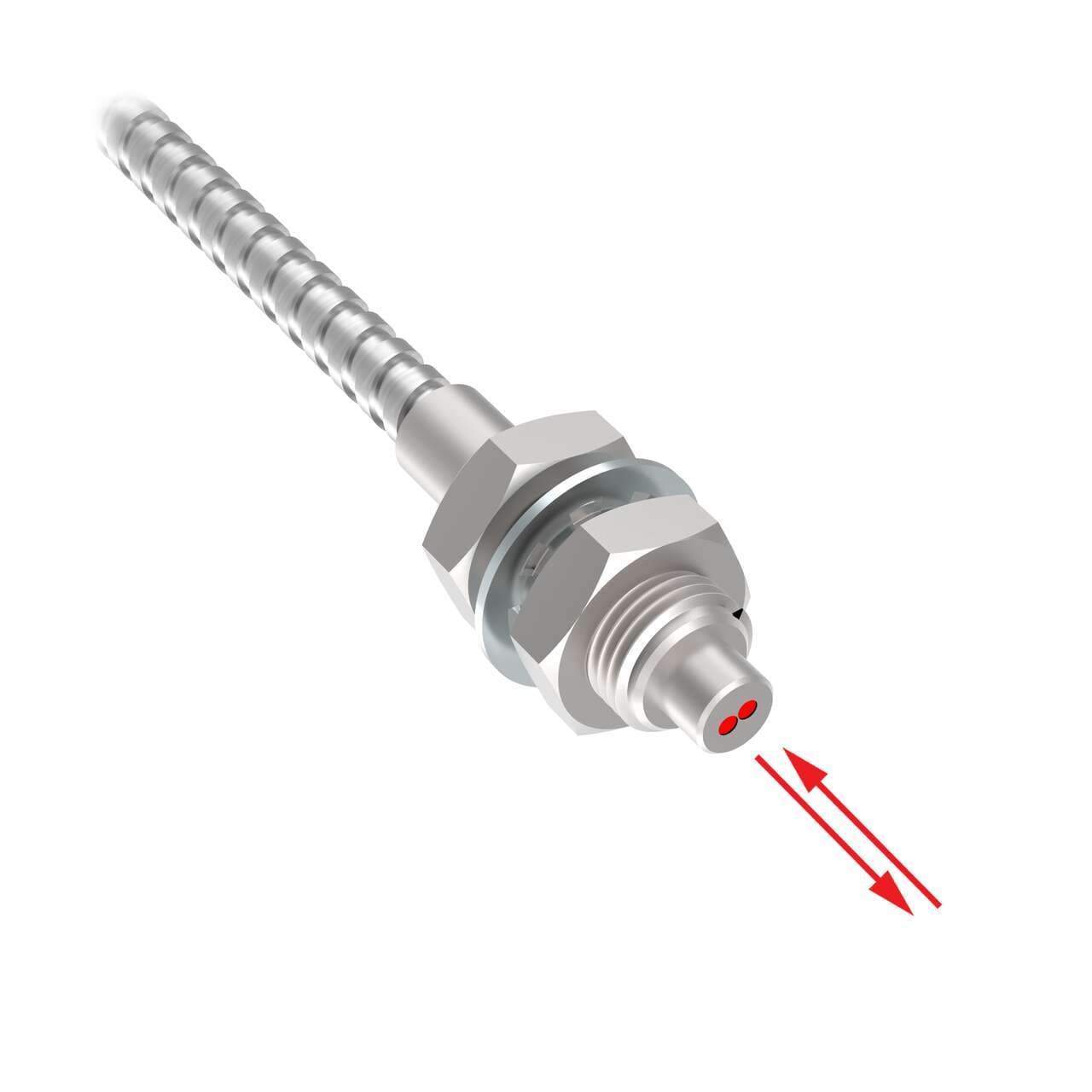

PBT43TSL5-VL Banner Through Beam Sensors

Product Details

• Weight
  45.3592 g
• Country Of Origin
  TW
• Application: Vacuum Feed Through
  None
• Fiber Sensing End Size - Mounting Area
  M6
• Termination Type
  Plastic Fiber Sensors
• Feature: Small Object Detection
  No
• Measured Max Distance (mm)
  310
• Max Distance: DF-G3 (mm)
  2409
• Tariff Fiber Meters (fbm)
  2
• Max Distance: DF-G1 (mm)
  310
• Max Distance: DF-G2 (mm)
  502
• Application: Liquid Level
  No
• Minimum Repeat Bending Endurance
  1000
• Integrated Lens
  No
• Max Temp ( °C)
  70
• Feature: Chemical Resistant
  No
• Termination
  Terminated
• Sensing End Segment 1
  Thread
• Feature: Extended Range
  No
• Core Diameter (mm)
  1
Flex Relief
No
Fiber Length (m)
1
Minimum Bend Radius (mm)
25
Fiber Sensing End Tip
Ferrule
Fiber Sensing End Size
4.0 mm
Sensing End Segment 2
Ferrule
Sensing End Material (Specific)
Stainless Steel
Fiber Sheathing Material (Jacket)
Stainless Steel Monocoil
Retractile
No
Fiber Optic Type
Plastic
Beam Exit
In-line
Max Range: DF-G3 (mm)
>1m - <=3m
Sensing Mode (Detailed)
Reflective
Housing Style
Round
Quantity Included
1
Sensing Mode (General)
Diffuse
Product series / family name
Fiber sensors
Length
3ft / 1m
Equivalent to
PBT43TSL5VL
Main function
Fiber sensor
Design
diffuse-reflective system Bifurcated fiber In-line sensing
Thread size
M6
Material
Stainless steel sensing end Plastic fiber stainless flexible tubing (fiber sheath)
Sub-range name
Plastic fiber - Vantage Line
Diameter
1mm fiber core
Primary brand
Banner Engineering
Functions
Fiber optic sensor
Shape
Cylindrical (threaded) end tip
Ambient air temperature for operation
+70 °C
Order code / Manufacturer SKU
93948

PBT43TSL5-VL Related Documents
