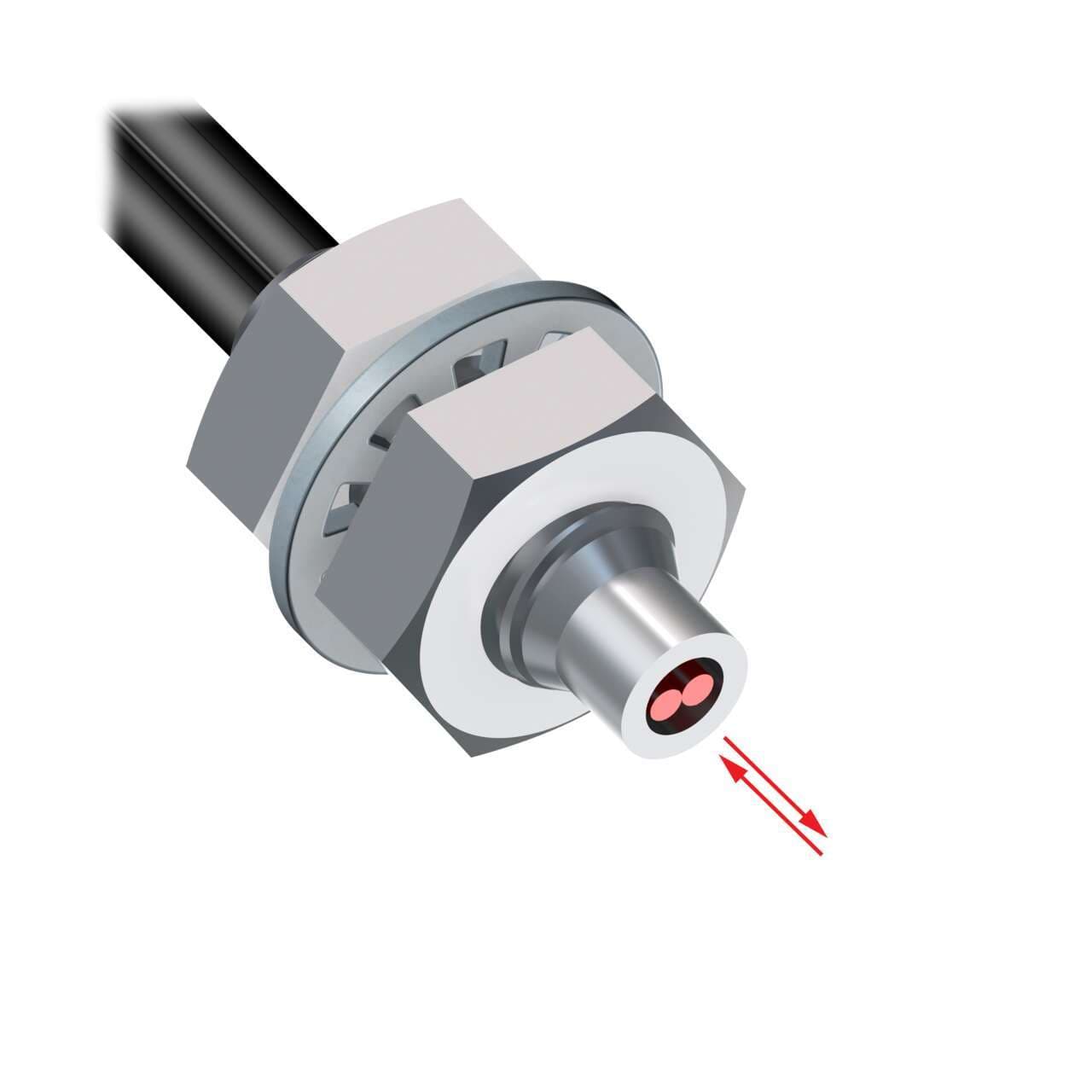

PBT415U Banner Through Beam Sensors

Product Details

• Weight
  74.84268 g
• Country Of Origin
  JP
• Max Distance: DF-G3 (mm)
  No Data
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Measured Max Distance (mm)
  No Data
• Tariff Fiber Meters (fbm)
  10
• Termination Type
  Plastic Fiber Sensors
• Application: Liquid Level
  No
• Fiber Sensing End Size - Mounting Area
  M6
• Feature: Small Object Detection
  No
• Application: Vacuum Feed Through
  None
• Minimum Repeat Bending Endurance
  5000
• Feature: Extended Range
  No
• Integrated Lens
  No
• Feature: Chemical Resistant
  No
• Max Temp ( °C)
  85
• Termination
  Free Cut
• Minimum Bend Radius (mm)
  25
• Core Diameter (mm)
  1
Flex Relief
No
Retractile
No
Sensing End Segment 1
Thread
Fiber Sensing End Size
4.0 mm
Housing Style
Round
Fiber Length (m)
4.572
Fiber Sensing End Tip
Thread
Fiber Optic Type
Plastic
Fiber Sheathing Material (Jacket)
Polyethylene
Sensing End Material (Specific)
Nickel-Plated Brass
Sensing Mode (General)
Diffuse
Quantity Included
1
Beam Exit
In-line
Sensing Mode (Detailed)
Reflective
Primary brand
Banner Engineering
Diameter
1mm fiber core
Order code / Manufacturer SKU
26564
Functions
Fiber optic sensor
Ambient air temperature for operation
+70 °C
Sub-range name
Plastic fiber series
Thread size
M6
Product series / family name
Fiber sensors
Shape
Cylindrical (threaded) end tip
Length
15ft / 4.5m
Main function
Fiber sensor
Design
diffuse-reflective system Bifurcated fiber
Material
Nickel-plated brass sensing end Plastic fiber Polyethylene fiber sheath
