PBR1X166T Banner Through Beam Sensors

PBR1X166T on Powermatic Associates
Banner

Part#:PBR1X166T

Alt. Part#:42830

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

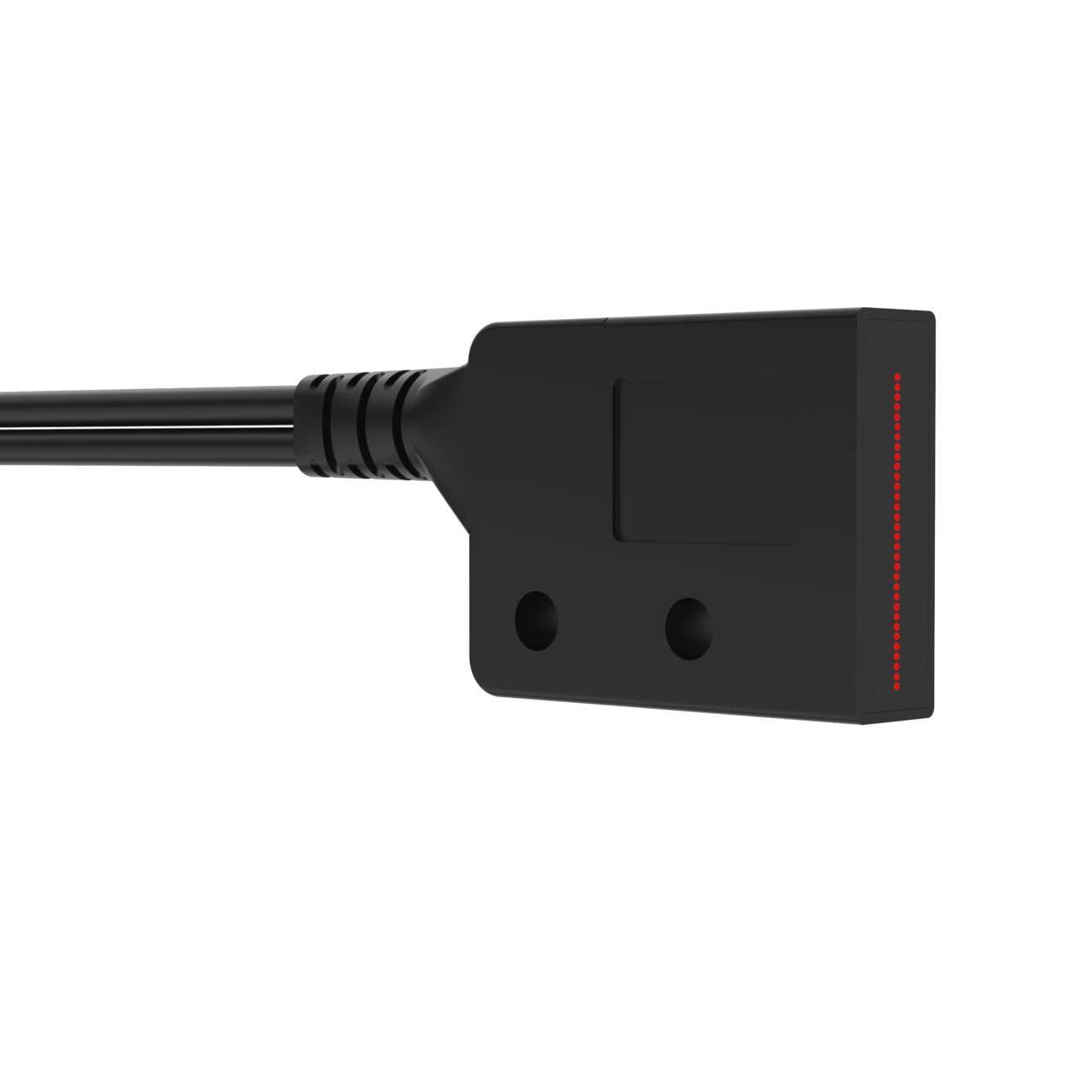

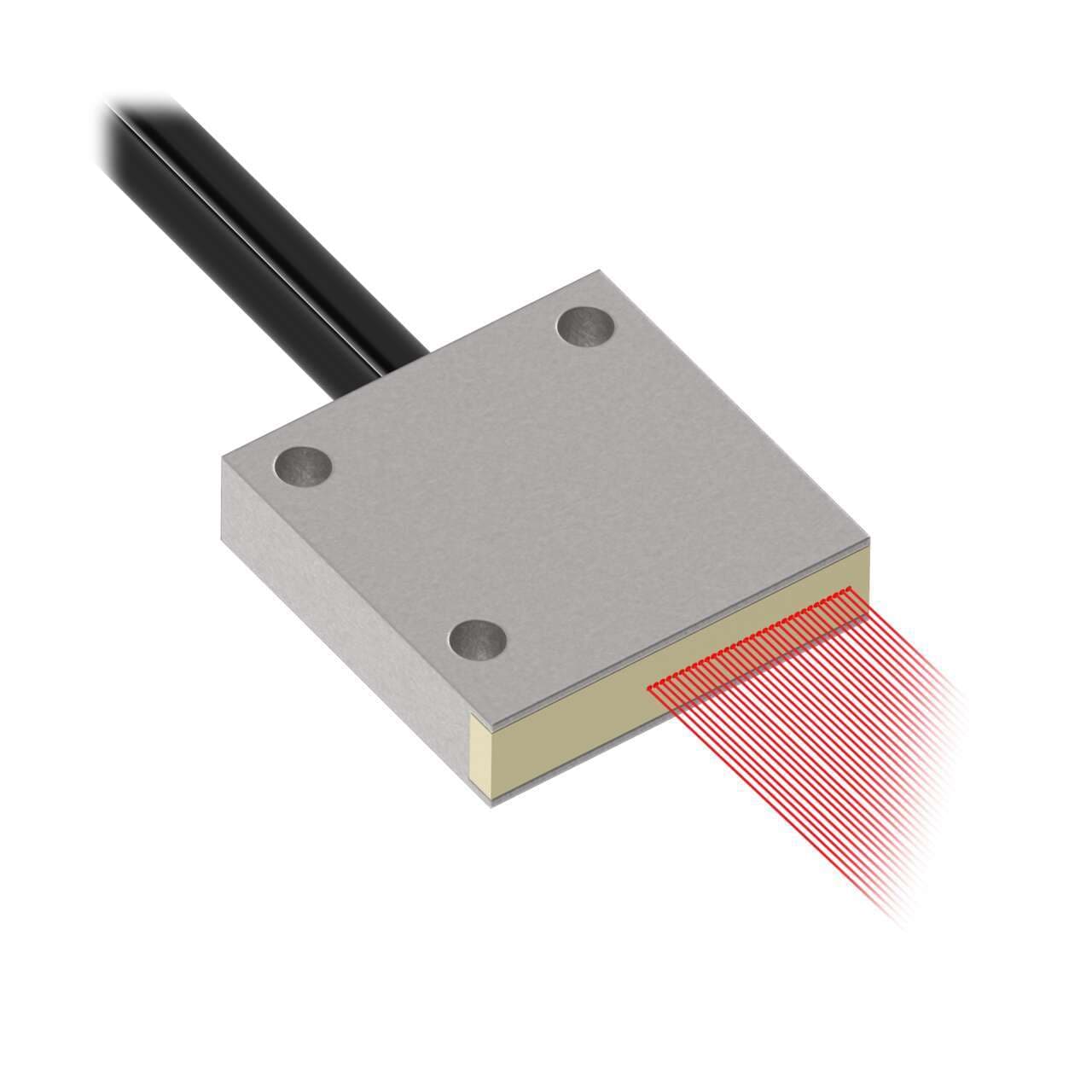

Plastic Fiber, Diffuse Reflective; Core Dia.: 16 x 0.25 mm; Fiber Length 2 m; Rectangle; T Termination

Product Details

  • Weight
    36.28736 g
  • Country Of Origin
    JP
  • Measured Max Distance (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    64
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    15.0 x 15.0 mm
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Feature: Small Object Detection
    Yes
  • Feature: Extended Range
    No
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Minimum Repeat Bending Endurance
    10000
  • Sensing End Segment 3
    Array
  • Max Temp ( °C)
    70
  • Termination
    Terminated
  • Minimum Bend Radius (mm)
    5
  • Flex Relief
    No
  • Array Length (mm)
    5.3
  • Sensing End Segment 1
    Rectangle
  • Retractile
    No
  • Core Diameter (mm)
    16 x 0.3
  • Sensing End Segment 2
    Sideview
  • Fiber Sensing End Size
    15.0 x 15.0 mm
  • Fiber Length (m)
    2
  • Fiber Sensing End Tip
    Array
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Sensing End Material (Specific)
    Aluminum
  • Beam Exit
    In-line
  • Sensing Mode (General)
    Diffuse
  • Sensing Mode (Detailed)
    Array
  • Quantity Included
    1
  • Fiber Optic Type
    Plastic
  • Housing Style
    Rectangular

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBR1X166T on Powermatic Associates is $129.00. Order now.

About the product

Banner Engineering PBR1X166T is a fiber optic sensor designed for diffuse-reflective system applications, featuring a probe tip with a bifurcated fiber side and a right-angled sensing orientation. This sensor falls under the Plastic fiber series and is equipped with a 1.5mm fiber core diameter. The cylindrical (smooth) probe tip is constructed from stainless steel, while the fiber is made of plastic, and the fiber sheath is composed of polyethylene (PE). It has a length of 6ft / 2m and is capable of operating in ambient air temperatures up to +70°C.
