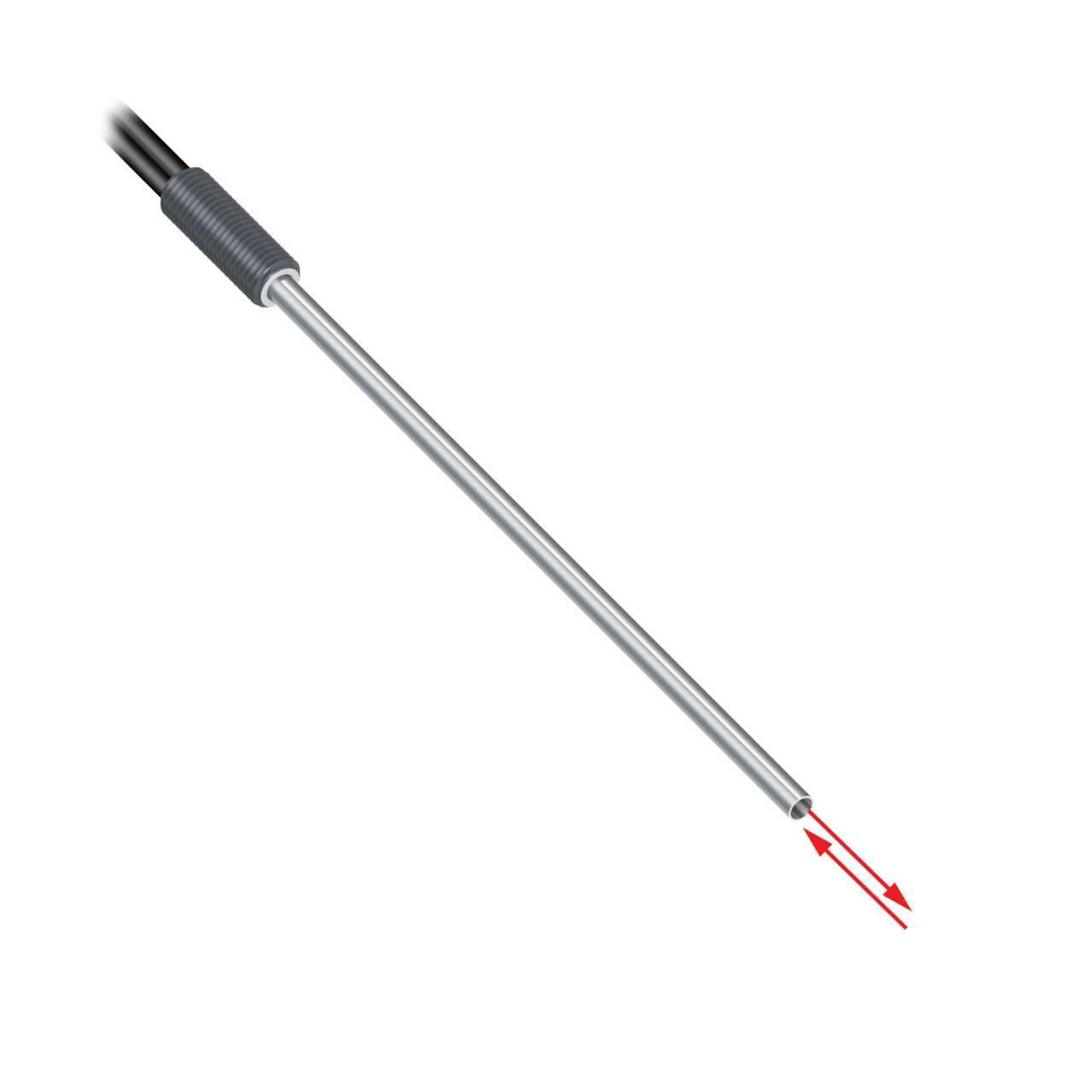

PBP46U Banner Through Beam Sensors
Part#:PBP46U
Alt. Part#:26084
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 2 m; Probe; Free cut
Product Details
- Weight 56.245408 g
- Country Of Origin JP
- Termination Type Plastic Fiber Sensors
- Fiber Sensing End Size - Mounting Area M6
- Feature: Extended Range No
- Retractile No
- Quantity Included 1
- Max Distance: DF-G2 (mm) No Data
- Max Distance: DF-G3 (mm) No Data
- Measured Max Distance (mm) No Data
- Max Distance: DF-G1 (mm) No Data
- Tariff Fiber Meters (fbm) 4
- Application: Vacuum Feed Through None
- Application: Liquid Level No
- Feature: Small Object Detection No
- Feature: Chemical Resistant No
- Integrated Lens No
- Minimum Repeat Bending Endurance 5000
- Max Temp ( °C) 85
- Flex Relief No
- Termination Free Cut
- Minimum Bend Radius (mm) 25
- Sensing End Segment 2 Bendable-Probe
- Core Diameter (mm) 1
- Fiber Length (m) 2
- Sensing End Segment 1 Thread
- Fiber Sensing End Size 3.0 mm
- Fiber Sheathing Material (Jacket) Polyethylene
- Fiber Optic Type Plastic
- Sensing Mode (General) Diffuse
- Fiber Sensing End Tip Bendable-Probe
- Sensing End Material (Specific) Stainless Steel
- Beam Exit In-line
- Sensing Mode (Detailed) Reflective
- Housing Style Round
- Functions Fiber optic sensor
- Order code / Manufacturer SKU 26084
- Primary brand Banner Engineering
- Design diffuse-reflective system Bifurcated fiber
- Diameter 3mm (end) 1mm fiber core
- Product series / family name Fiber sensors
- Material Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
- Main function Fiber sensor
- Shape Cylindrical (smooth) probe tip
- Ambient air temperature for operation +70 °C
- Sub-range name Plastic fiber series
- Length 6ft / 2m
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBP46U on Powermatic Associates is $65.00. Order now.
About the product
Banner Engineering PBP46U is a fiber optic sensor designed for diffuse-reflective system applications, featuring a probe tip bifurcated fiber in-line sensing mechanism. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber series and comes with a cylindrical (threaded) probe tip. The design incorporates a 3mm diameter at the sensing end and a 1mm fiber core. It is constructed with a stainless steel sensing end and a plastic fiber polyethylene (PE) fiber sheath, ensuring durability and compatibility with various environments. The total length of the sensor is 6ft / 2m, facilitating flexible installation options.
