PBE46UTMLLPHT1 Banner Through Beam Sensors

PBE46UTMLLPHT1 on Powermatic Associates
Banner

Part#:PBE46UTMLLPHT1

Manufacturer:Banner

Category:Through Beam Sensors

Alt. Part#:51830

Product Lifecycle:Active

Get a quick Quote!

Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 2 m; Encapsulated; Chemical Resistant, Free cut

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PBE46UTMLLPHT1 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    179.4409952 g
  • Country Of Origin
    JP
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Termination Type
    Plastic Fiber Sensors
  • Tariff Fiber Meters (fbm)
    4
  • Minimum Repeat Bending Endurance
    1000
  • Flex Relief
    No
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    6.0 mm
  • Measured Max Distance (mm)
    No Data
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    Yes
  • Feature: Small Object Detection
    No
  • Integrated Lens
    No
  • Feature: Chemical Resistant
    Yes
  • Max Temp ( °C)
    105
  • Termination
    Free Cut
  • Minimum Bend Radius (mm)
    15
  • Sensing End Segment 1
    Encapsulated
  • Retractile
    No
  • Housing Style
    Round
  • Fiber Length (m)
    2
  • Sensing Mode (Detailed)
    Reflective
  • Fiber Optic Type
    Plastic
  • Fiber Sensing End Tip
    Encapsulated
  • Sensing End Material (Specific)
    FEP
  • Fiber Sheathing Material (Jacket)
    FEP
  • Beam Exit
    In-line
  • Sensing Mode (General)
    Diffuse
  • Quantity Included
    1
  • Feature: Extended Range
    No
  • Core Diameter (mm)
    1
  • Fiber Sensing End Size
    6.0 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PBE46UTMLLPHT1 Description

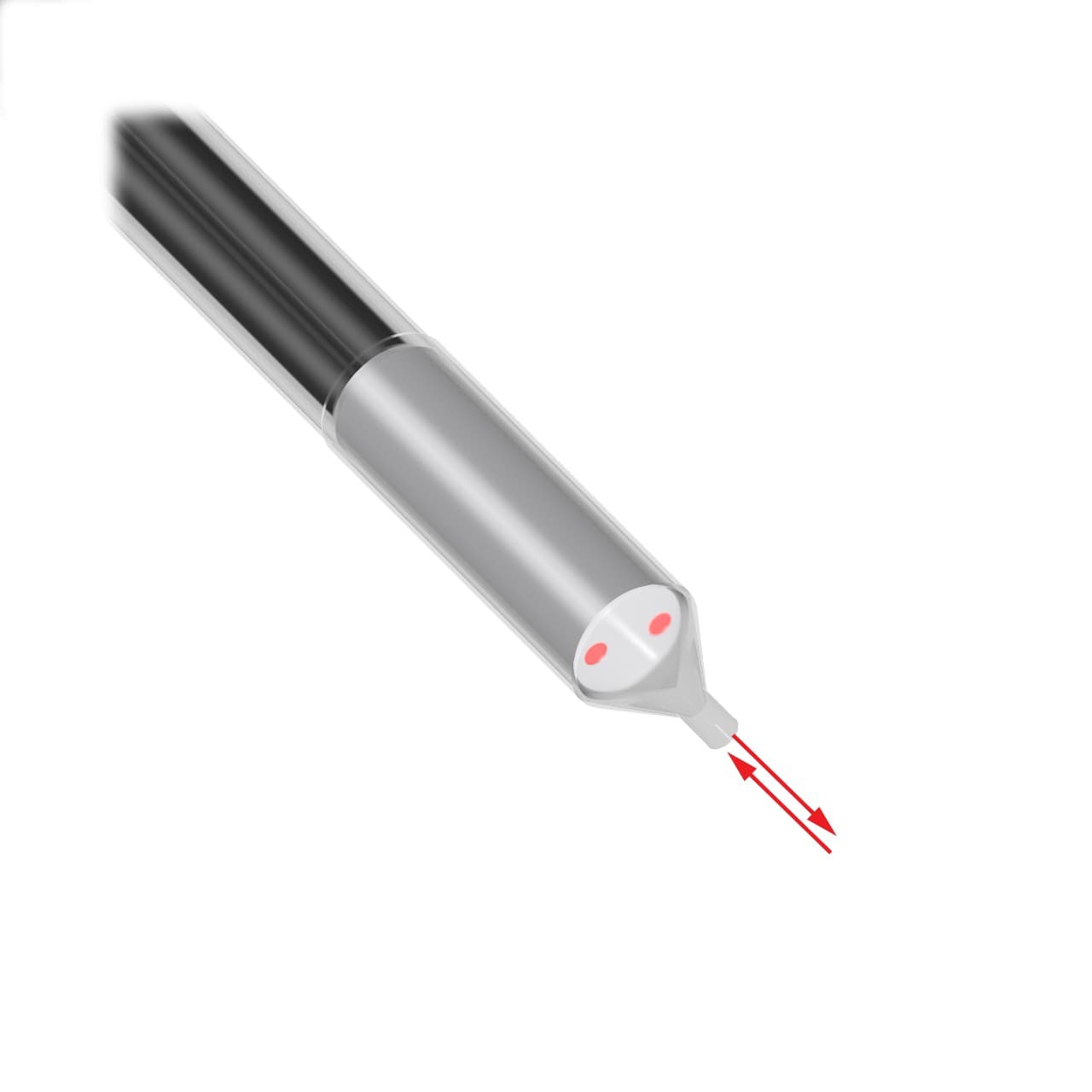

Banner Engineering PBE46UTMLLPHT1 is a fiber optic sensor designed for diffuse-reflective system applications with a bifurcated fiber in-line sensing mechanism. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber series and features a cylindrical (smooth) end tip with a diameter of 6mm at the end and a 1mm fiber core. The sensing end is made of FEP, and it is complemented by a plastic fiber with an FEP fiber sheath for enhanced durability. The total length of the sensor is 6ft / 2m, accommodating various installation requirements.

Related documents PBE46UTMLLPHT1 Specs

PBE46UTMLLPHT1 PBE4 SERIES TEFLON ENCAPSULATED UNTERMINATED-1630955270873.pdf
PBE46UTMLLPHT1 PBE4 SERIES TEFLON ENCAPSULATED UNTERMINATED-1630955270875.stp

Manufacturer warranty

$479.00
