PBAT43TSL5TA-VL Banner Through Beam Sensors

Name: PBAT43TSL5TA-VL
Brand: Banner
Price: 146 USD
Availability: BackOrder

PBAT43TSL5TA-VL on Powermatic Associates

Part#:PBAT43TSL5TA-VL

Manufacturer:Banner

Alt. Part#:93946

Product Lifecycle:Active

Get a quick Quote!

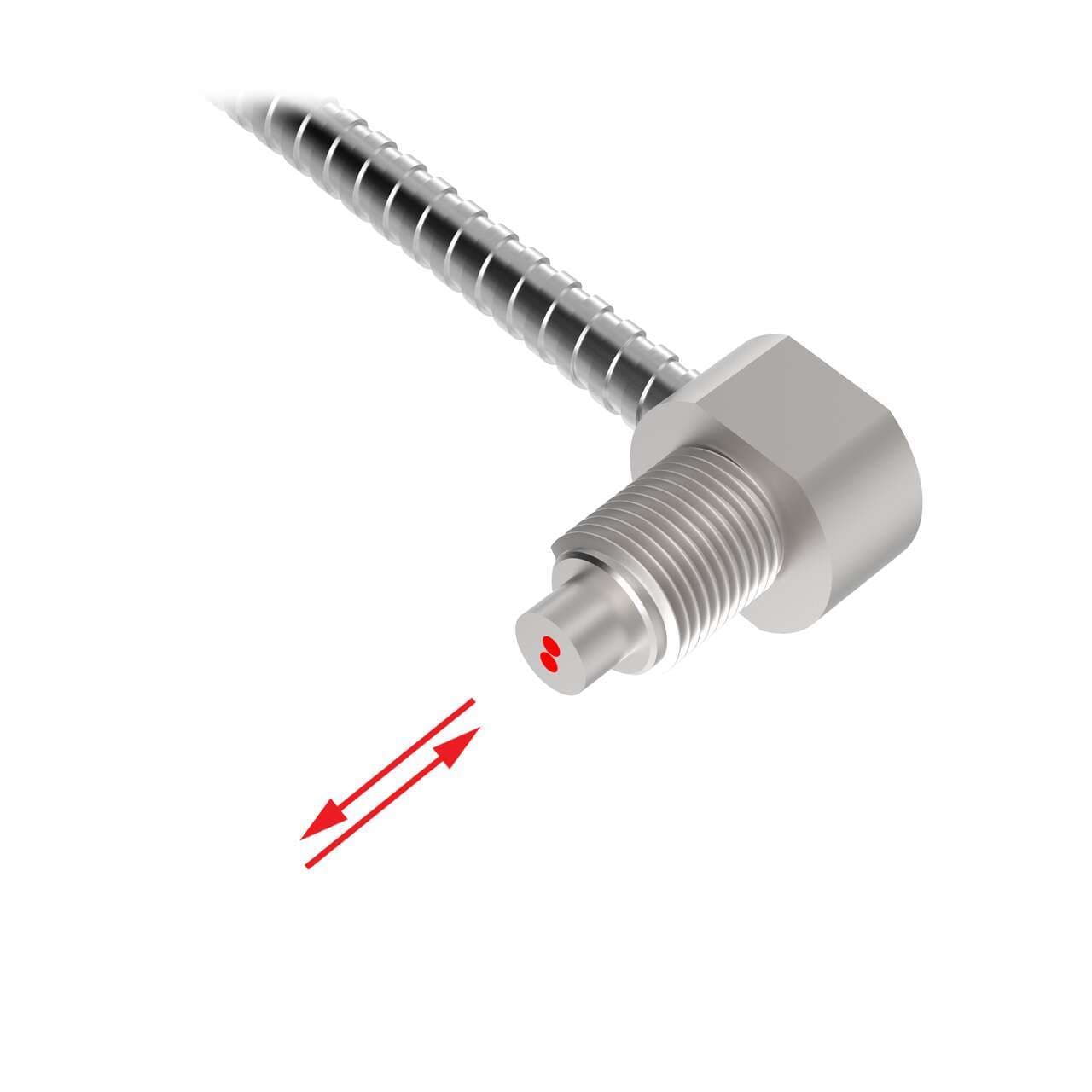

Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 1 m; Right-Angle, Thread M6; Stainless Protective Jacket; 25 mm Bend Radius; Vantage Line

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PBAT43TSL5TA-VL Banner price in the box on the right side or send a quick quote.

Product Details

Weight
45.3592 g
Country Of Origin
TW
Measured Max Distance (mm)
268
Max Distance: DF-G2 (mm)
434
Max Distance: DF-G1 (mm)
268
Tariff Fiber Meters (fbm)
2
Max Distance: DF-G3 (mm)
2084
Fiber Sensing End Size - Mounting Area
M6
Termination Type
Plastic Fiber Sensors
Minimum Bend Radius (mm)
25
Application: Vacuum Feed Through
None
Application: Liquid Level
No
Feature: Small Object Detection
No
Feature: Extended Range
No
Feature: Chemical Resistant
No
Integrated Lens
No
Minimum Repeat Bending Endurance
1000
Max Temp ( °C)
70
Termination
Terminated
Core Diameter (mm)
1

Retractile

Flex Relief

Sensing End Segment 3

Ferrule

Sensing End Segment 1

Angle

Sensing End Segment 2

Thread

Fiber Sensing End Size

4.0 mm

Fiber Length (m)

Fiber Sensing End Tip

Ferrule

Sensing End Material (Specific)

Stainless Steel

Sensing Mode (Detailed)

Reflective

Fiber Sheathing Material (Jacket)

Stainless Steel Monocoil

Beam Exit

Right Angle

Sensing Mode (General)

Diffuse

Fiber Optic Type

Plastic

Quantity Included

Housing Style

Round

Max Range: DF-G3 (mm)

>1m - <=3m

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PBAT43TSL5TA-VL Description

Banner Engineering PBAT43TSL5TA-VL is a fiber optic sensor designed for diffuse-reflective system applications with a flex strain relief bifurcated fiber side and right-angled sensing. It features a 1mm fiber core diameter and is part of the Plastic fiber (Vantage Line) series. The sensor has a cylindrical (threaded) end tip shape, with the sensing end made of stainless steel and the fiber sheath constructed from polyethylene (PE). It is designed to operate in ambient air temperatures up to +70°C and has a length of 3ft / 1m.
