P4ORS-OC Banner Sensors & Transducers

Name: P4ORS-OC
Brand: Banner

Part#:P4ORS-OC

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

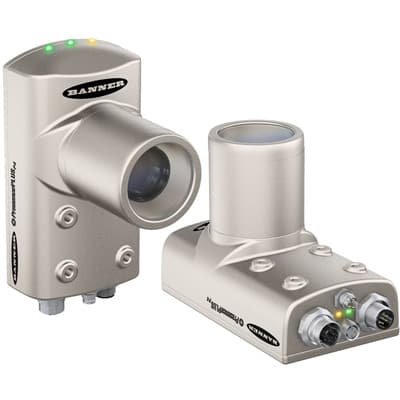

Right-angle vision / inspection camera (0.3Mpixel) with OCR/OCV - Banner Engineering (PresencePLUS series - P4 OMNI Sealed) - Part #10419 - 640x480pixels resolution (Monochrome / Grayscale sensing) - 4 x digital outputs (PNP/NPN transistors) - Supply volt

Product Details

Product series / family name
PresencePLUS series
Image sensor characteristics
640x480pixels Monochrome / Grayscale sensing
Mounting mode
C-mount
Order code / Manufacturer SKU
10419
Net Depth (mm)
52 mm
Sub-range name
P4 OMNI Sealed
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Digital outputs
4 x digital outputs (PNP/NPN transistors)
Equivalent to
P4ORSOC
Net Width (mm)
70 mm
Functions
Right-angle vision / inspection camera (0.3Mpixel) green LED (power ON) yellow LED (output state)
Connection type
Pre-equipped with 8-pin Euro-style M12 female connector
Degree of protection
IP68
Ambient air temperature for operation
0...+50 °C
Primary brand
Banner Engineering
Design
OCR/OCV
Net Height (mm)
130 mm
Main function
Sensor (Vision)
Communication protocol
Ethernet Modbus TCP RS-232
Material
Nicke-plated die-cast Aluminium housing

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
