P4OR-BCOC Banner Sensors & Transducers

Name: P4OR-BCOC
Brand: Banner

Part#:P4OR-BCOC

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

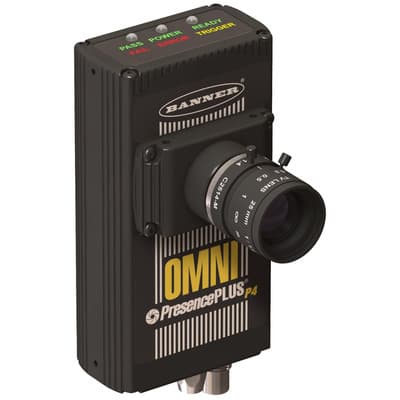

Banner Engineering P4OR-BCOC is a sensor designed for right-angle vision and inspection tasks, featuring a 0.3 Megapixel camera. It is part of the P4 OMNI series and utilizes OCR/OCV technology for its operations. This sensor is mounted using a C-mount and is suitable for ambient air temperatures ranging from 0 to +50 degrees Celsius. It has a net height of 125 mm, a width of 67 mm, and a depth of 56 mm. The housing is made of black anodized aluminum with a glass lens, ensuring durability. For connectivity, it is pre-equipped with an RJ45 connector and supports Ethernet, Modbus TCP, and RS-232 communication protocols. The P4OR-BCOC operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It offers four digital outputs (PNP/NPN transistor) and is protected to IP20 NEMA 1 standards.

Product Details

Connection type
Pre-equipped with RJ45 connector
Digital outputs
4 x digital outputs (PNP/NPN transistors)
Order code / Manufacturer SKU
79911
Main function
Sensor (Vision)
Functions
Right-angle vision / inspection camera (0.3Mpixel) green LED (power ON) yellow LED (output state)
Product series / family name
PresencePLUS series
Communication protocol
Ethernet Modbus TCP RS-232
Degree of protection
IP20 NEMA 1
Equivalent to
P4ORBCOC
Net Depth (mm)
56 mm
Sub-range name
P4 OMNI
Design
barcode reader OCR/OCV
Ambient air temperature for operation
0...+50 °C
Net Width (mm)
67 mm
Primary brand
Banner Engineering
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Mounting mode
C-mount
Net Height (mm)
125 mm
Image sensor characteristics
640x480pixels Monochrome / Grayscale sensing
Material
Black anodized Aluminium housing Glass lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
