OS80PMMG1XGQ on Powermatic Associates
Banner

Part#:OS80PMMG1XGQ

Manufacturer:Banner

Alt. Part#:804820

Product Lifecycle:Active

Get a quick Quote!

OS80 Operator Station: Push Button, Green; Momentary (Spring Return); 1-Color; Voltage: 12-30 V dc; Housing: Polycarbonate; IP40; Output: PNP 1 NO; Colors: Green; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Pilot Devices Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the OS80PMMG1XGQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    340.194 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Secondary Material
    Polyamide
  • Min Op. Temperature (°C)
    -25
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • Storage Temp (°C)
    -40 to 70
  • Environmental Rating
    IP40
  • Physical Dimensions (LxWxH or DxH mm)
    80.0 x 108.6
  • Max Op. Temperature (°C)
    55
  • Max Output Response Time (ms)
    50
  • Input Type
    PNP
  • I/O Block Compatible
    Yes
  • Output Type
    PNP
  • Supply Voltage
    12-30 V dc
  • Operation
    Normally Open
  • Max Current Color (mA)
    135
  • Animation Option 1
    Solid On
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Color Option 1
    Green
  • Number of Input Pins/Conductors
    5
  • Color Technology
    Standard LED
  • Number of Colors / Segments
    1
  • Product Size (mm)
    80
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Activation Function
    Push-Button
  • Mounting Thread
    M30 x 1.5
  • Housing Style
    Base Mount - Dome Window
  • Primary Housing Material
    Polycarbonate
  • Actuation
    Yes
  • Power Source
    DC
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

OS80PMMG1XGQ Description

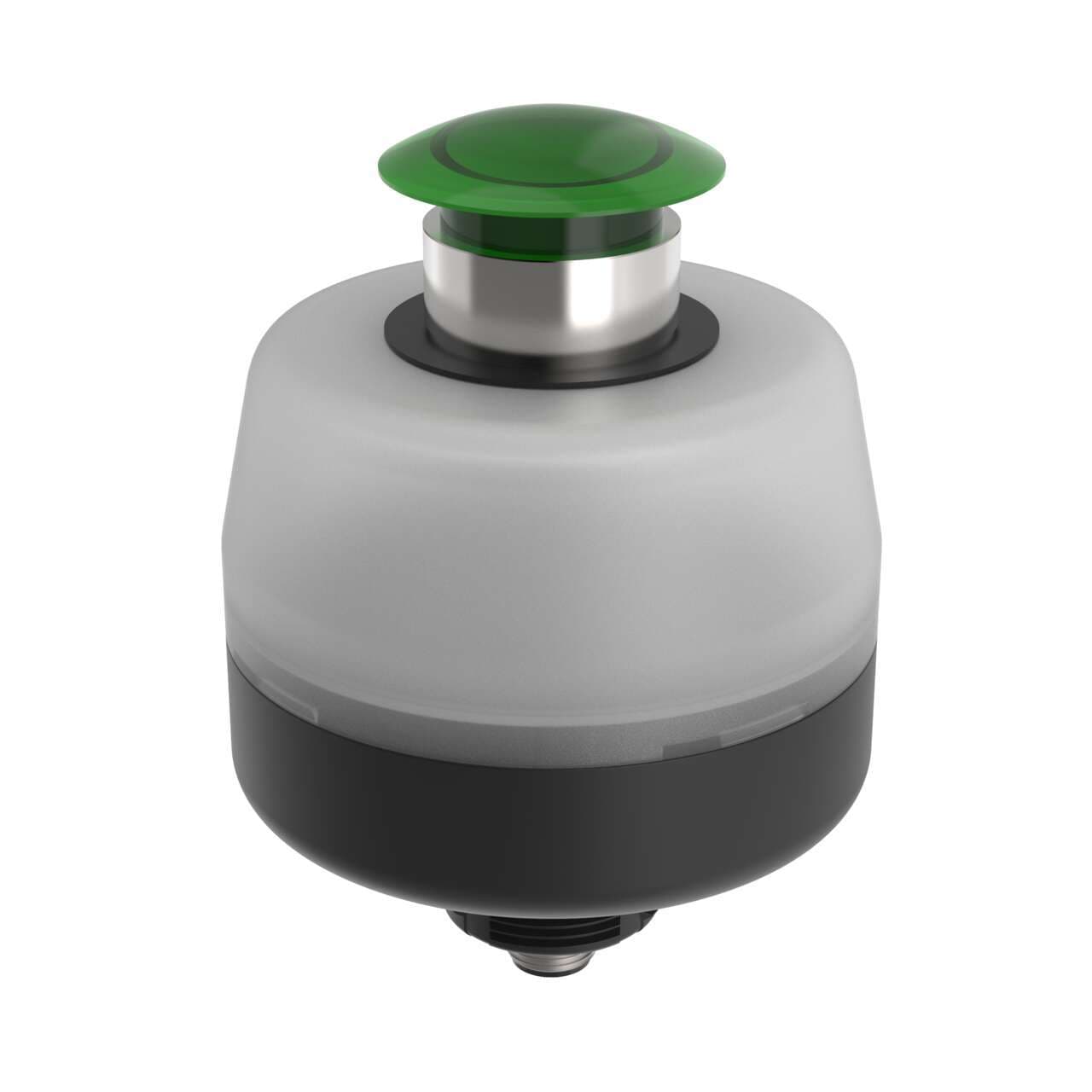

Banner Engineering OS80PMMG1XGQ is a control station featuring an illuminated push-button operator station designed for surface or base mounting with an M30 thread. It operates within an ambient air temperature range of -25°C to +55°C. The design is I.O. block compatible, offering 1-color LED illumination that is not activated (No color) or activated (Green). It has a 40mm mushroom head and an 80mm housing diameter, and it is pre-equipped with a 5-pin M12 Euro-style QD connector. This control station has an IP40 degree of protection and requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal. The materials used include a Polyamide (PA) button and a Polycarbonate (PC) base, with the button in green and the housing in black. It operates in a momentary NO (Normally Open) touch output mode, includes 1 x digital output (12-30Vdc; PNP), 1 NO auxiliary contact, and no NC (Normally Closed) auxiliary contacts. Additionally, it features 1 x digital input (12-30Vdc; PNP) for color control and has a current consumption of 135mA.

Related documents OS80PMMG1XGQ Specs

OS80PMMG1XGQ 205302.pdf

Manufacturer warranty

$321.00

Request a quote, and we will send availability within minutes.

Select Qty:

$321.00

$321.00 each
