OS80PMMB1XBQ Banner Pilot Devices Accessories

Name: OS80PMMB1XBQ
Brand: Banner

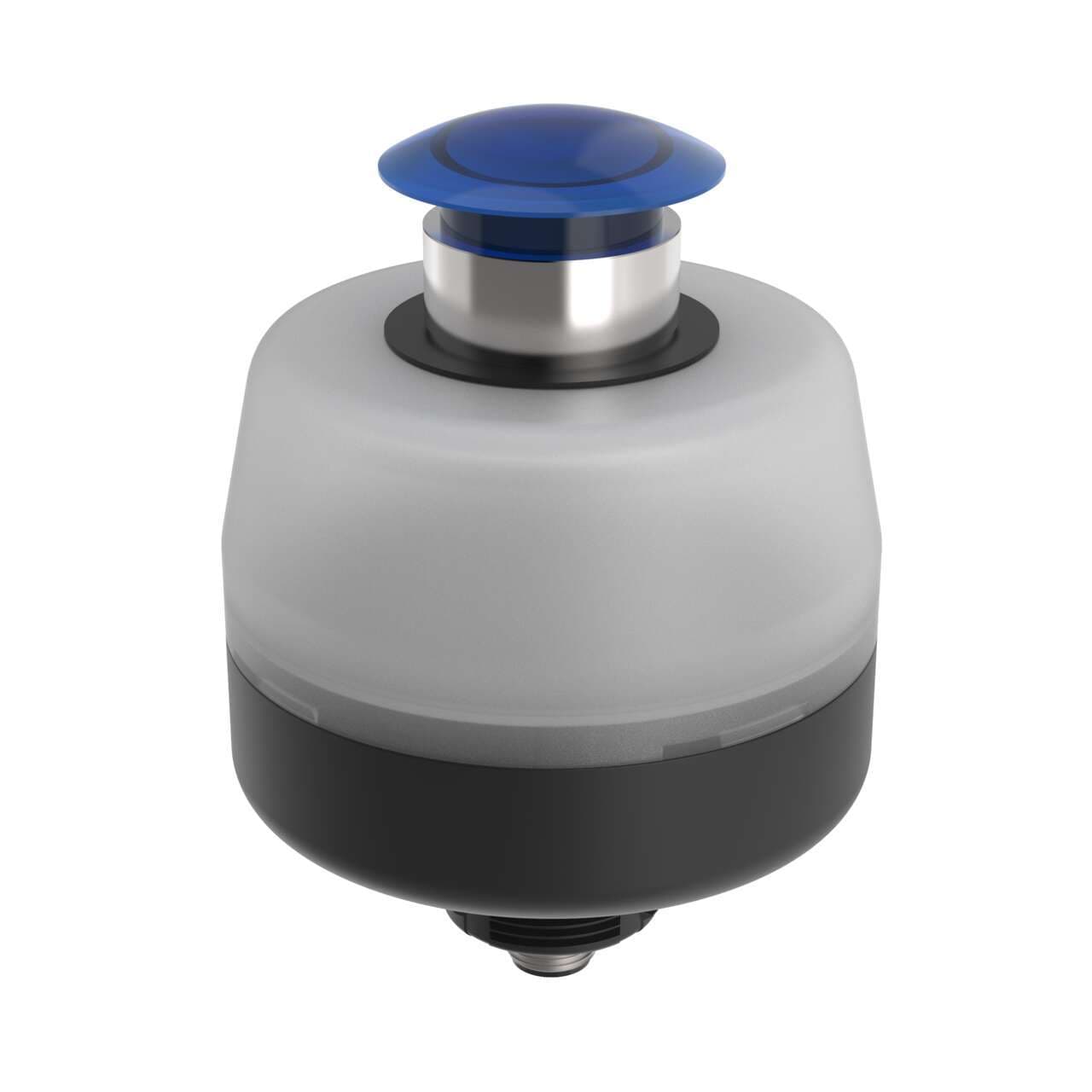

Banner OS80PMMB1XBQ OS80 Operator Station: Push Button, Blue; Momentary (Spring Return); 1-Color; Voltage: 12-30 V dc; Housing: Polycarbonate; IP40; Output: PNP 1 NO; Colors: Blue; 5-pin M12 Integral QD

Part#:OS80PMMB1XBQ

Manufacturer:Banner

Alt. Part#:804822

Product Lifecycle:Active

Get a quick Quote!

OS80 Operator Station: Push Button, Blue; Momentary (Spring Return); 1-Color; Voltage: 12-30 V dc; Housing: Polycarbonate; IP40; Output: PNP 1 NO; Colors: Blue; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Pilot Devices Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the OS80PMMB1XBQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
340.194 g
Country Of Origin
MX
Feature: Chemical Resistant
No
Pro-Editor Compatible (Discrete)
No
Wireless
No
IO Link
No
Modbus RTU
No
Feature: Quick Disconnect
Yes
Feature: Audible
No
Feature: Hazardous Area
No
Secondary Material
Polyamide
Primary Housing Color
Black
Button Operation
Momentary
Storage Temp (°C)
-40 to 70
Min Op. Temperature (°C)
-25
Max Op. Temperature (°C)
55
Environmental Rating
IP40
Physical Dimensions (LxWxH or DxH mm)
80.0 x 108.6
Max Output Response Time (ms)
50
I/O Block Compatible
Yes

Input Type

PNP

Output Type

PNP

Supply Voltage

12-30 V dc

Operation

Normally Open

Number of Input Pins/Conductors

Max Current Color (mA)

135

Connection

Integral QD

Quick Disconnect Type

M12 (Euro)

Animation Option 1

Solid On

Color Option 1

Blue

Number of Colors / Segments

Color Technology

Standard LED

Product Size (mm)

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Primary Housing Material

Polycarbonate

Mounting Thread

M30 x 1.5

Actuation

Yes

Activation Function

Push-Button

Housing Style

Base Mount - Dome Window

Power Source

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

OS80PMMB1XBQ Description

Banner Engineering OS80PMMB1XBQ is a control station featuring an illuminated push-button operator station designed for surface or base mounting with an M30 thread. It operates within an ambient air temperature range of -25°C to +55°C and is designed to be I.O. block compatible, offering 1-color LED illumination that is not activated (No color) or blue (activated). The device has a 40mm mushroom head and an 80mm housing diameter, and it connects via a pre-equipped 5-pin M12 Euro-style QD connector. With an IP40 degree of protection and a supply voltage range of 12Vdc to 30Vdc (24Vdc nominal), it is constructed from polyamide (PA) for the button and polycarbonate (PC) for the base, featuring a blue button and black housing. The operating mode is momentary NO (Normally Open) touch output, including 1 x digital output (12-30Vdc; PNP), 1 NO auxiliary contact, 0 NC auxiliary contacts, and 1 x digital input (12-30Vdc; PNP) for color control, with a current consumption of 135mA.
