Part#:OS80PMLW1XWQ

Alt. Part#:804683

Manufacturer:Banner

Category:Pilot Devices Accessories

Product Lifecycle:Active

Product description

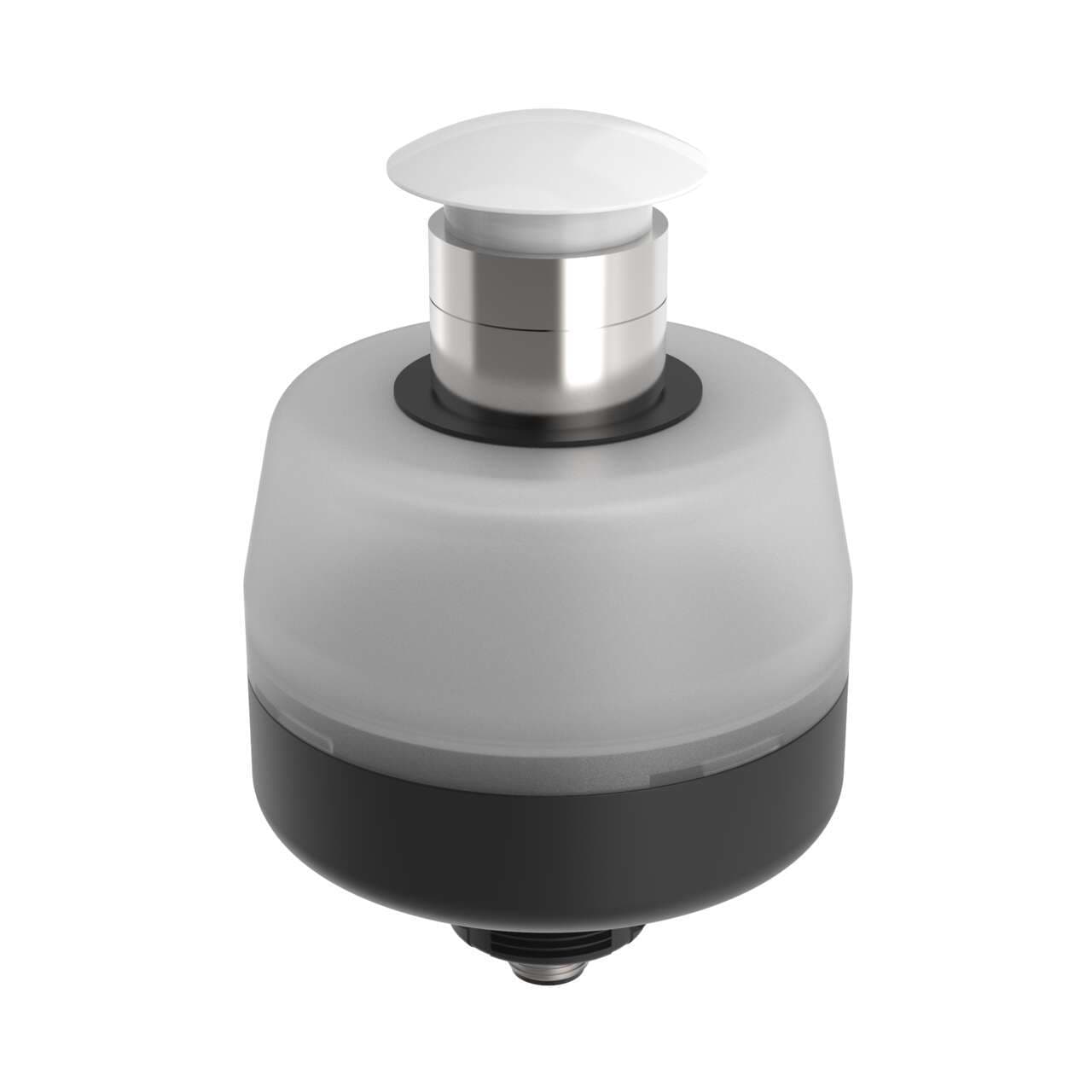

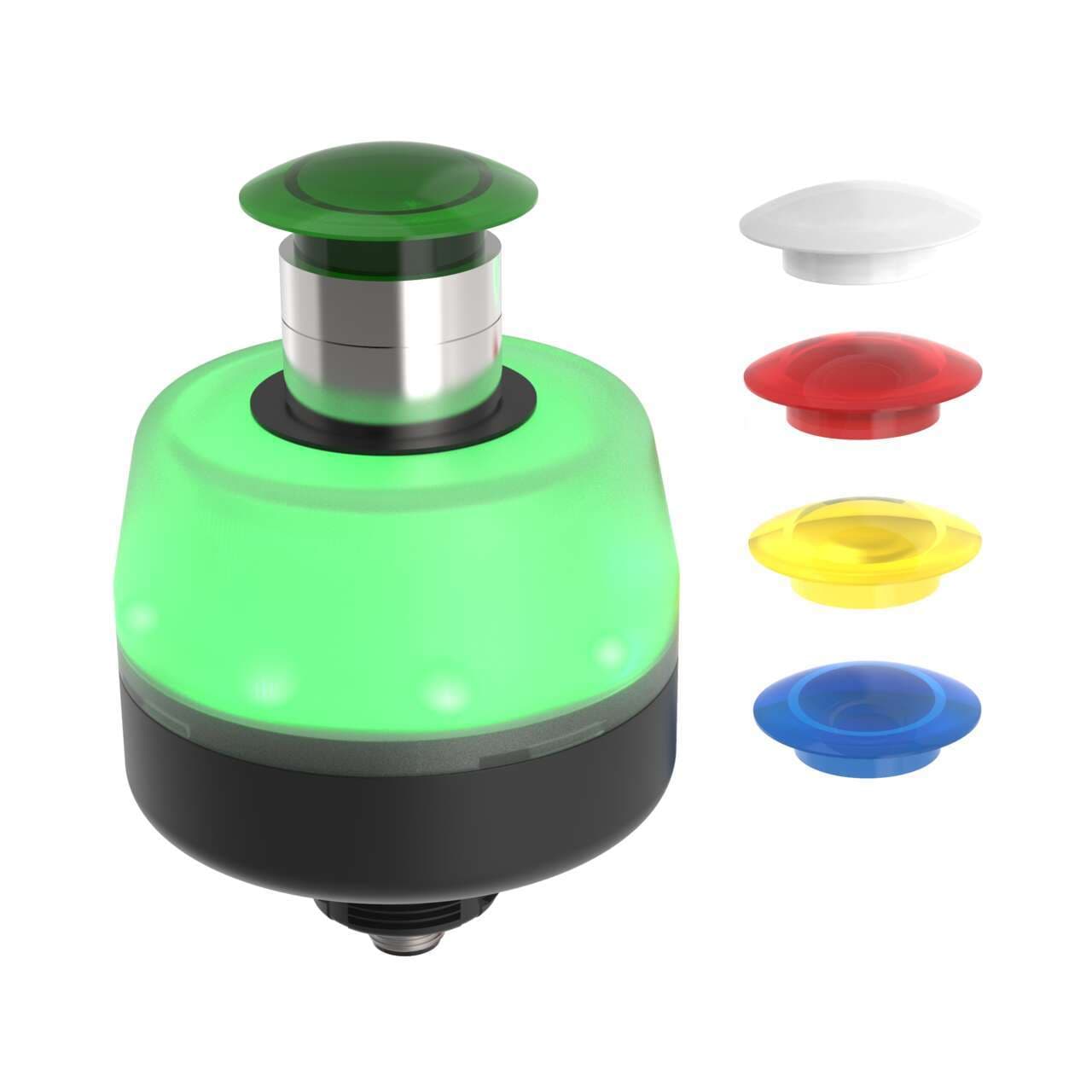

OS80 Operator Station: Push Button, White; Latching (Pull-to-Release); 1-Color; Voltage: 12-30 V dc; Housing: Polycarbonate; IP40; Output: PNP 1 NO; Colors: White; 5-pin M12 Integral QD

Product Details

  • Weight
    294.8348 g
  • Country Of Origin
    US
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Secondary Material
    Polyamide
  • Primary Housing Color
    Black
  • Button Operation
    Latching
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -25
  • Physical Dimensions (LxWxH or DxH mm)
    80.0 x 115.6
  • Max Op. Temperature (°C)
    55
  • Environmental Rating
    IP40
  • Max Output Response Time (ms)
    50
  • I/O Block Compatible
    Yes
  • Input Type
    PNP
  • Supply Voltage
    12-30 V dc
  • Output Type
    PNP
  • Max Current Color (mA)
    135
  • Operation
    Normally Open
  • Number of Input Pins/Conductors
    5
  • Connection
    Integral QD
  • Activation Function
    Push-Button
  • Quick Disconnect Type
    M12 (Euro)
  • Product Size (mm)
    80
  • Color Technology
    Standard LED
  • Color Option 1
    White
  • Animation Option 1
    Solid On
  • Number of Colors / Segments
    1
  • Housing Style
    Base Mount - Dome Window
  • Power Source
    DC
  • Power
    DC
  • Mounting Thread
    M30 x 1.5
  • Primary Housing Material
    Polycarbonate
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Actuation
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of OS80PMLW1XWQ on Powermatic Associates is $321.00. Order now.

About the product

Banner Engineering OS80PMLW1XWQ is a control station featuring an illuminated push-button operator station designed for surface or base mounting with an M30 thread. It operates within an ambient air temperature range of -25°C to +55°C and is designed to be I.O. block compatible, offering 1-color LED illumination that is white when activated and has no color when not activated. The unit has a 40mm mushroom head and an 80mm housing diameter, and it connects via a pre-equipped 5-pin M12 Euro-style QD connector. With an IP40 degree of protection and a supply voltage range of 12Vdc to 30Vdc (24Vdc nominal), this control station is constructed from a polyamide (PA) button and a polycarbonate (PC) base, featuring a white button and black housing. It operates in a latched NO (Normally Open) touch output mode, includes 1 x digital output (12-30Vdc; PNP), 1 NO auxiliary contact, and has no NC (Normally Closed) auxiliary contacts. Additionally, it features 1 x digital input (12-30Vdc; PNP) for color control and has a current consumption of 135mA.
