Part#:OS80K3MX3GRQ

Alt. Part#:804812

Manufacturer:Banner

Category:Pilot Devices Accessories

Product Lifecycle:Active

Product description

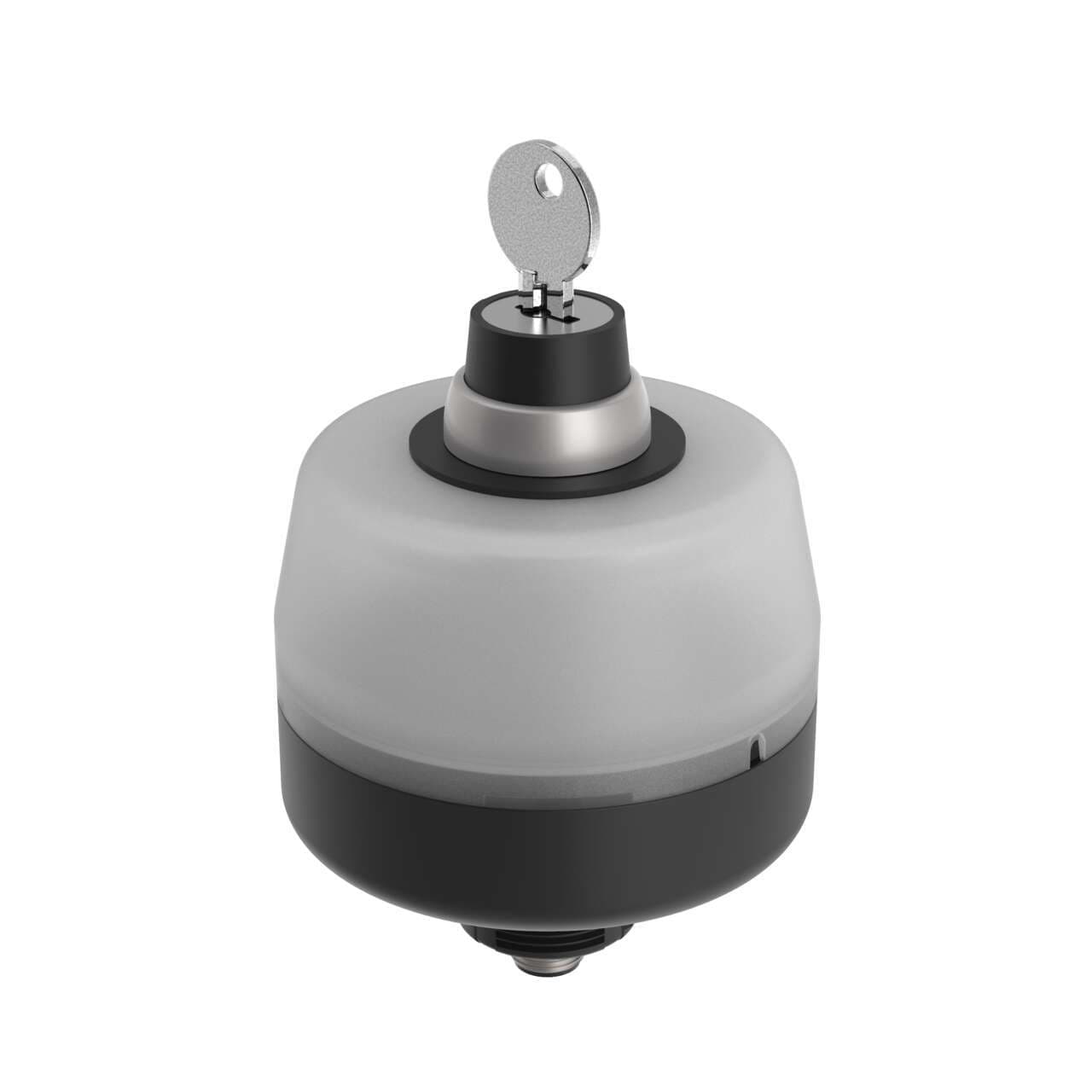

OS80 Operator Station: Key Switch; 3-Position; On-Off-Momentary; 2-Color; Voltage: 12-30 V dc; Housing: Polycarbonate; IP40; Output: PNP 1NO/1NC; Colors: Green Red; 5-pin M12 Integral QD

Product Details

  • Weight
    340.194 g
  • Country Of Origin
    MX
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Quick Disconnect
    Yes
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Secondary Material
    Polyamide
  • Storage Temp (°C)
    -40 to 70
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -25
  • Button Operation
    Momentary and Latching
  • Physical Dimensions (LxWxH or DxH mm)
    80.0 x 106.6
  • Environmental Rating
    IP40
  • Input Type
    PNP
  • Max Output Response Time (ms)
    50
  • Output Type
    PNP
  • Max Op. Temperature (°C)
    55
  • Supply Voltage
    12-30 V dc
  • Max Current Color (mA)
    135
  • Number of Input Pins/Conductors
    5
  • Operation
    Normally Open/Normally Closed
  • Color Option 2
    Red
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Animation Option 1
    Solid On
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Product Size (mm)
    80
  • Number of Colors / Segments
    2
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    M30 x 1.5
  • Activation Function
    Key Operated Selector Switch
  • Housing Style
    Base Mount - Dome Window
  • Actuation
    Yes
  • Primary Housing Material
    Polycarbonate
  • Power Source
    DC
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of OS80K3MX3GRQ on Powermatic Associates is $321.00. Order now.

About the product

Banner Engineering OS80K3MX3GRQ is a control station featuring a 3-positions key-operated selector switch operator station with ON/OFF/momentary functions. It offers both surface and base mounting options with an M30 thread. Designed for operation in ambient air temperatures ranging from -25°C to +55°C, this control station is ECOLAB compliant and features 2-color G (Not activated) / R (activated) LED illumination within an 80mm housing diameter. It connects via a pre-equipped 5-pin M12 Euro-style QD connector and has an IP40 degree of protection. The supply voltage ranges from 12Vdc to 30Vdc, with a nominal 24Vdc. Constructed from polyamide (PA) for the operator and polycarbonate (PC) for the base, it comes in a black housing. The operating mode can be either momentary or latched NO (Normally Open) or NC (Normally Closed), which is configurable. It includes 2 x digital outputs (12-30Vdc; PNP), 1 NO auxiliary contact, 1NO+1NC contacts, 1 NC auxiliary contact, and 2 x digital inputs (12-30Vdc; PNP) for color control, with a current consumption of 135mA.
