OS80K2LX1GYQ Banner Pilot Devices Accessories

OS80K2LX1GYQ on Powermatic Associates
Banner
  • OS80K2LX1GYQ
  • OS80K2LX1GYQ

Part#:OS80K2LX1GYQ

Alt. Part#:804816

Manufacturer:Banner

Category:Pilot Devices Accessories

Product Lifecycle:Active

Product description

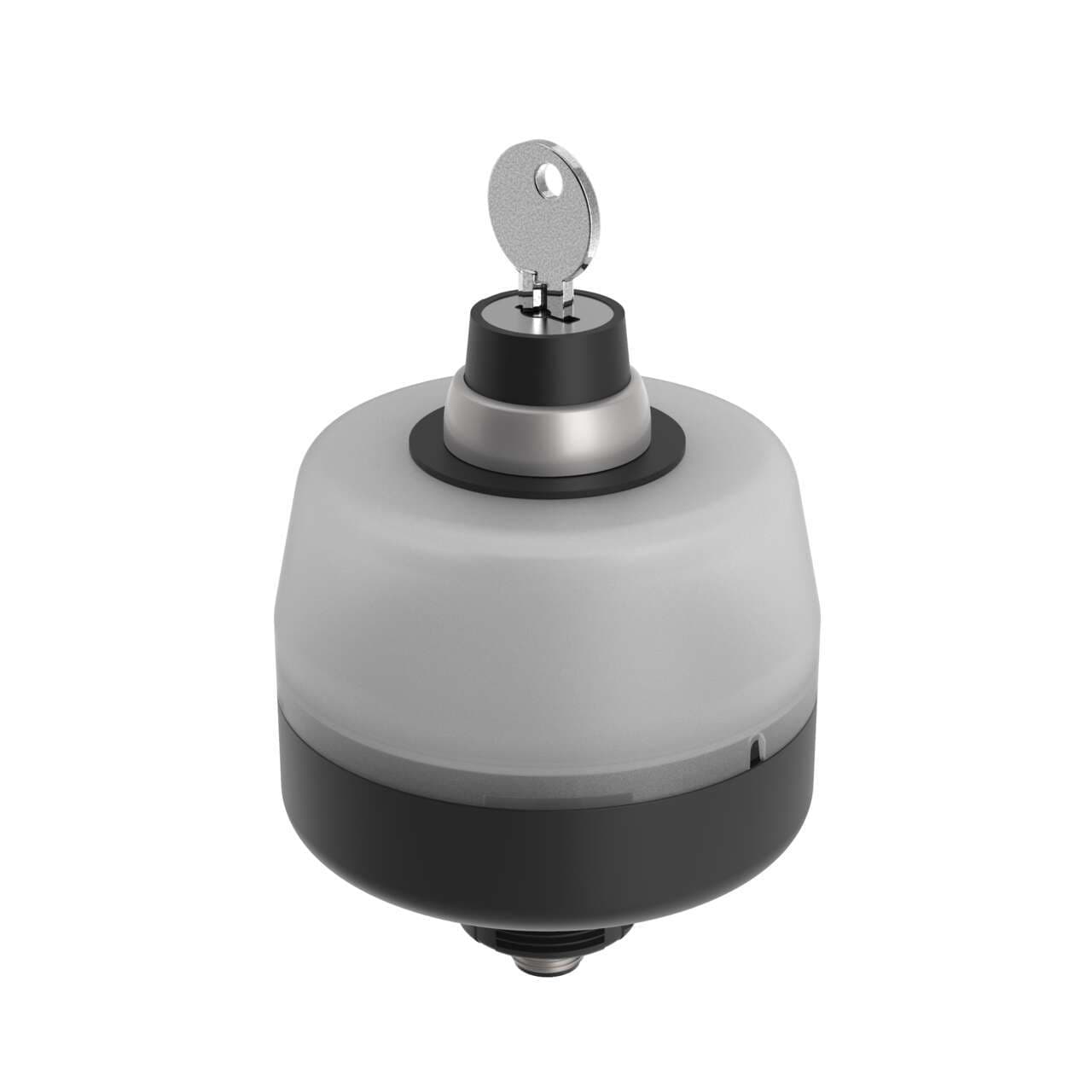

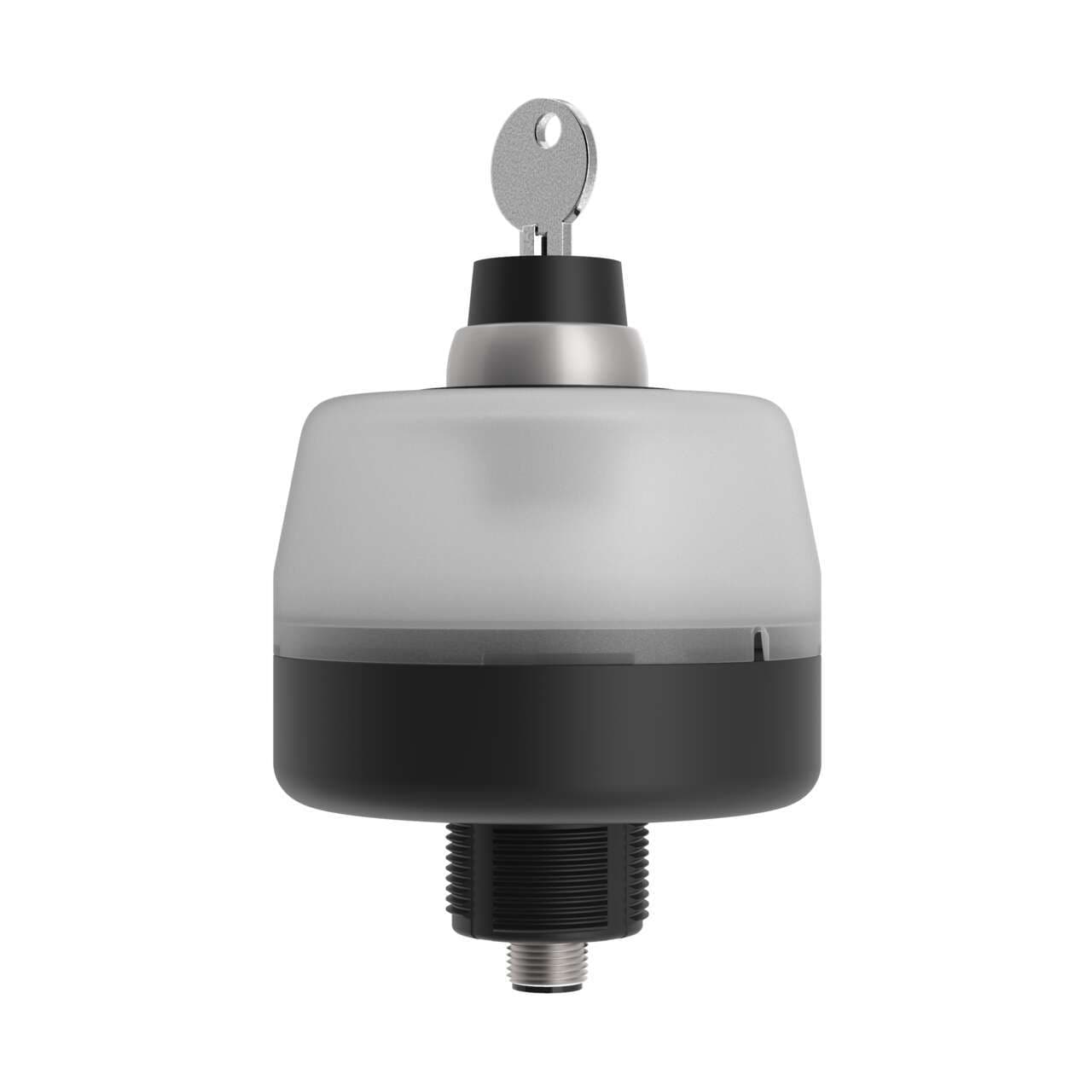

OS80 Operator Station: Key Switch; 2-Position; On-Off; 2-Color; Voltage: 12-30 V dc; Housing: Polycarbonate; IP40; Output: PNP 1 NO; Colors: Green Yellow; 5-pin M12 Integral QD

Product Details

  • Weight
    190.50864 g
  • Country Of Origin
    US
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Secondary Material
    Polyamide
  • Primary Housing Color
    Black
  • Button Operation
    Latching
  • Storage Temp (°C)
    -40 to 70
  • Operation
    Normally Open
  • I/O Block Compatible
    Yes
  • Output Type
    PNP
  • Supply Voltage
    12-30 V dc
  • Environmental Rating
    IP40
  • Min Op. Temperature (°C)
    -25
  • Max Op. Temperature (°C)
    55
  • Input Type
    PNP
  • Physical Dimensions (LxWxH or DxH mm)
    80.0 x 106.6
  • Max Output Response Time (ms)
    50
  • Number of Input Pins/Conductors
    5
  • Max Current Color (mA)
    135
  • Color Option 2
    Yellow
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Color Option 1
    Green
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Product Size (mm)
    80
  • Number of Colors / Segments
    2
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Activation Function
    Key Operated Selector Switch
  • Power
    DC
  • Housing Style
    Base Mount - Dome Window
  • Power Source
    DC
  • Mounting Thread
    M30 x 1.5
  • Actuation
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of OS80K2LX1GYQ on Powermatic Associates is $321.00. Order now.

About the product

Banner Engineering OS80K2LX1GYQ is a control station featuring a 2-positions key-operated selector switch operator station with OFF/ON functionality. It is designed for surface or base mounting with an M30 thread and can operate in ambient air temperatures ranging from -25°C to +55°C. This model is I.O. block compatible and offers 2-color G (Not activated) / Y (activated) LED illumination within an 80mm housing diameter. It comes pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector and has an IP40 degree of protection. The supply voltage requirement is 12Vdc to 30Vdc, with a nominal 24Vdc. The control station is constructed from a polyamide (PA) operator and a polycarbonate (PC) base, featuring a black housing. Its operating mode is latched NO (Normally Open) touch output, and it includes 1 x digital output (12-30Vdc; PNP), 1 NO auxiliary contact, and 2 x digital inputs (12-30Vdc; PNP) for color control. The current consumption is 135mA, and it does not have any Normally Closed (NC) auxiliary contacts.
