MQDEC-815SS Banner Cordsets

Name: MQDEC-815SS
Brand: Banner
Price: 57 USD
Availability: BackOrder

Part#:MQDEC-815SS

Manufacturer:Banner

Alt. Part#:810188

Product Lifecycle:Active

Get a quick Quote!

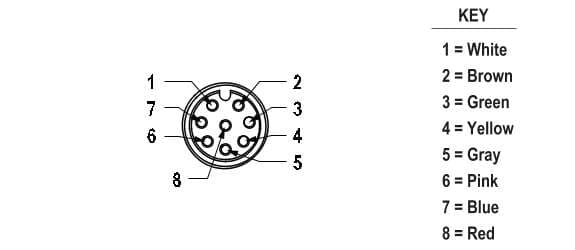

Cordset: Double Ended M12; 8-pin Straight Female; 8-pin straight Male; 4.57 m 8x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQDEC-815SS Banner price in the box on the right side or send a quick quote.

Product Details

Weight
172.36496 g
Country Of Origin
TW
Secondary AWG
22
Feature: Hazardous Area
No
Secondary Orientation
Straight
Secondary Coupling Method
M12 Single Key
Primary Orientation
Straight
Oil/Grease Resistant
No
Secondary Number of Conductors
8
Secondary Gender
Male
Secondary Connector Type
EURO
Primary AWG
22
Primary Number of Conductors
8
Primary Coupling Method
M12 Reverse Key
Primary Gender
Female
Primary Connector Type
EURO
IP Rating
IP67
Voltage Rating (V)
75 V ac/dc
Current Rating (A)
2.0
Minimum Temp. (°C)
-60

Maximum Temp. (°C)

105

Coupling Material/Color

Nickel Plated Brass

Number of Contacts

Connector Body Material/Color

PUR Black

Shield/No Shield

No Shield

Cable Jacket Material

PVC

Trunk Length (m)

No Trunk

Cordset Length (m)

4.57

Cable Jacket Color

Black

Outside Cable Diameter (mm)

Number of Connectors

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MQDEC-815SS Description

Banner Engineering MQDEC-815SS is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with an 8-pin Euro-style M12 female connector on one end and an 8-pin Euro-style M12 male connector on the other. The cable has a diameter of 6mm and is encased in black PVC sheathing. It is built to operate in ambient air temperatures ranging from -40 to +105°C. This model offers a degree of protection rated at IP67, making it suitable for environments where dust and moisture resistance is required. The connectors are made from nickel-plated brass, ensuring durability and a secure connection. The MQDEC-815SS is rated for a voltage of 75Vdc and has a length of 15ft (4.57m), providing ample reach for various installation needs.

Manufacturer warranty
