MQDC-450 Banner Cordsets
Product Details
- Weight 605.998912 g
- Country Of Origin US
- Primary AWG 22
- Feature: Hazardous Area No
- Primary Number of Conductors 4
- Primary Connector Type EURO
- Primary Coupling Method M12 Single Key
- Minimum Temp. (°C) -40
- Outside Cable Diameter (mm) 5.2
- Number of Connectors 1
- Secondary Connector Type Flying Leads
- Oil/Grease Resistant No
- Primary Orientation Straight
- Primary Gender Female
- Maximum Temp. (°C) 105
- IP Rating IP67
- Current Rating (A) 4.0
- Voltage Rating (V) 250 V ac/dc
- Coupling Material/Color Nickel Plated Brass
- Cable Jacket Color Black
- Shield/No Shield No Shield
- Number of Contacts 4
- Cable Jacket Material PVC
- Connector Body Material/Color PUR Black
- Cordset Length (m) 15.2
- Trunk Length (m) No Trunk
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-450 on Powermatic Associates is $56.00. Order now.
About the product

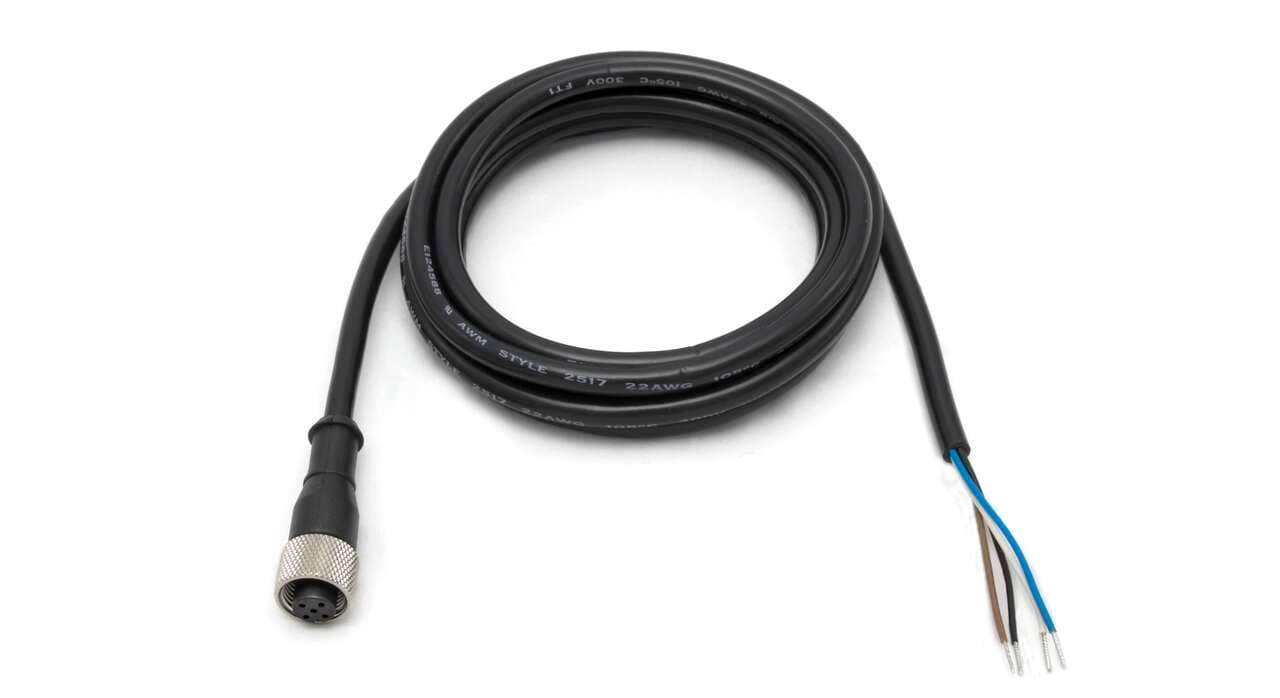

Banner Engineering MQDC-450 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.2mm diameter PVC cable and a 4-pin Euro-style M12 female connector with bare end flying leads. The cable is equipped with a nickel-plated brass coupling nut and is protected by black sheathing. It is designed to operate in ambient air temperatures ranging from -40 to +105°C. The MQDC-450 offers a degree of protection rated at IP67, making it suitable for environments where dust and temporary immersion in water are concerns. This cable has a length of 50ft (15m) and is rated for use with 250Vac.
