MAR3032NX485Q Banner Measurement Sensors

MAR3032NX485Q on Powermatic Associates
Banner

Part#:MAR3032NX485Q

Alt. Part#:87740

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

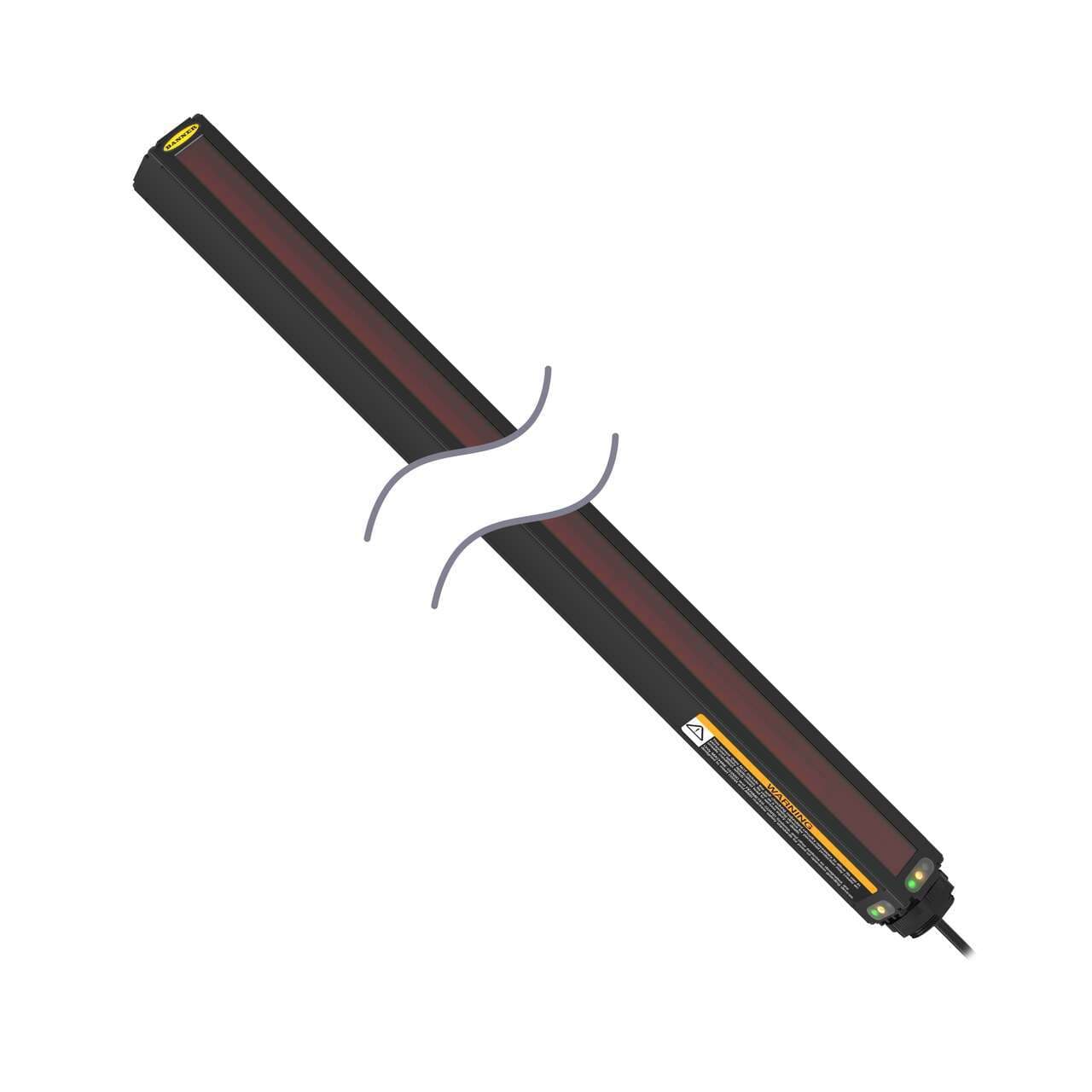

2 Piece Mini-Array Series: Receiver 3/8 in Optical Spacing; Range: 20 ft; Sensing Length: 30 in; Input Voltage 16-30 V; Outputs: 2 Independent NPN; 150 mm (6 in) 8-pin M12 PVC Pigtail QD

Product Details

  • Weight
    1587.572 g
  • Country Of Origin
    CN
  • Power Supply
    16-30V dc
  • Discrete Output
    2 x NPN/PNP Configurable
  • Max Relative Humidity
    0.95
  • Minimum Object Sensitivity (mm)
    12.7-19.1
  • Emitter/Receiver Range (m)
    0.6 - 6.1
  • Max Temp (°C)
    70
  • Min Temp (°C)
    -40
  • Number of Beams
    80
  • RS-485
    Yes
  • Array Length (mm)
    752
  • Housing Length (mm)
    841
  • Analog Output
    N/A
  • Device Type
    Two-Piece
  • IO Link
    No
  • Sensing Mode (Detailed)
    Receiver
  • Modbus RTU
    No
  • DeviceNet
    No
  • Power
    DC
  • Beam Spacing
    9.5 mm
  • Primary Housing Material
    Aluminum
  • RS-232
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAR3032NX485Q on Powermatic Associates is $1,091.00. Order now.

About the product

Banner Engineering MAR3032NX485Q is a sensor from the MINI-ARRAY 2-piece models series designed for measuring light screen array edge/profile with its main function as a receiver alone. This sensor features a 752mm array length in a rectangular shape, constructed with an aluminium housing and a PVC connector. It has a 3/8" / 9.5mm beam spacing/pitch and comes pre-wired with a 6" / 150mm PVC pigtail terminated with an M12 mini-style connector. The MAR3032NX485Q operates on a RS-485 communication protocol and requires a supply voltage of 16Vdc-30Vdc, with 24Vdc nominal. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP65, NEMA 4, NEMA 13, and UL type 1. The sensing distance of this sensor ranges from 60cm to 6.1m, and it features 2 x digital outputs (PNP/NPN transistor) with a resolution of 3/8" / 9.5mm. It is capable of detecting object sizes between 12.7mm and 19.1mm.

MAR3032NX485Q Related Documents

196877.pdf
