MAE7232Q Banner Measurement Sensors

MAE7232Q on Powermatic Associates
Banner
  • MAE7232Q
  • MAE7232Q

Part#:MAE7232Q

Alt. Part#:87735

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

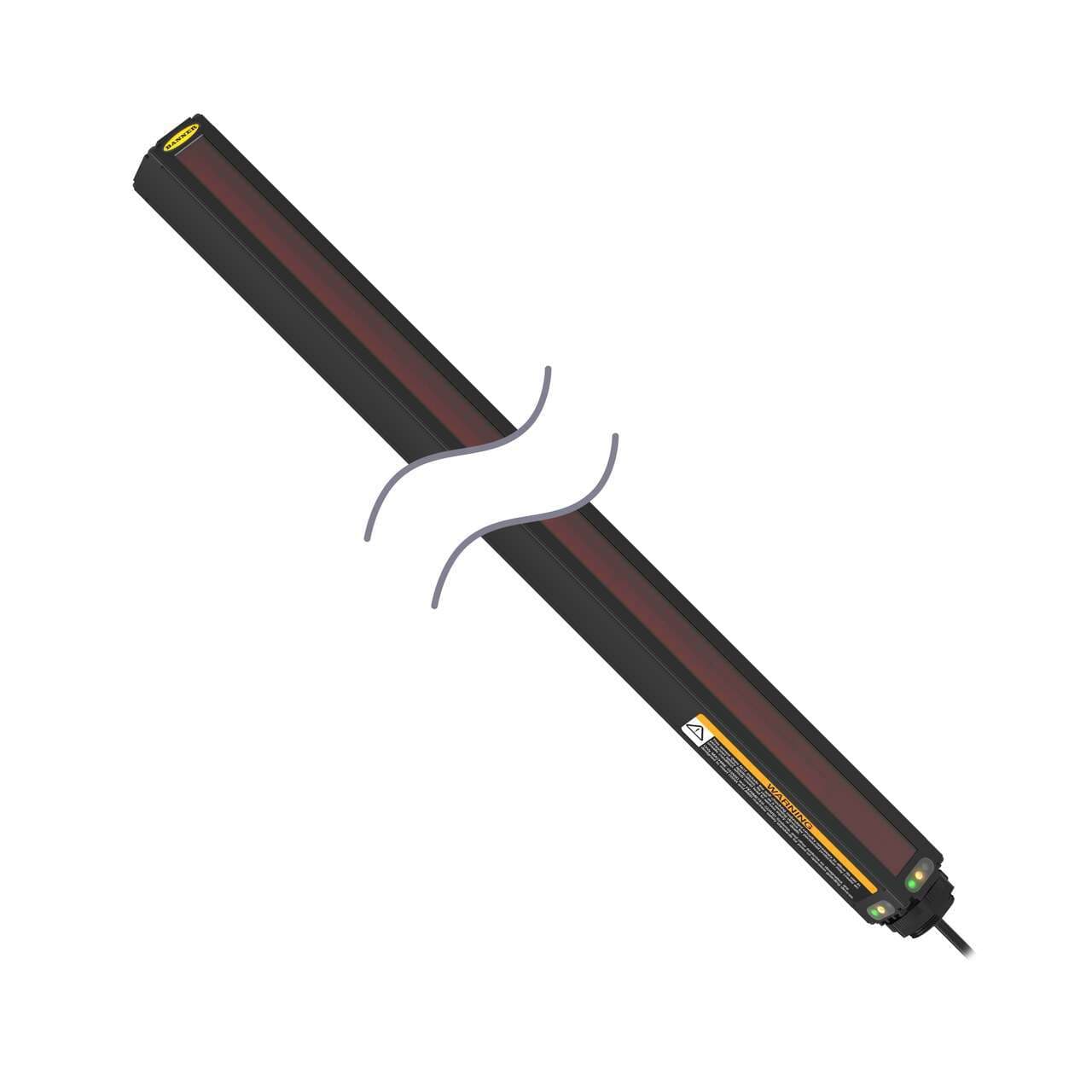

2 Piece Mini-Array Series: Emitter 3/8 in Optical Spacing; Range: 20 ft; Sensing Length: 72 in; Input Voltage 16-30 V; Outputs: none; 150 mm (6 in) 8-pin M12 PVC Pigtail QD

Product Details

  • Weight
    3175.144 g
  • Country Of Origin
    CN
  • Power Supply
    16-30V dc
  • Max Relative Humidity
    0.95
  • Emitter/Receiver Range (m)
    0.6 - 4.6
  • Max Temp (°C)
    70
  • Minimum Object Sensitivity (mm)
    12.7-19.1
  • Discrete Output
    N/A
  • Array Length (mm)
    1819
  • Housing Length (mm)
    1908
  • RS-485
    No
  • Min Temp (°C)
    -40
  • Number of Beams
    192
  • Analog Output
    N/A
  • RS-232
    No
  • Primary Housing Material
    Aluminum
  • IO Link
    No
  • Power
    DC
  • Modbus RTU
    No
  • DeviceNet
    No
  • Device Type
    Two-Piece
  • Sensing Mode (Detailed)
    Emitter
  • Beam Spacing
    9.5 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAE7232Q on Powermatic Associates is $1,535.00. Order now.

About the product

Banner Engineering MAE7232Q is a sensor from the MINI-ARRAY 2-piece models series designed for measuring light screen array applications, functioning as an emitter alone. This part features a 1819mm array length with a rectangular shape and is constructed with an aluminium housing and a PVC connector. It offers a 3/8" / 9.5mm beam spacing/pitch and is pre-wired with a 6" / 150mm PVC pigtail that terminates with an M12 mini-style connector. The MAE7232Q operates on a supply voltage of 16Vdc-30Vdc, with 24Vdc as the nominal voltage, and can function within an ambient air temperature range of -40 to +70°C. It boasts a degree of protection rated at IP65, NEMA 4, NEMA 13, and UL type 1, with a sensing distance ranging from 60cm to 4.6m. The resolution is specified at 3/8" / 9.5mm, allowing it to detect object sizes between 12.7mm and 19.1mm.

MAE7232Q Related Documents

196877.pdf
