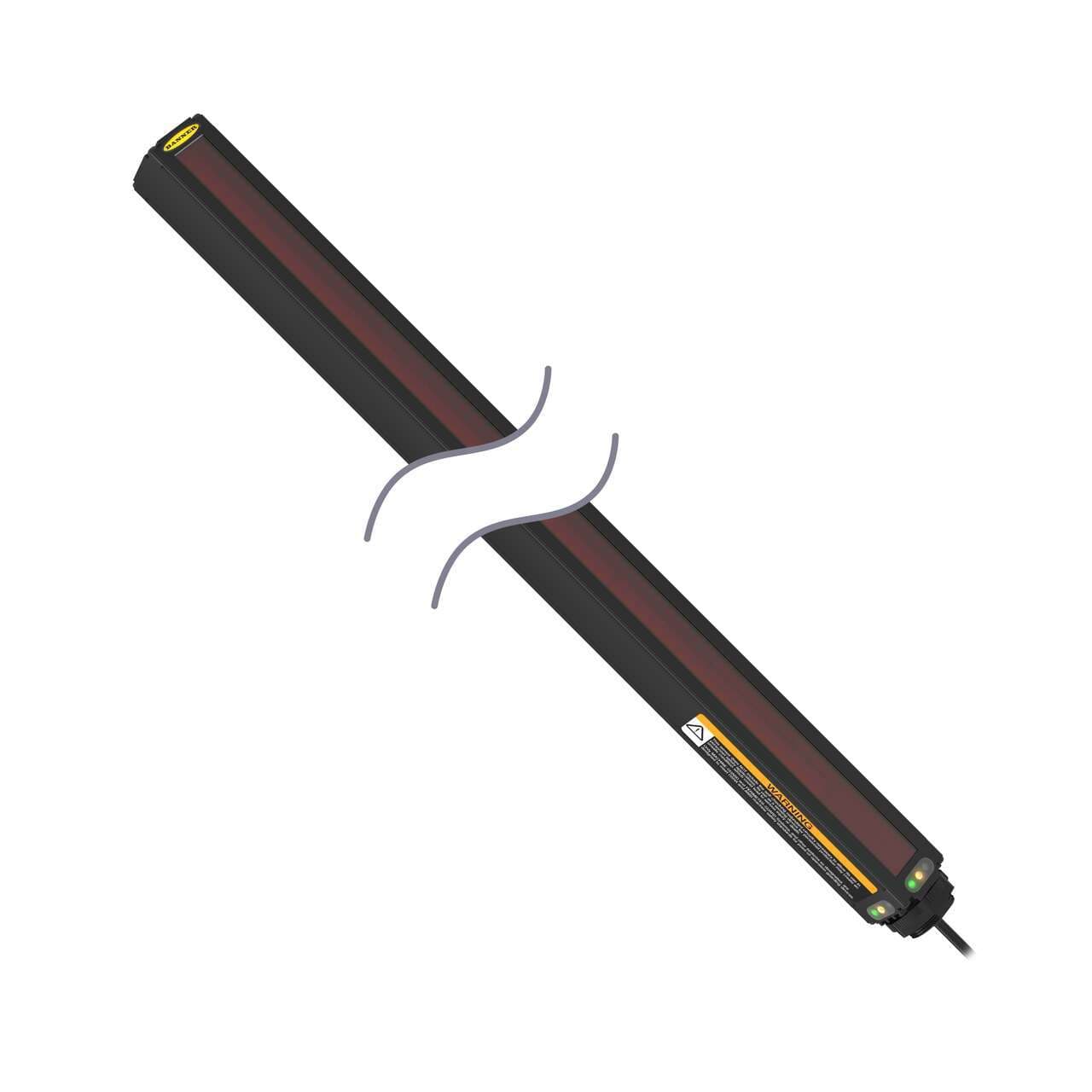

MAE1232Q Banner Measurement Sensors

Name: MAE1232Q
Brand: Banner
Price: 569 USD
Availability: BackOrder

Part#:MAE1232Q

Alt. Part#:87727

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

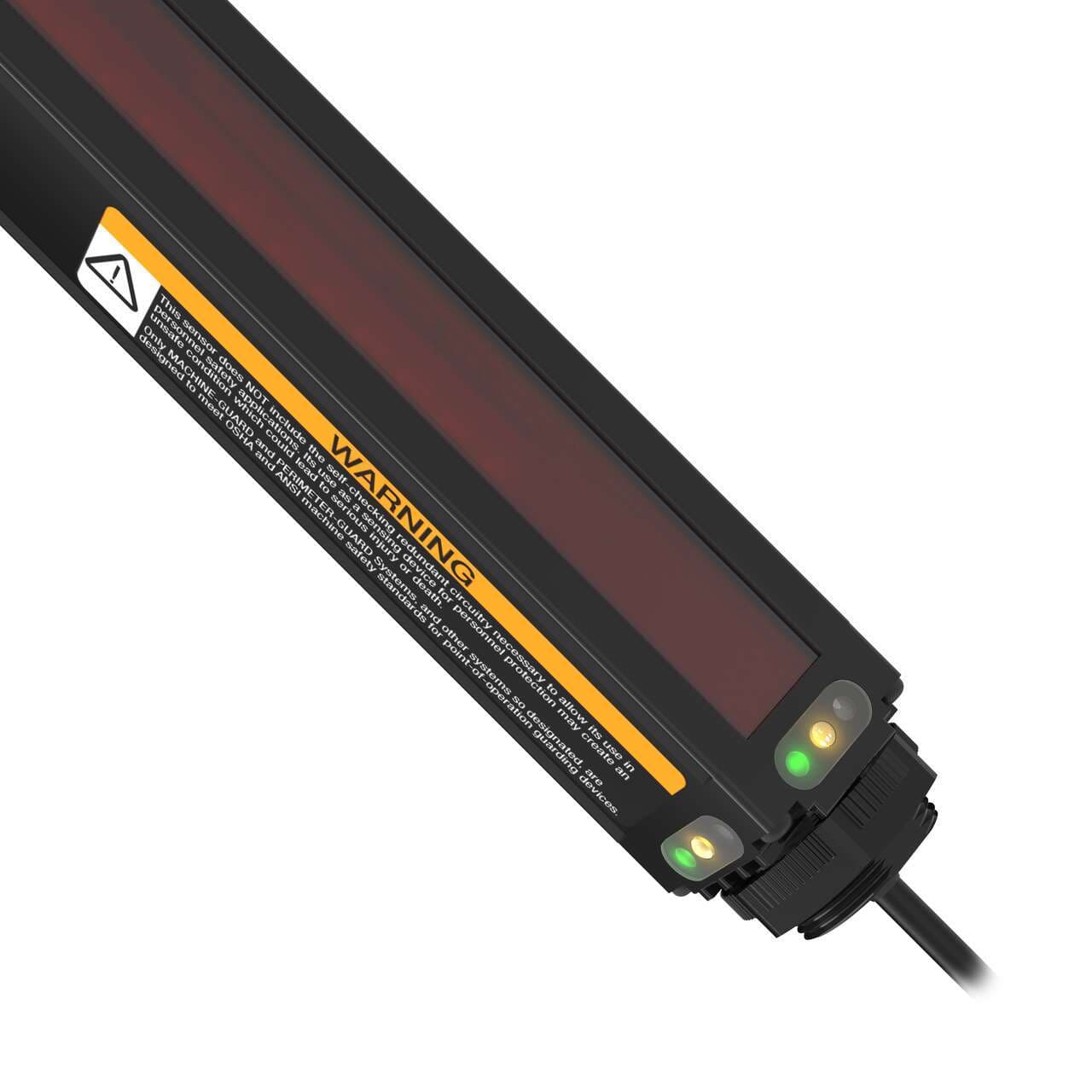

2 Piece Mini-Array Series: Emitter 3/8 in Optical Spacing; Range: 20 ft; Sensing Length: 12 in; Input Voltage 16-30 V; Outputs: none; 150 mm (6 in) 8-pin M12 PVC Pigtail QD

Product Details

Weight
861.8248 g
Country Of Origin
CN
Power Supply
16-30V dc
Max Relative Humidity
0.95
Housing Length (mm)
384
Emitter/Receiver Range (m)
0.6 - 6.1
Minimum Object Sensitivity (mm)
12.7-19.1
Max Temp (°C)
70
Array Length (mm)
295
Discrete Output
N/A
Analog Output
N/A
Min Temp (°C)
-40
Number of Beams
32
RS-485
No
Modbus RTU
No
RS-232
No
Beam Spacing
9.5 mm
DeviceNet
No
IO Link
No
Device Type
Two-Piece

Sensing Mode (Detailed)

Emitter

Primary Housing Material

Aluminum

Power

Main function

Sensor (Edge)

Distance

3/8" / 9.5mm beam spacing/pitch

Dimensions

295mm array length

Order code / Manufacturer SKU

87727

Primary brand

Banner Engineering

Sub-range name

MINI-ARRAY 2-piece models

Connection type

Pre-wired with 6" / 150mm PVC pigtal terminated with M12 Mini-style connector

Ambient air temperature for operation

-40...+70 °C

Functions

Measuring light screen array emitter red LED (status)

Detectable object size

12.7-19.1mm

Product series / family name

A-GAGE series

Supply voltage (DC)

16Vdc-30Vdc (24Vdc nom.)

Degree of protection

IP65 UL type 1

Compliant with standard(s)

cURus CE

Resolution

3/8" / 9.5mm

Material

Aluminium housing PVC connector

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAE1232Q on Powermatic Associates is $569.00. Order now.

About the product

Banner Engineering MAE1232Q is a sensor from the MINI-ARRAY 2-piece models series designed for measuring light screen array functions, specifically as an emitter alone. It features a 295mm array length in a rectangular shape with an aluminium housing and a PVC connector. The sensor has a 3/8" / 9.5mm beam spacing/pitch and comes pre-wired with a 6" / 150mm PVC pigtail terminated with an M12 mini-style connector. It operates on a supply voltage of 16Vdc-30Vdc, with 24Vdc as nominal. The MAE1232Q can function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP65, NEMA 4, NEMA 13, and UL type 1. Its sensing distance ranges from 60cm to 6.1m, with a resolution of 3/8" / 9.5mm, and it can detect objects sized between 12.7-19.1mm.
