M18RXXPQPMA Banner Indicator Lights

M18RXXPQPMA on Powermatic Associates
Banner

Part#:M18RXXPQPMA

Alt. Part#:76898

Manufacturer:Banner

Category:Indicator Lights

Product Lifecycle:Active

Product description

M18 Series EZ-LIGHT: 1-Color General Purpose Indicator; Voltage: 10-30 V dc; Housing: Nickel-Plated Brass; Input: PNP; Colors: Red; 150 mm (6 in) PUR Pigtail QD

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    US
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Modbus RTU
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Thermoplastic Diffused
  • Multi-Color Device
    Single Color On
  • Min Op. Temperature (°C)
    -40
  • Feature: Chemical Resistant
    No
  • Max Op. Temperature (°C)
    50
  • Feature: Audible
    No
  • Supply Voltage
    10-30 V dc
  • Physical Dimensions (LxWxH or DxH mm)
    16.5 x 51.5
  • Input Type
    PNP
  • Max Input Response Time (ms)
    1
  • Environmental Rating
    IP67
  • Max Current Color (mA)
    25
  • Number of Input Pins/Conductors
    4
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Pigtail PUR QD
  • Animation Option 1
    Solid On
  • Color Option 1
    Red
  • Color Technology
    Standard LED
  • Power
    DC
  • Product Size (mm)
    18
  • Mounting Thread
    M18 x 1.0
  • Number of Colors / Segments
    1
  • Indication
    Yes
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Housing Style
    Barrel Mount - Flat Window
  • Primary Housing Material
    Nickel-Plated Brass
  • Power Source
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M18RXXPQPMA on Powermatic Associates is $125.00. Order now.

About the product

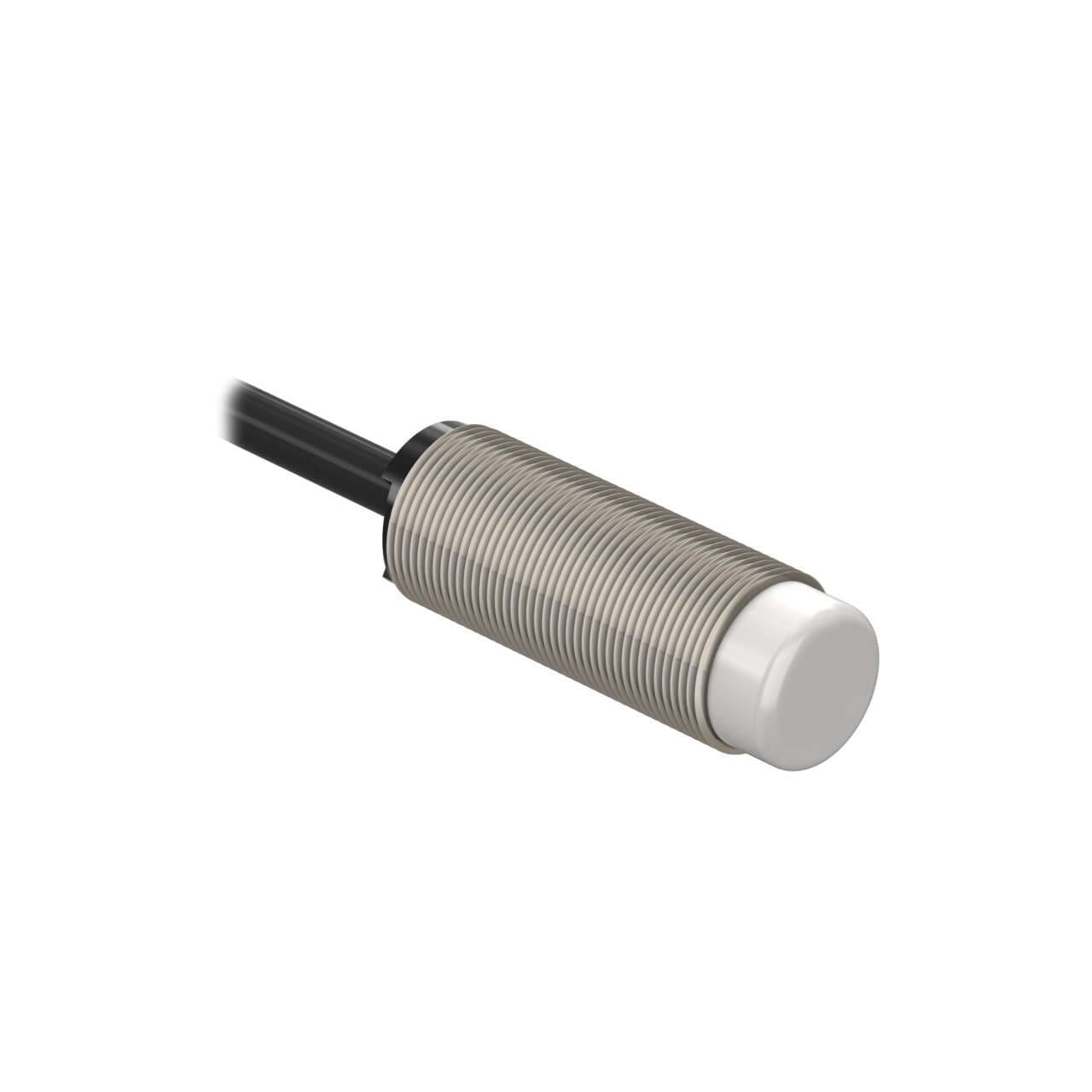

Banner Engineering M18RXXPQPMA, part of the EZ-LIGHT series, is a pilot light designed with a 1-color Red LED illumination for clear signaling. It features a black housing with a round protruding window and a threaded cylindrical barrel, constructed from a nickel-plated brass housing and a thermoplastic diffused window. The durability of the part is enhanced with a polyurethane (PUR) cable sheath. It is pre-wired with a 6" / 15cm PUR pigtail that terminates with a 4-pin M12 Euro-style quick disconnect (QD) connector, facilitating easy and secure connections. This pilot light operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and is designed for flush mounting in an 18mm hole using an M18 thread. The indicator has an 18mm diameter and is capable of operating in ambient air temperatures ranging from -40°C to +50°C. It offers a high degree of protection with an IP67 rating, ensuring it is dust tight and can withstand temporary immersion in water. The current consumption is 25mA, and it includes 1 x digital input (10-30Vdc; PNP) for color control.
