M18GXRPQPMA Banner Indicator Lights

M18GXRPQPMA on Powermatic Associates
Banner

Part#:M18GXRPQPMA

Alt. Part#:73758

Manufacturer:Banner

Category:Indicator Lights

Product Lifecycle:Active

Product description

M18 Series EZ-LIGHT: 2-Color General Purpose Indicator; Nickel-Plated Brass Housing M18x1 Thread; IP67; Input: PNP; Color: Green Red; 150 mm (6 in) 4-pin M12 PUR Pigtail QD; I O Wiring

Product Details

  • Weight
    81.64656 g
  • Country Of Origin
    US
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Max Op. Temperature (°C)
    50
  • Primary Window Material
    Thermoplastic Diffused
  • Min Op. Temperature (°C)
    -40
  • Input Type
    PNP
  • Environmental Rating
    IP67
  • Physical Dimensions (LxWxH or DxH mm)
    16.5 x 51.5
  • Max Input Response Time (ms)
    1
  • Supply Voltage
    10-30 V dc
  • Number of Input Pins/Conductors
    4
  • Color Option 3
    Red
  • Max Current Color (mA)
    25
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Pigtail PUR QD
  • Color Technology
    Standard LED
  • Color Option 1
    Green
  • Animation Option 1
    Solid On
  • Product Size (mm)
    18
  • Primary Housing Material
    Nickel-Plated Brass
  • Power
    DC
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    2
  • Mounting Thread
    M18 x 1.0
  • Indication
    Yes
  • Housing Style
    Barrel Mount - Flat Window
  • Cable Length (m)
    2
  • Power Source
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M18GXRPQPMA on Powermatic Associates is $118.00. Order now.

About the product

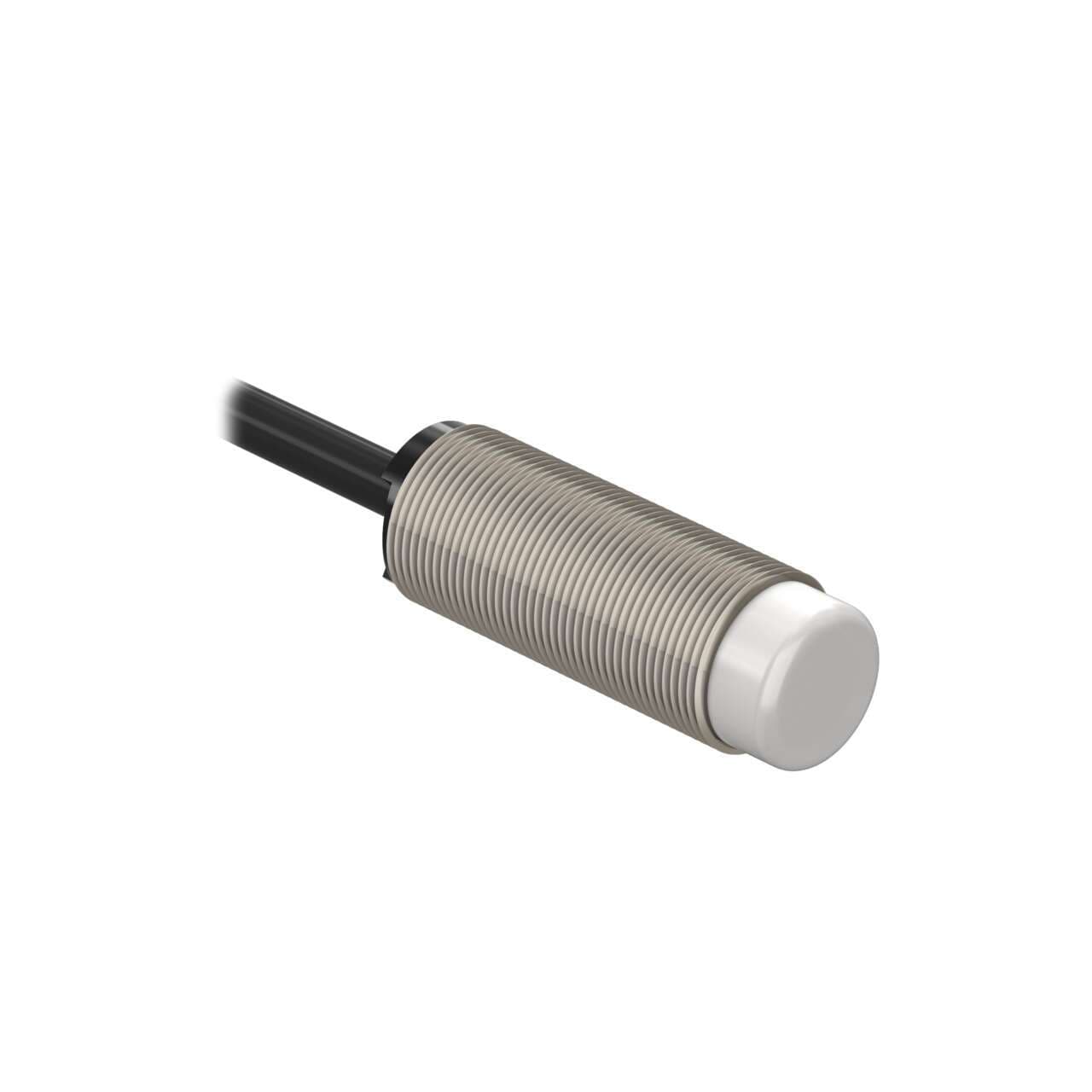

Banner Engineering M18GXRPQPMA, part of the EZ-LIGHT series, is a pilot light designed with a 2-color G/R color pattern LED illumination. This product features a black housing with a round protruding window and a threaded cylindrical barrel. The materials used include a thermoplastic diffused window, nickel-plated brass housing, and a polyurethane (PUR) cable sheath. It is pre-wired with a 6" / 15cm PUR pigtail that terminates with a 4-pin M12 Euro-style QD connector. The supply voltage required ranges from 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It is designed for flush mounting in an 18mm hole with an M18 thread. The indicator has a diameter of 18mm and can operate in ambient air temperatures ranging from -40°C to +50°C. It offers a degree of protection of IP67, consumes 25mA of current, and includes 2 x digital inputs (10-30Vdc; PNP) for color control.
