LX36R Banner Measurement Sensors

Name: LX36R
Brand: Banner

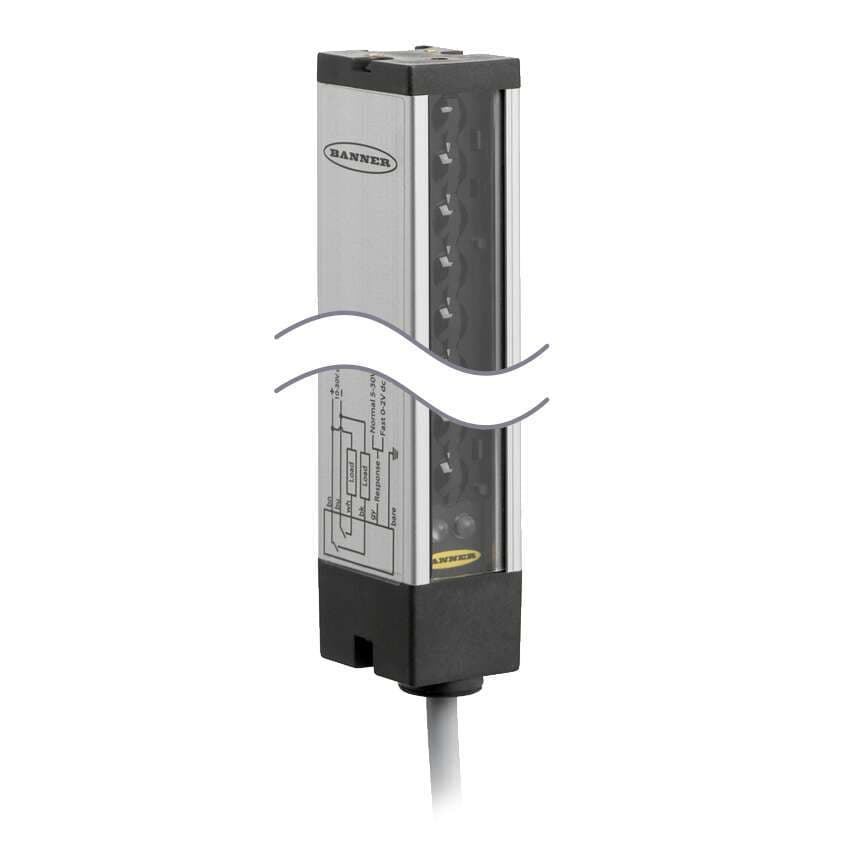

Banner LX36R LX Series: Receiver; Standard Range; Range: Normal 300 mm - 2 m; Input 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

Part#:LX36R

Manufacturer:Banner

Alt. Part#:71822

Product Lifecycle:Active

Get a quick Quote!

LX Series: Receiver; Standard Range; Range: Normal 300 mm - 2 m; Input 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LX36R Banner price in the box on the right side or send a quick quote.

Product Details

Weight
793.786 g
Country Of Origin
MX
Slot Overall Depth (mm)
31.8
Max Op. Temperature (°C)
70
Minimum Object Detection [mm]
9.5
IP Rating
IP65
NEMA Rating
N/A
Max Op. Relative Humidity (%)
90% @ 50°C
Min Op. Temperature (°C)
-20
Operation
Dark Operate
Indicator
LEDs
Special Feature: Remote Teach
No
Lens Material
Acrylic
Repeatability (µs)
N/A
Adjustments
N/A
Power Supply/Supply Voltage
10-30 V dc
Number of Pins
5
Outputs
Bipolar (NPN & PNP)
Minimum Object Detection (mm)
9.5
Connection
Cable

Slot Depth/Array Length (mm)

914

Cable Length (m)

Housing Style

Array

Primary Housing Material

Aluminum

Quick Disconnect Type

No QD

Max Sensing Range (mm)

2000

Sensing Mode (Detailed)

Receiver

Power

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Primary brand

Banner Engineering

Sub-range name

LX series

Sensing distance

30cm...2m

Dimensions

914mm array length

Main function

Sensor (Array)

Degree of protection

IP65

Order code / Manufacturer SKU

71822

Functions

Standard-range part-sensing light screen cross-hatched array receiver green LED (power ON) yellow LED (output state)

Digital outputs

1 x digital output (PNP/NPN transistor)

Compliant with standard(s)

cURus CE

Detectable object size

9.5mm

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Material

Aluminium housing Acrylic lns. Zinc (die-cast) (end cap)

Net Width (mm)

25.4 mm

Operating mode

Light-ON Dark-ON

Ambient air temperature for operation

-20...+70 °C

Net Depth (mm)

31.8 mm

Net Height (mm)

959.4 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LX36R Description

Banner Engineering LX36R is a sensor array designed for standard-range part-sensing with a cross-hatched array, functioning as a receiver alone. It features a 914mm array length encased in an aluminium housing with an acrylic lens and die-cast zinc end caps. This rectangular sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, supporting a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The LX36R has a net height of 960mm, a width of 26mm, and a depth of 32mm. It operates efficiently within an ambient air temperature range of -20 to +70°C. With an IP65 degree of protection, it offers resilience in various environmental conditions. The operating modes include Light-ON and Dark-ON, with a sensing distance ranging from 30cm to 2m. It also features 1 x digital output (PNP/NPN transistor) and can detect objects as small as 9.5mm.
