LX12ESR Banner Measurement Sensors

Name: LX12ESR
Brand: Banner

Banner LX12ESR LX Series: Emitter; Short Range; Range: Normal 100-200 mm; input 10-30 V dc; Output: No output; 2 m (6.5 ft) Cable

Part#:LX12ESR

Manufacturer:Banner

Alt. Part#:2683

Product Lifecycle:Active

Get a quick Quote!

LX Series: Emitter; Short Range; Range: Normal 100-200 mm; input 10-30 V dc; Output: No output; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LX12ESR Banner price in the box on the right side or send a quick quote.

Product Details

Weight
426.37648 g
Country Of Origin
MX
NEMA Rating
N/A
Minimum Object Detection [mm]
5.6
Max Op. Relative Humidity (%)
90% @ 50°C
Max Op. Temperature (°C)
70
Min Op. Temperature (°C)
-20
IP Rating
IP65
Indicator
LEDs
Operation
N/A
Special Feature: Remote Teach
No
Lens Material
Acrylic
Repeatability (µs)
N/A
Power Supply/Supply Voltage
10-30 V dc
Adjustments
N/A
Number of Pins
5
Output response time (ms)
3.2 ON/8.5 OFF
Minimum Object Detection (mm)
5.6
Slot Overall Depth (mm)
25.4
Slot Depth/Array Length (mm)
295

Cable Length (m)

Primary Housing Material

Aluminum

Max Sensing Range (mm)

200

Connection

Cable

Housing Style

Array

Power

Quick Disconnect Type

No QD

Sensing Mode (Detailed)

Emitter

Primary brand

Banner Engineering

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Compliant with standard(s)

cURus CE

Detectable object size

5.6mm

Degree of protection

IP65

Net Height (mm)

342 mm

Sub-range name

LX series

Functions

Short-range part-sensing light screen / curtain cross-hatched array emitter green LED (power ON) red LED (failure)

Ambient air temperature for operation

-20...+70 °C

Net Depth (mm)

31.8 mm

Net Width (mm)

25.4 mm

Main function

Sensor (Array)

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Dimensions

295mm array length

Material

Aluminium housing Acrylic lns. Zinc (die-cast) (end cap)

Order code / Manufacturer SKU

02683

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LX12ESR Description

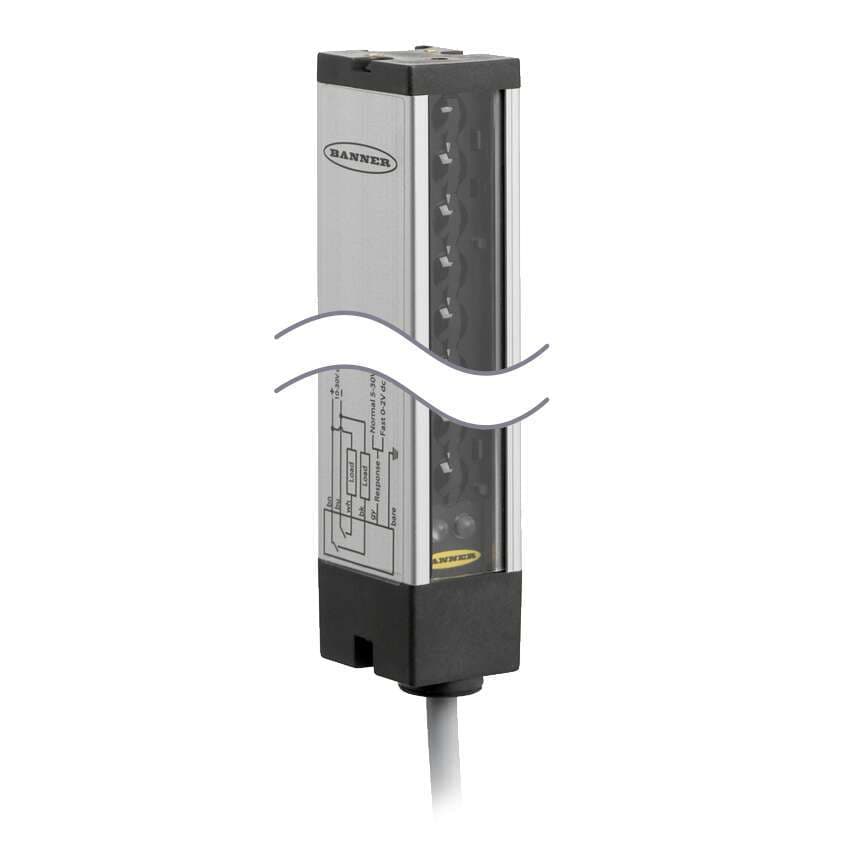

Banner Engineering LX12ESR is a sensor array designed for short-range part-sensing, featuring a light screen/curtain cross-hatched array (emitter alone). It has a 295mm array length and is housed in aluminum with an acrylic lens and die-cast zinc end caps. This rectangular sensor is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads, supporting a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nominal). The LX12ESR measures 342mm in height, 26mm in width, and 32mm in depth. It operates within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP65. With a sensing distance of 100 to 200mm, it can detect objects as small as 5.6mm.
