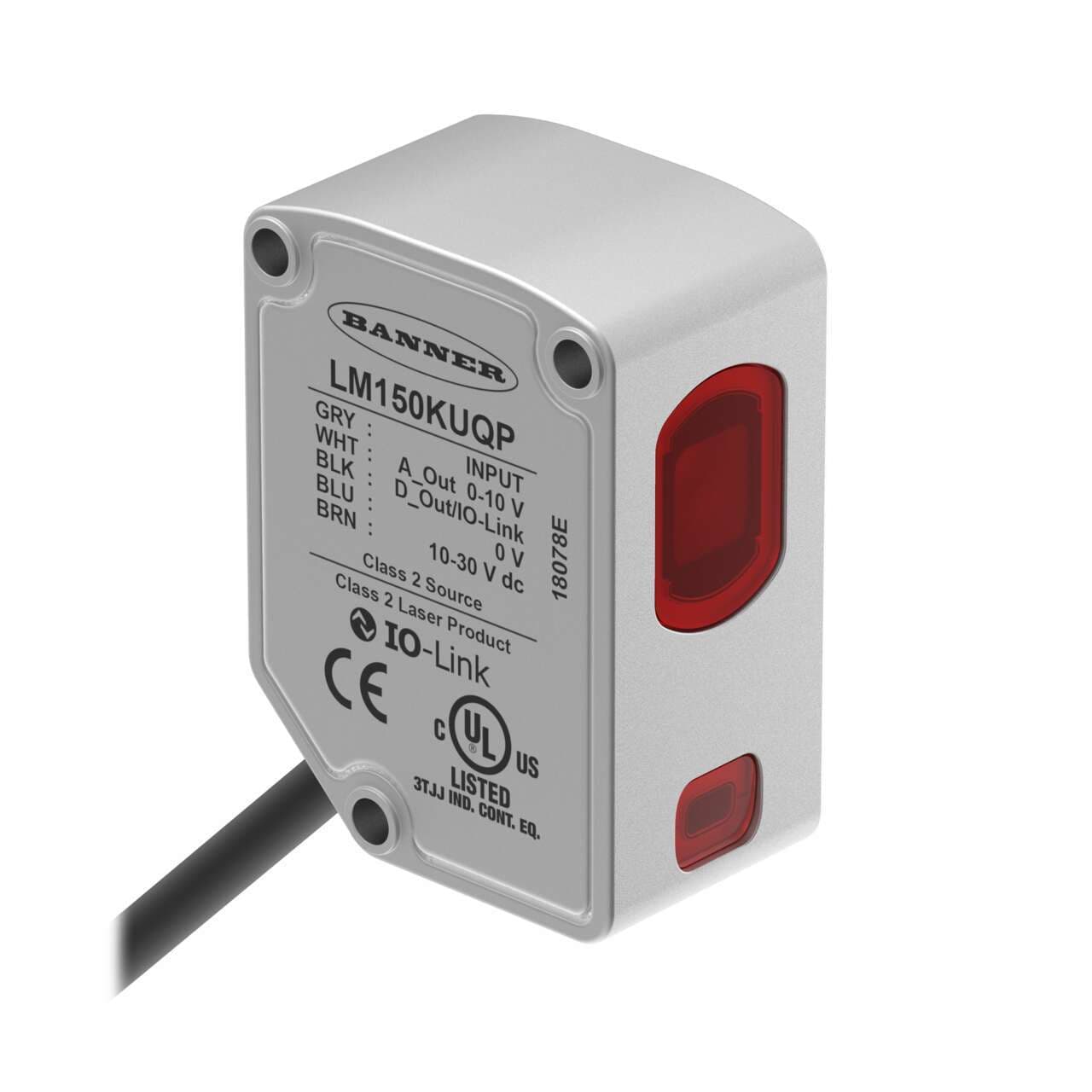

LM150KUQP Banner Vision Accessories

Product Details

• Weight
  201.84844 g
• Country Of Origin
  US
• Profibus
  No
• RS-422
  No
• Wireless
  No
• 1-wire Serial Interface
  No
• SSI
  No
• RS-485
  No
• RS-232
  No
• IO Link
  Yes
• PROFINET
  No
• Common Ethernet Protocol
  No
• Feature: Health/ Marginal Signal Output
  Yes
• Alarm Output (mA)
  50
• Feature: Clear Object Detection
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  < 62 mA at 24 V dc
• Max Ambient Light (Lux)
  10000
• Feature: Chemical Resistant
  Yes
• Feature: Remote Teach
  Yes
Feature: Timing (Hold/Delay)
Yes
Laser Control
Yes
Warm-up Time (minutes)
10
Window Material
Acrylic
Max Op. Relative Humidity Non-Condensing (%)
90 at 55°C
Minimum Response Time (ms)
0.5
Analog Linearity (mm)
50 mm to 120 mm: ± 0.060 mm, 120 mm to 150 mm: ± 0.070 mm
Minimum Window Size (mm)
0.1
Discrete Output Hysteresis (mm)
Automatically adjusted
Spot Size (@ Reference Distance)
0.77 mm x 0.31 mm @ 150 mm
Max Operating Temperature (°C)
55
IP Rating
IP67
Min Operating Temperature (°C)
-10
Output Protection
Protected against continuous overload and short circuit
Storage Temperature (°C)
-35 to 60
Discrete (Switched) Outputs
1 NPN/PNP Configurable
Max Discrete (Switched) Output (mA)
50
Output Saturation Voltage PNP Outputs
< 3 V at 50 mA
Output Saturation Voltage NPN Outputs
< 2.5 V at 50 mA
Analog Current Output Rating
1000 Ω min
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
IEC 60947-5-2 (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
Adjustments
Remote Teach
Temperature Effect (mm/°C)
+/- 0.008 mm/°C
Sensing Beam Wavelength (nm)
655
Delay at Power-up (ms)
2100
Power Supply
10-30 V dc
Minimum Sensing Distance (mm)
50
Quick Disconnect Type
M12 (Euro)
Analog Resolution/Discrete Repeatability
0.004
Max Sensing Distance (mm)
150
Analog Output Configuration
0-10 V
Indicator
LED(s)
Connection
Pigtail QD
Laser Classification
Class 2
Input/Output
Analog & Discrete
Primary Housing Material
Stainless Steel
Sensing Mode (Detailed)
Triangulation
Housing Style
Rectangular
Device Type
Sensor
PC Configurable
No
Power
DC
Cable Length (m)
0.15
Max Measurement Range
>100 mm - <=500 mm
Sensing Beam
Visible Red Laser
Sensing Mode (General)
Proximity
