LEDWRV70XD5-XM Banner Vision Accessories

LEDWRV70XD5-XM on Powermatic Associates
Banner

Part#:LEDWRV70XD5-XM

Manufacturer:Banner

Alt. Part#:97366

Product Lifecycle:Active

Get a quick Quote!

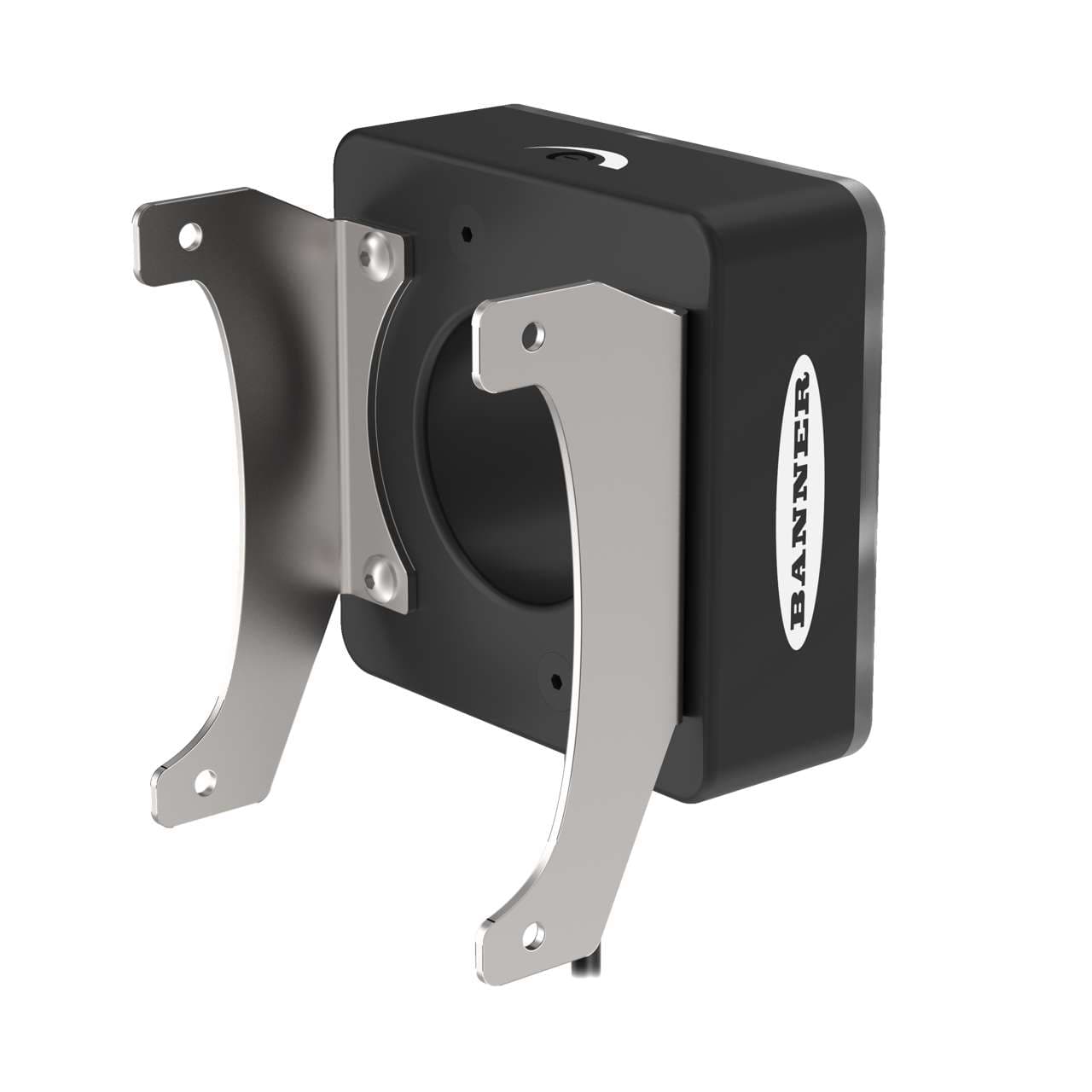

VE Series 70 x 70 mm High Intensity Ring Light; Visible White LED; 24 V dc; Fixed Intensity; 0.3 m (1 ft) Cable with 3-pin male Connector; Connects to VE Smart Camera

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWRV70XD5-XM Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    29.029888 g
  • Country Of Origin
    MX
  • Color Technology
    Standard LED
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V dc
  • Physical Dimensions (LxWxH or DxH mm)
    76.2 x 76.2 63.0
  • Max Current Color (mA)
    350
  • Device Type
    Ring Light
  • Connection Type
    Pigtail QD
  • Number of Input Pins/Conductors
    3
  • Primary Housing Material
    Aluminum
  • QD Type/Cable Length
    300 mm; M8 (Pico)
  • Window Material
    Acrylic
  • Color
    White
  • Housing Style
    Rectangular
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWRV70XD5-XM Description

Banner Engineering LEDWRV70XD5-XM is an illumination unit designed for ring illumination light applications. It features a fixed intensity, high-intensity design suitable for a variety of lighting needs. The unit measures 70x70mm, making it compact and versatile for different setups. It emits visible white light ranging from 5000K to 8300K, ensuring clear visibility in various conditions. The square-shaped light is constructed with an aluminium housing and an acrylic window for durability. It comes pre-wired with a 12" / 300mm pigtail that terminates with a 3-pin Pico-style M8 connector, facilitating easy and secure connections. This model operates on a 24Vdc supply voltage, making it compatible with a wide range of industrial automation systems.

Related documents LEDWRV70XD5-XM Specs

LEDWRV70XD5-XM 192657.pdf

Manufacturer warranty

$424.00

Request a quote, and we will send availability within minutes.

Select Qty:

$424.00

$424.00 each
