LEDWLB435XW6-XQ Banner Vision Accessories

LEDWLB435XW6-XQ on Powermatic Associates
Banner

Part#:LEDWLB435XW6-XQ

Manufacturer:Banner

Alt. Part#:29679

Product Lifecycle:Active

Get a quick Quote!

Vision Light-Linear Back Light 435 mm; Voltage: 24 V dc; Environmental Rating: IP50 Color: White; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWLB435XW6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1133.98 g
  • Country Of Origin
    MX
  • Max Op. Temperature (°C)
    50
  • Feature: Quick Disconnect
    Yes
  • Physical Dimensions (LxWxH or DxH mm)
    478.1 x 59.4 x 32.6
  • Max Current Color (mA)
    1500
  • Supply Voltage
    24 V DC
  • Color Technology
    Standard LED
  • Device Type
    Linear Array Backlight
  • Color
    White
  • Number of Input Pins/Conductors
    5
  • Housing Style
    Linear Strip
  • Connection Type
    Integral QD
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Window Material
    Acrylic
  • Primary Housing Material
    Anodized Aluminum
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWLB435XW6-XQ Description

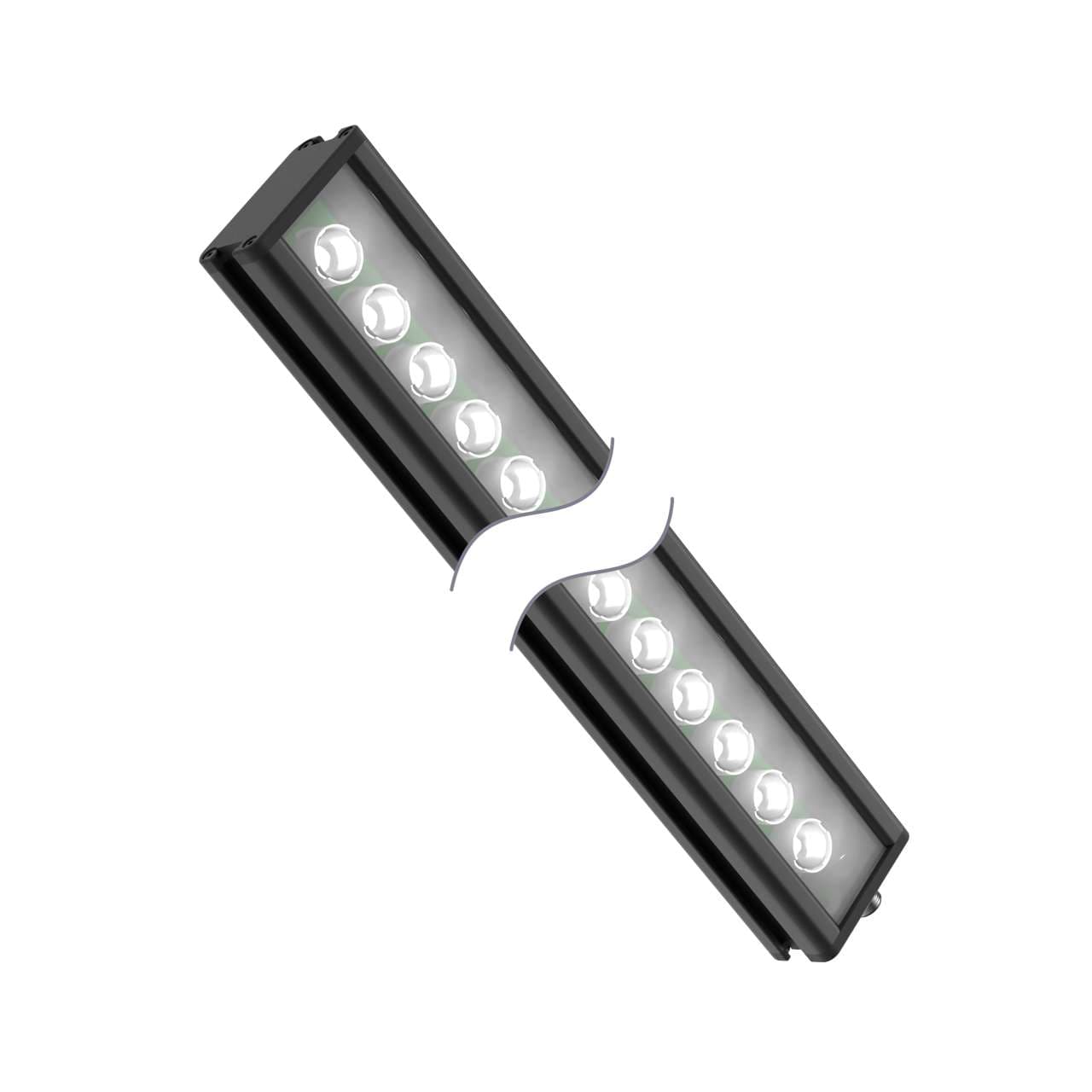

Banner Engineering LEDWLB435XW6-XQ is an illumination unit designed as a linear array illumination backlight. It features a high-intensity design suitable for various applications requiring visible white light. The unit measures 435mm in array length, equivalent to 18 inches or 1.5 feet, and has a rectangular shape. It is constructed with a black anodized aluminum housing and a white acrylic window for durability and optimal light diffusion. This model is pre-equipped with a 5-pin Euro-style M12 connector for easy integration into existing systems. It operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating a level of protection against dust ingress.

Related documents LEDWLB435XW6-XQ Specs

LEDWLB435XW6-XQ 166314.pdf

Manufacturer warranty

$1,323.00

Request a quote, and we will send availability within minutes.

Select Qty:

$1,323.00

$1,323.00 each
