LEDWLA435XD6-PHQ Banner Vision Accessories

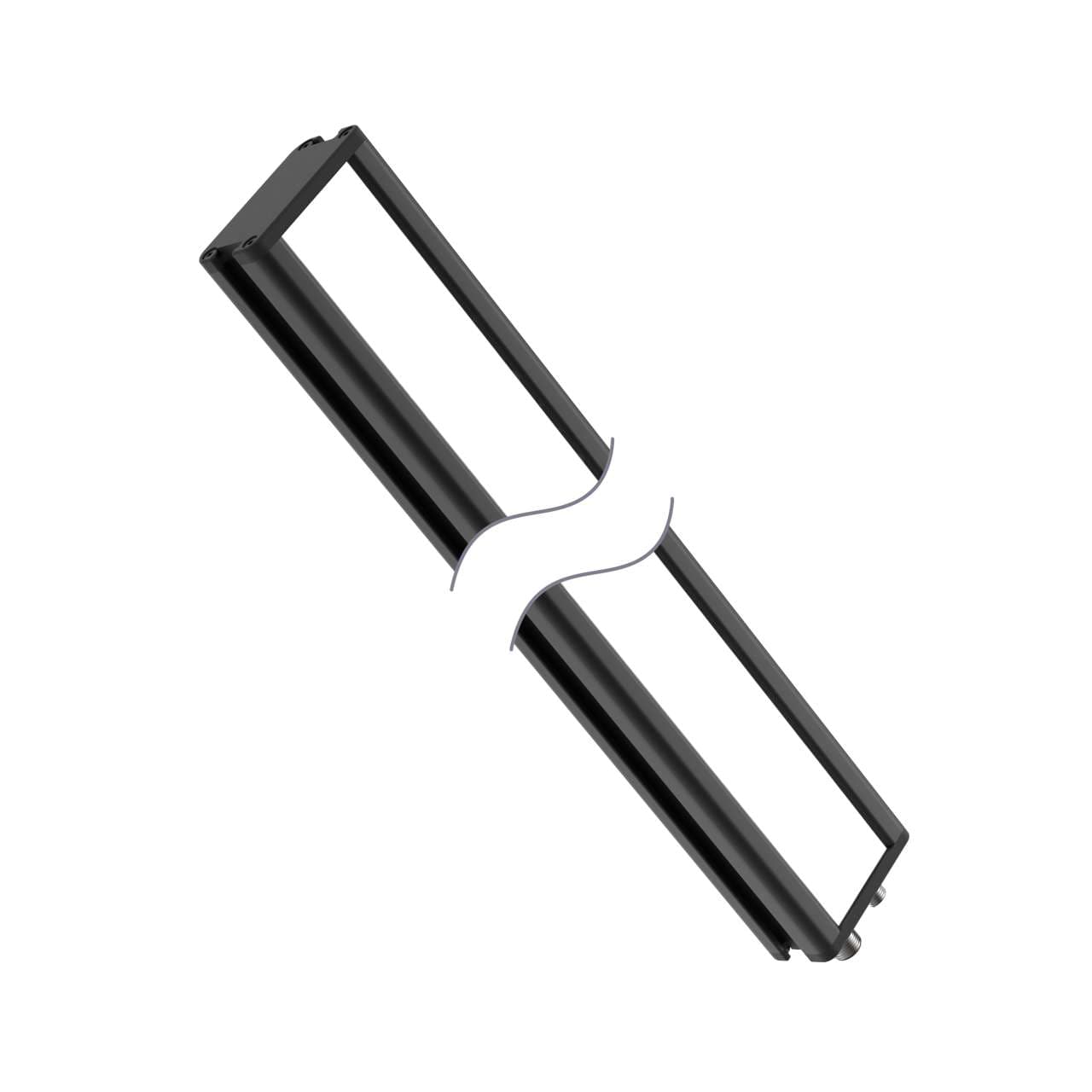

Banner LEDWLA435XD6-PHQ LINEAR ARRAY WHT ACRY DIFF 1.5 ft DIMM ACTIVE HGH
Banner

Part#:LEDWLA435XD6-PHQ

Manufacturer:Banner

Alt. Part#:82229

Product Lifecycle:Active

Get a quick Quote!

LINEAR ARRAY WHT ACRY DIFF 1.5 ft DIMM ACTIVE HGH

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWLA435XD6-PHQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1111.3004 g
  • Country Of Origin
    US
  • Feature: Quick Disconnect
    Yes
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    478.1 x 59.4 x 32.6
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Max Current Color (mA)
    1500
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • Housing Style
    Linear Strip
  • Connection Type
    Integral QD
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Window Material
    Diffuse Acrylic
  • Color
    White
  • Intensity Adjustment
    Potentiometer and Analog
  • Primary Housing Material
    Anodized Aluminum
  • Device Type
    Bar Light
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWLA435XD6-PHQ Description

Banner Engineering LEDWLA435XD6-PHQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming via either a potentiometer or an analog input, and delivers high-intensity visible white light. The unit measures 435mm in array length and is housed in a black anodized aluminum casing with a diffused acrylic window, shaped in a rectangular form. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDWLA435XD6-PHQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50. It includes 1 x digital input (24Vdc; high-polarity) for strobe control and 1 x analog input (0-10Vdc) for intensity control.

Related documents LEDWLA435XD6-PHQ Specs

LEDWLA435XD6-PHQ 150944.pdf
