LEDWLA290XD6-XQ Banner Vision Accessories

LEDWLA290XD6-XQ on Powermatic Associates
Banner

Part#:LEDWLA290XD6-XQ

Manufacturer:Banner

Alt. Part#:13953

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 290 mm Linear Array - IP50; 12 High Intensity White LEDs - 24 V dc; Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWLA290XD6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    798.32192 g
  • Country Of Origin
    MX
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    332.6 x 59.4 x 32.6
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    1000
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Primary Housing Material
    Anodized Aluminum
  • Connection Type
    Integral QD
  • Color
    White
  • Window Material
    Diffuse Acrylic
  • Device Type
    Bar Light
  • Housing Style
    Linear Strip
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWLA290XD6-XQ Description

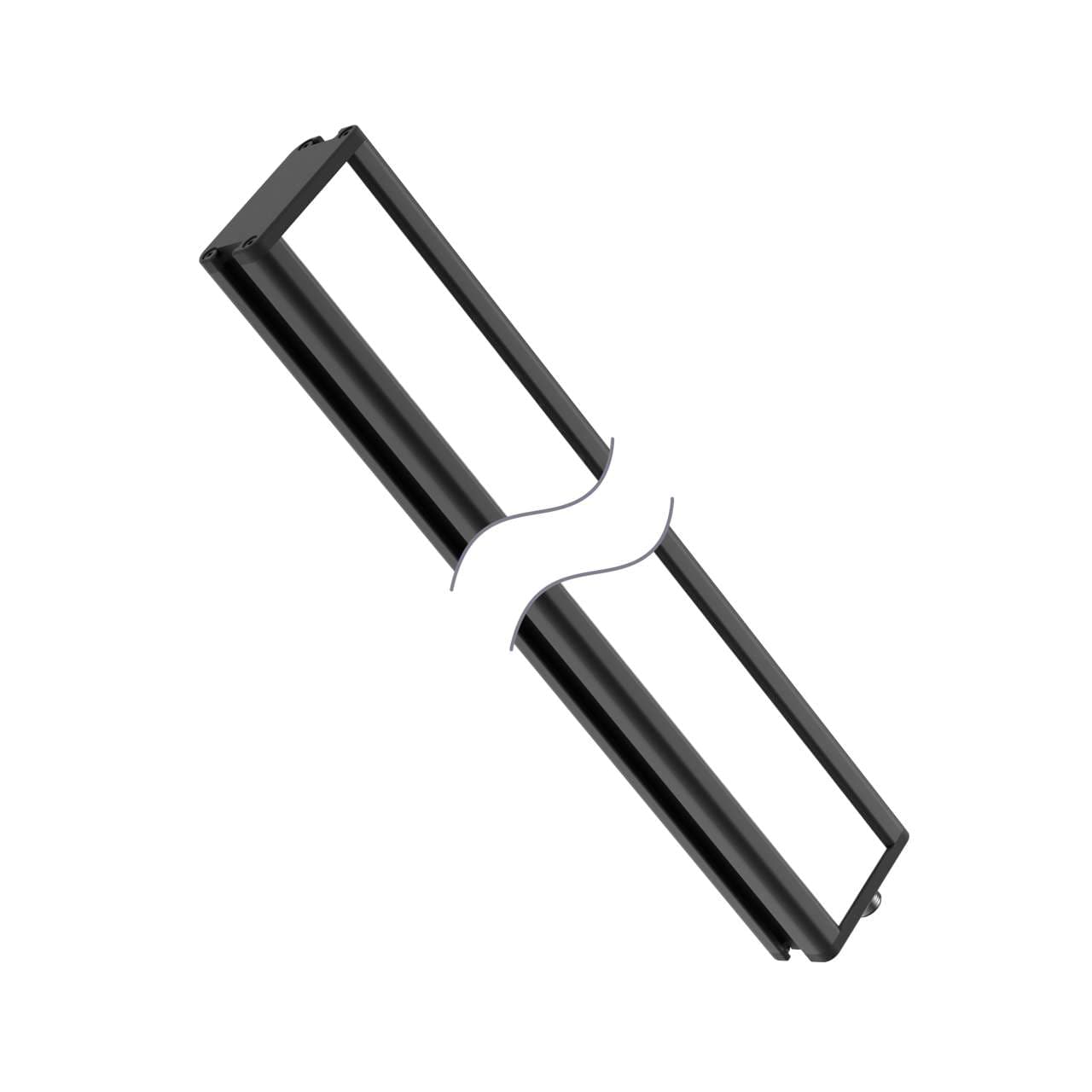

Banner Engineering LEDWLA290XD6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a rectangular shape, measuring 290mm in array length. The unit emits visible white light and is constructed with a black anodized aluminum housing and a diffused acrylic window. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDWLA290XD6-XQ operates on a 24Vdc supply voltage and has an IP50 degree of protection.

Related documents LEDWLA290XD6-XQ Specs

LEDWLA290XD6-XQ 151466.pdf

Manufacturer warranty

$546.00

Request a quote, and we will send availability within minutes.

Select Qty:

$546.00

$546.00 each
