LEDWLA1160XD6-XQ Banner Vision Accessories

LEDWLA1160XD6-XQ on Powermatic Associates
Banner

Part#:LEDWLA1160XD6-XQ

Manufacturer:Banner

Alt. Part#:13972

Product Lifecycle:Active

Get a quick Quote!

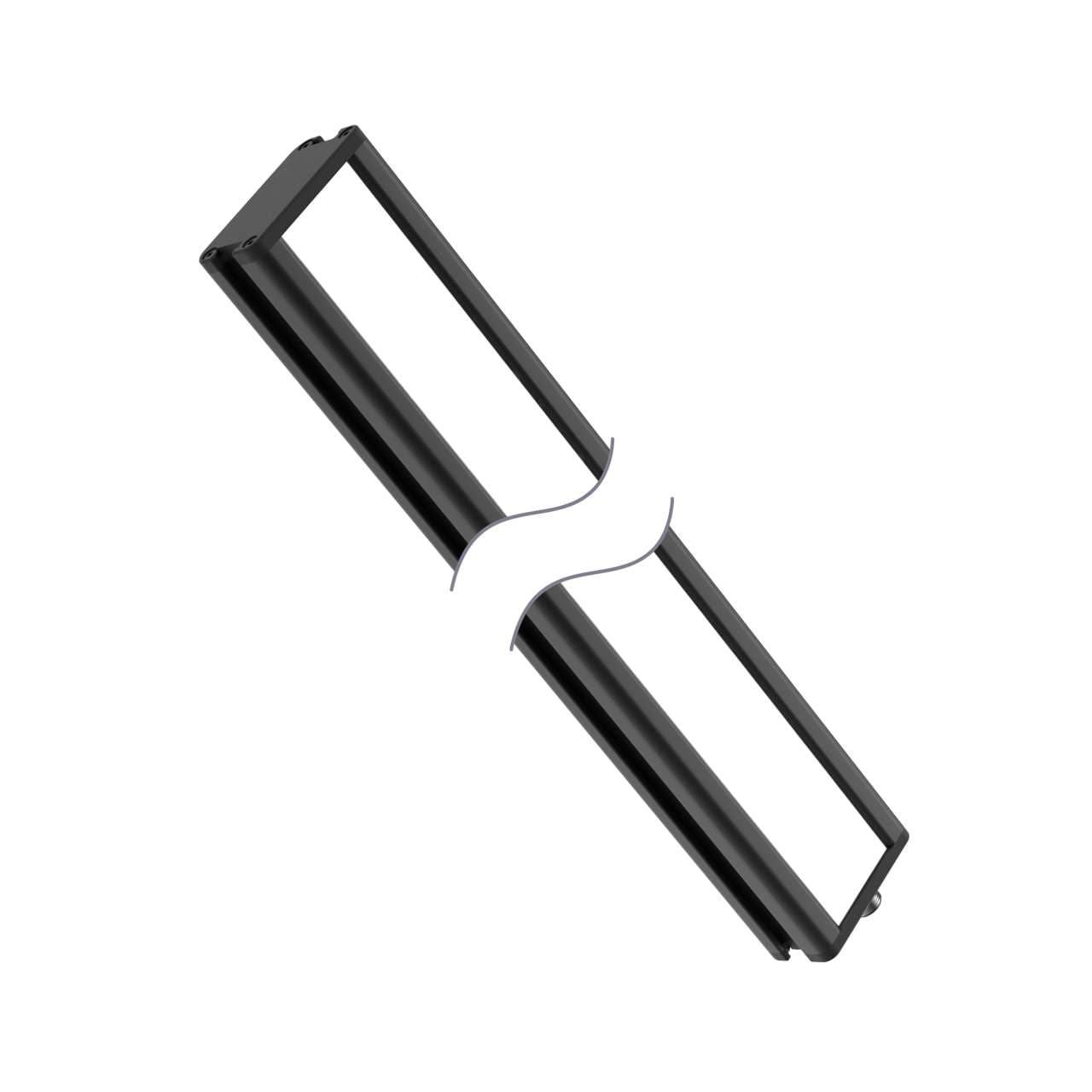

Vision Light - 1160 mm Linear Array - IP50; 48 High Intensity White LEDs - 24 V dc; Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWLA1160XD6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    2494.756 g
  • Country Of Origin
    MX
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Feature: Quick Disconnect
    Yes
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    1205.6 x 59.4 x 32.6
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    4000
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • Color
    White
  • Window Material
    Diffuse Acrylic
  • Connection Type
    Integral QD
  • Housing Style
    Linear Strip
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Primary Housing Material
    Anodized Aluminum
  • Device Type
    Bar Light
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWLA1160XD6-XQ Description

Banner Engineering LEDWLA1160XD6-XQ is a linear array illumination backlight designed for various applications requiring high-intensity visible white light. This unit features a rectangular shape with dimensions of 1160mm (45.6 inches or approximately 4 feet) in array length, making it suitable for large area illumination. It is constructed with a black anodized aluminum housing and a diffused acrylic window to ensure durability and optimal light diffusion. The LEDWLA1160XD6-XQ is pre-equipped with a 5-pin Euro-style M12 connector for easy and secure electrical connection. It operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating that it is protected against dust ingress but not against water.

Related documents LEDWLA1160XD6-XQ Specs

LEDWLA1160XD6-XQ 151466.pdf

Manufacturer warranty

$3,682.00
