LEDWA70XD5-XQ Banner Vision Accessories

LEDWA70XD5-XQ on Powermatic Associates
Banner

Part#:LEDWA70XD5-XQ

Manufacturer:Banner

Alt. Part#:16016

Product Lifecycle:Active

Get a quick Quote!

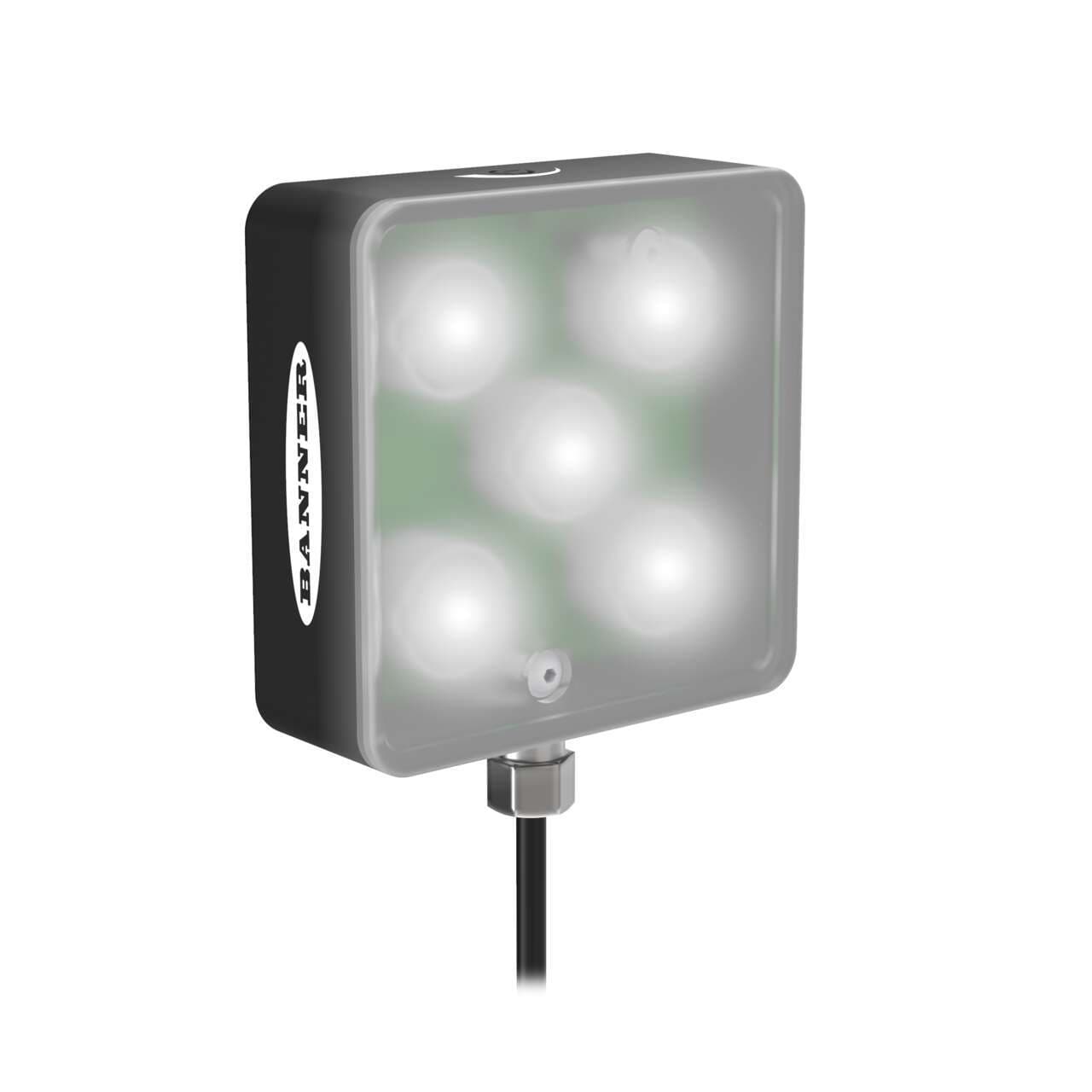

Vision Light - 70 mm Area; 5 High Intensity White LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDWA70XD5-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    27.669112 g
  • Country Of Origin
    MX
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    500
  • Device Type
    Area Light
  • Color
    White
  • Color Technology
    Standard LED
  • Connection Type
    Integral QD
  • Primary Housing Material
    Low-Carbon Steel
  • Window Material
    Diffuse Acrylic
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    76.2 x 76.2 x 29.2
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Number of Input Pins/Conductors
    5
  • Housing Style
    Rectangular
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDWA70XD5-XQ Description

Banner Engineering LEDWA70XD5-XQ is an illumination unit designed for area lighting applications. It features a high-intensity design with dimensions of 70x70mm and produces visible white light. The unit has a square shape and is constructed with a low-carbon steel housing and a diffused acrylic window. It comes pre-wired with a 6-inch (150mm) pigtail that terminates with a 5-pin Euro-style M12 connector. The LEDWA70XD5-XQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50.

Related documents LEDWA70XD5-XQ Specs

LEDWA70XD5-XQ 153956.pdf

Manufacturer warranty

$395.00

Request a quote, and we will send availability within minutes.

Select Qty:

$395.00

$395.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
